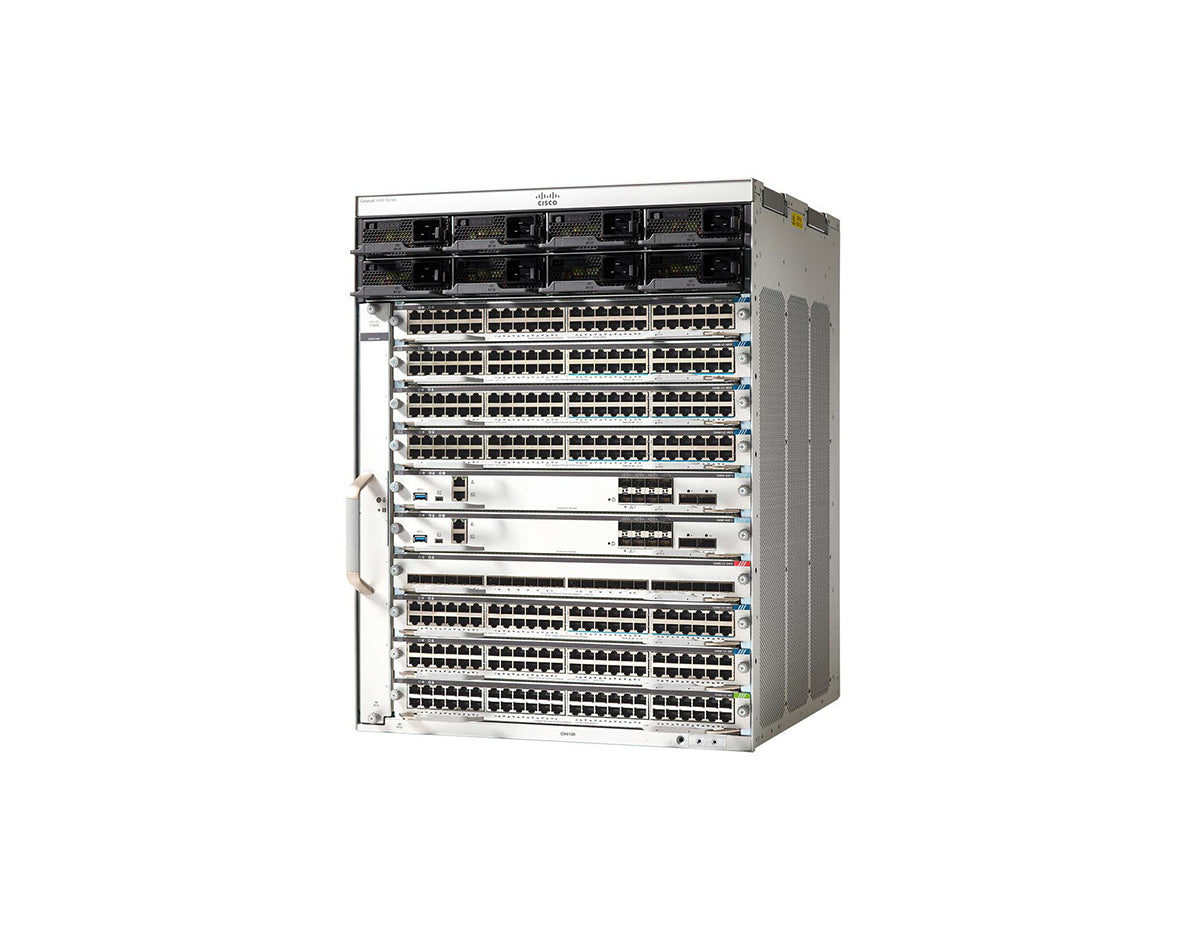

CISCO C9410R CHASSIS
| Model: | C9410R |
| Detail: |
|
| List Price: | |
| Price: | $12,000.00 |
| You Save: | $9,010.00 (43% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
Advanced persistent security threats, the exponential growth of Internet of Things (IoT) devices, mobility everywhere and cloud adoption require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating business service rollout.
The Cisco Digital Network Architecture (DNA) with Software Defined Access (SD-Access) is the network fabric that powers business. Cisco DNA is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities.
Accessories
| Supervisor‚ Modules | |
| C9400-SUP-1‚ (=) | Cisco‚ Catalyst‚ 9400‚ Series‚ Supervisor‚ 1‚ Module |
| C9400-SUP-1/2 | Cisco‚ Catalyst‚ 9400‚ Series‚ Redundant‚ Supervisor‚ 1‚ Module |
| C9400-SUP-1XL‚ (=) | Cisco‚ Catalyst‚ 9400 Series‚ Supervisor‚ 1XL‚ Module |
| C9400-SUP-1XL/2 | Cisco‚ Catalyst‚ 9400‚ Series‚ Redundant‚ Supervisor‚ 1XL‚ Module |
| C9400-SUP-1XL-Y‚ (=) | Cisco‚ Catalyst‚ 9400‚ Series Supervisor‚ 1XL-Y‚ with‚ 25G‚ Module |
| C9400-SUP-1XL-Y/2 | Cisco‚ Catalyst‚ 9400 Series‚ Redundant‚ Supervisor 1XL-Y‚ with‚ 25G‚ Module |
| C9400X-SUP-2(=) | Cisco‚ Catalyst‚ 9400‚ Series‚ Supervisor‚ 2‚ Module |
| C9400X-SUP-2/2 | Cisco‚ Catalyst‚ 9400‚ Series‚ Redundant‚ Supervisor‚ 2‚ Module |
| C9400X-SUP-2XL(=) | Cisco‚ Catalyst‚ 9400 Series‚ Supervisor‚ 2XL‚ Module |
| C9400X-SUP-2XL/2 | Cisco Catalyst 9400 Series Redundant Supervisor 2XL Module |
| Line Cards | |
| C9400-LC-48U (=) | Cisco Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45) |
| C9400-LC-48P (=) | Cisco Catalyst 9400 Series 48-Port POE+ 10/100/1000 (RJ-45) |
| C9400-LC-48T (=) | Cisco Catalyst 9400 Series 48-Port 10/100/1000 (RJ-45) |
| C9400-LC-48UX (=) | Cisco Catalyst 9400 Series 48-Port UPOE w/ 24-port 10G mGig, 24-port 1G RJ-45 |
| C9400-LC-24XS (=) | Cisco Catalyst 9400 Series 24-Port 10 Gigabit Ethernet (SFP+) |
| C9400-LC-24S (=) | Cisco Catalyst 9400 Series 24-Port 1 Gigabit Ethernet (SFP) |
| C9400-LC-48S (=) | Cisco Catalyst 9400 Series 48-Port 1 Gigabit Ethernet (SFP) |
| C9400-LC-48H (=) | Cisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45) |
| C9400-LC-48HN (=) | Cisco Catalyst 9400 Series 48-Port UPOE+ 5G mGig (RJ-45) |
| C9400-LC-48HX (=) | Cisco Catalyst 9400 Series 48-Port UPOE+ 10G mGig (RJ-45) |
| C9400-LC-48XS (=) | Cisco Catalyst 9400 Series 48-Port 10G (SFP+) |
| Power Supplies | |
| C9400-PWR-3200AC (=) | Cisco Catalyst 9400 Series 3200W AC Power Supply |
| C9400-PWR-2100AC (=) | Cisco Catalyst 9400 Series 2100W AC Power Supply |
| C9400-PWR-3200DC (=) | Cisco Catalyst 9400 Series 3200W DC Power Supply |
| Accessories and Kits | |
| C9400-S-BLANK (=) | Cisco Catalyst 9400 Series Slot Blank Cover |
| C9400-PWR-BLANK (=) | Cisco Catalyst 9400 Series Power Supply Blank Cover |
| C9410-FAN= | Cisco Catalyst 9400 Series 10 slot chassis Fan Tray |
| C9407-FAN= | Cisco Catalyst 9400 Series 7 slot chassis Fan Tray |
| C9404-FAN= | Cisco Catalyst 9400 Series 4 slot chassis Fan Tray |
| C9410-ACC-KIT= | Cisco Catalyst 9400 Series 10 slot chassis Accessory Kit |
| C9407-ACC-KIT= | Cisco Catalyst 9400 Series 7 slot chassis Accessory Kit |
| C9404-ACC-KIT= | Cisco Catalyst 9400 Series 4 slot chassis Accessory Kit |
| C9404-RACK-19-KIT= | Cisco Catalyst 9400 Series 4 slot chassis Rack Mount |
| C9407-RACK-19-KIT= | Cisco Catalyst 9400 Series 7 slot chassis Rack Mount |
| C9410-RACK-19-KIT= | Cisco Catalyst 9400 Series 10 slot chassis Rack Mount |
| C9410-SHELF-KIT= | Cisco Catalyst 9400 Series 10 slot chassis Shelf Install Kit |
| C9407-SHELF-KIT= | Cisco Catalyst 9400 Series 7 slot chassis Shelf Install Kit |
| Licenses | |
| C9400-DNA-E | Cisco Catalyst 9400 Cisco DNA Essential Term License |
| C9400-DNA-E-3Y | Cisco Catalyst 9400 Cisco DNA Essential 3 Year License |
| C9400-DNA-E-5Y | Cisco Catalyst 9400 Cisco DNA Essential 5 Year License |
| C9400-DNA-E-7Y | Cisco Catalyst 9400 Cisco DNA Essential 7 Year License |
| C9400-DNA-A | Cisco Catalyst 9400 Cisco DNA Advantage Term License |
| C9400-DNA-A-3Y | Cisco Catalyst 9400 Cisco DNA Advantage 3 Year License |
| C9400-DNA-A-5Y | Cisco Catalyst 9400 Cisco DNA Advantage 5 Year License |
| C9400-DNA-A-7Y | Cisco Catalyst 9400 Cisco DNA Advantage 7 Year License |
| C9400-LIC= | Electronic SW License for C9400 Switches |
| C9400-DNA-E-A | C9400 NW and Cisco DNA Essentials to NW and Cisco DNA Advantage Upgrade |
| C9400-DNA-E-A-3 | C9400 NW and Cisco DNA Essentials and Cisco DNA Advantage Upgrade License (3Y) |
| C9400-DNA-E-A-5 | C9400 NW and Cisco DNA Essentials and Cisco DNA Advantage Upgrade License (5Y) |
| C9400-DNA-E-A-7 | C9400 NW and Cisco DNA Essentials and Cisco DNA Advantage Upgrade License (7Y) |
Specifications
| Specifications | C9410R |
| Maximum Bandwidth scalability per line-card slot | Up to 480 Gbps on all slots (480Gbps per line-card slot when used with C9400X-SUP-2XL, 240Gbps per line card slot when used with C9400X-SUP-2, 80Gbps per line-card slot when used with C9400-SUP-1XL, C9400-SUP-1XL-Y and 80Gbps per line-card slot when used with C9400-SUP-1.) |
| Supervisor Engine maximum bandwidth per slot | |
| Cisco Catalyst 9400 Series Supervisor Engine C9400-SUP-1 | 80 Gbps/slot |
| Cisco Catalyst 9400 Series Supervisor Engine C9400-SUP-1XL | 80 Gbps/slot |
| Cisco Catalyst 9400 Series Supervisor Engine C9400-SUP-1XL- Y | 80 Gbps/slot |
| Cisco Catalyst 9400 Series Supervisor Engine C9400X-SUP-2 | 240 Gbps/slot |
| Cisco Catalyst 9400 Series Supervisor Engine C9400X-SUP-2XL | 480 Gbps/slot |
| Supervisor Engine Software Minimum Requirements | |
| Supervisor Engine C9400-SUP-1 | Cisco IOS XE Software Release 16.6.1 |
| Supervisor Engine C9400-SUP-1XL | Cisco IOS XE Software Release 16.6.2 |
| Supervisor Engine C9400-SUP-1XL-Y | Cisco IOS XE Software Release 16.9.1 |
| Supervisor Engine C9400X-SUP-2 | Cisco IOS XE Software Release 17.7.1 |
| Supervisor Engine C9400X-SUP-2XL | Cisco IOS XE Software Release 17.7.1 |
| Rated MTBF (Hours) | 1,404,840 |
| Regulatory compliance | CE Marking |
| Safety | ‚ UL 60950-1 ‚ CAN/CSA-C222.2 No. 60950-1 ‚ EN 60950-1 ‚ IEC 60950-1 ‚ AS/NZS 60950.1 ‚ IEEE 802.3 |
| EMC | ‚ 47 CFR Part 15 ‚ CISPR22 Class A ‚ KN 32 Class A ‚ EN 300 386 V1.6.1 ‚ EN 55022 Class A ‚ EN 55032 Class A ‚ CISPR 32 Class A ‚ EN61000-3-2 ‚ EN61000-3-3 ‚ ICES-003 Class A ‚ TCVN 7189 Class A ‚ V-3 Class A ‚ CNS13438 Class A ‚ CISPR24 ‚ EN 300 386 ‚ EN55024 ‚ TCVN 7317 ‚ KN35 |
| Industry EMC, safety, and environmental standards | ‚ ‚ NEBS: Operating temperature: -5 to 55C ‚ Relative Humidity: 10-93% ‚ Operating Altitude: up to 1829 m (6000 ft) at 55C ‚ ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations. ‚ SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue) ‚ ETS 300 019-2-1, Class 1.2 Storage ‚ ETS 300 019-2-2, Class 2.3 Transportation ‚ ETS 300 019-2-3, Class 3.2 Stationary ‚ EN50121-4 ‚ EN 300 386 |
| ROHS compliance | ROHS5 |
Properties
| Properties | Cisco Catalyst C9410R Chassis |
| Description | Cisco Catalyst 9400 Series 10 slot chassis |
| Product Family | Catalyst 9400 |
| Product Type | Switch Chassis |
| Total number of slots | 10 |
| Line Card slots | 8 |
| Supervisor Engine slots | 2 (Slots 5 and 6 are reserved for supervisor engines only in Cisco Catalyst C9410R; slots 1-4 and 7-10 are reserved for line cards) |
| Dedicated Supervisor Engine slot numbers | 5 and 6 (Line cards are not supported in the Supervisor slots.) |
| Supervisor Engine Redundancy | Yes |
| Supervisor Engines Supported | C9400X-SUP-2XL, C9400X-SUP-2, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400-SUP-1 |
| Maximum PoE per slot | 4320W (Maximum PoE mentioned is as per the current shipping line card, however chassis is capable ~4800W PoE per slot.) |
| Number of power supply bays | 8 |
| AC input power | Yes |
| Integrated PoE | Yes |
| Power Supplies supported | 3200W AC, 2100W AC, 3200W DC |
| Number of Fan-tray bays | 1 |
| Location of 19-inch rack-mount | Front |
| Maximum port densities | |
| 10/100/1000BASE-T Gigabit (RJ-45) ports | 384 |
| 10/100/1000BASE-T Gigabit (RJ-45) with POE+ ports | 384 |
| 10/100/1000BASE-T Gigabit (RJ-45) with UPOE ports | 384 |
| 802.3 BT Type 4 (90W) Ports | 384 |
| 5G Multigigabit Ethernet ports | 384 |
| 10G Multigigabit Ethernet ports | 384 |
| 1 Gigabit Ethernet ports (SFP) | 384 |
| 10 Gigabit Ethernet ports (SFP+) | 384 |
| Dimensions (H x W x D) | 22.61 x 17.30 x 16.30 in. (57.43 x 43.94 x 41.40 cm) |
| Rack Units (RU) | 13 RU |
| Chassis weight (with fan tray) | 65.0 lb (29.48 kg) |
| Mounting | 19-in. rack compatible (19-in. rack and cable guide hardware included) |
