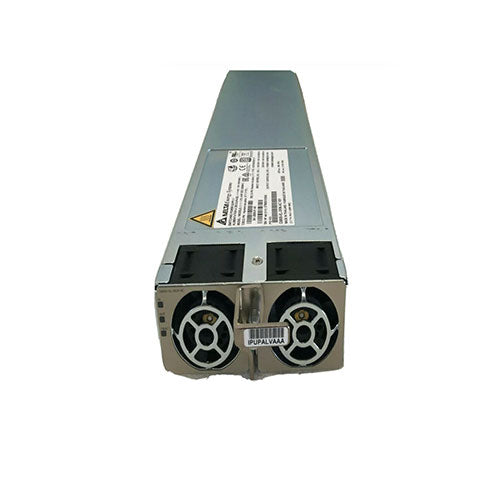

Cisco C6800-XL-3KW-AC Power Supply
Redundant (plug-in module), 3000 Watt, C6807-XL, C6807-XL-S6T-BUN, AC 100-240 V, for P/N: C6807-XL, C6807-XL-RF
$4,897.14
$365.00
Instant Savings
$4,532.14
C6800-XL-3KW-AC
| Product Name | Cisco C6800-XL-3KW-AC Power Supply |
| Product Description | 3000 Watt AC-input power supply module designed for Cisco Catalyst 6807-XL Series switches, supporting redundant configurations. |
| Compatibility | Cisco Catalyst 6807-XL, C6807-XL-S6T-BUN, C6807-XL-RF |
| Power Output Capacity | 1400 W maximum at 100 to 120 VAC, 3000 W maximum at 200 to 240 VAC |
| Input Voltage Range | Low-line: 90-132 VAC, High-line: 170-264 VAC |
| Input Current | 16 A at 240 VAC (3000 W output), 16 A at 120 VAC (1300 W output) |
| Frequency | 50/60 Hz nominal (±3% for full range) |
| Redundancy | Supports redundant configuration with hot-swappable design |
| Installation | Plug-in module for easy replacement |
| Device Type | Power supply module with power factor correction |
| AC Input Type | Autoranging, fully isolated inputs for out-of-phase configurations |
| Branch Circuit Requirement | North America: 20 A dedicated fused circuit; International: Circuits sized to local and national codes |
| AC Input Configuration | Isolated input allowing multiple out-of-phase connections within chassis |
| Output Capacity | 1400 W max at 100-120 VAC, 3000 W max at 200-240 VAC |
| Output Current (100-120 VAC) | 25.0 A at +3.3 V, 5 A at +5 V, 12 A at +12 V, 27.89 A at +42 V |
| Output Current (200-240 VAC) | 25.0 A at +3.3 V |
| Cooling System | Integrated fan cooling for thermal management |
| Certifications | UL, IEC, CE |
