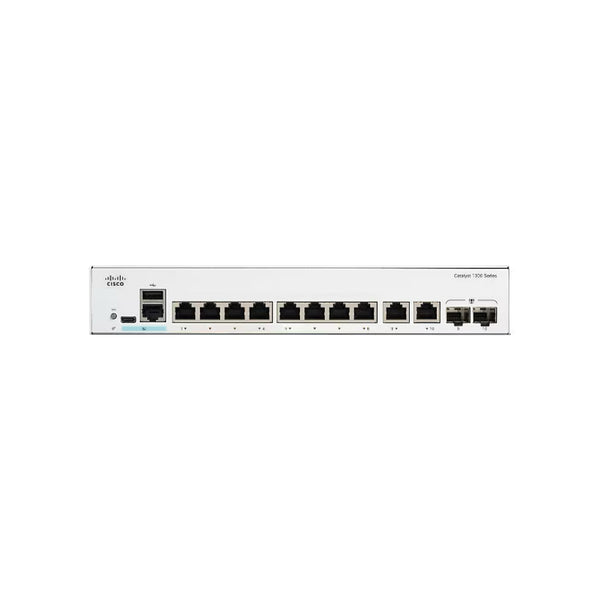

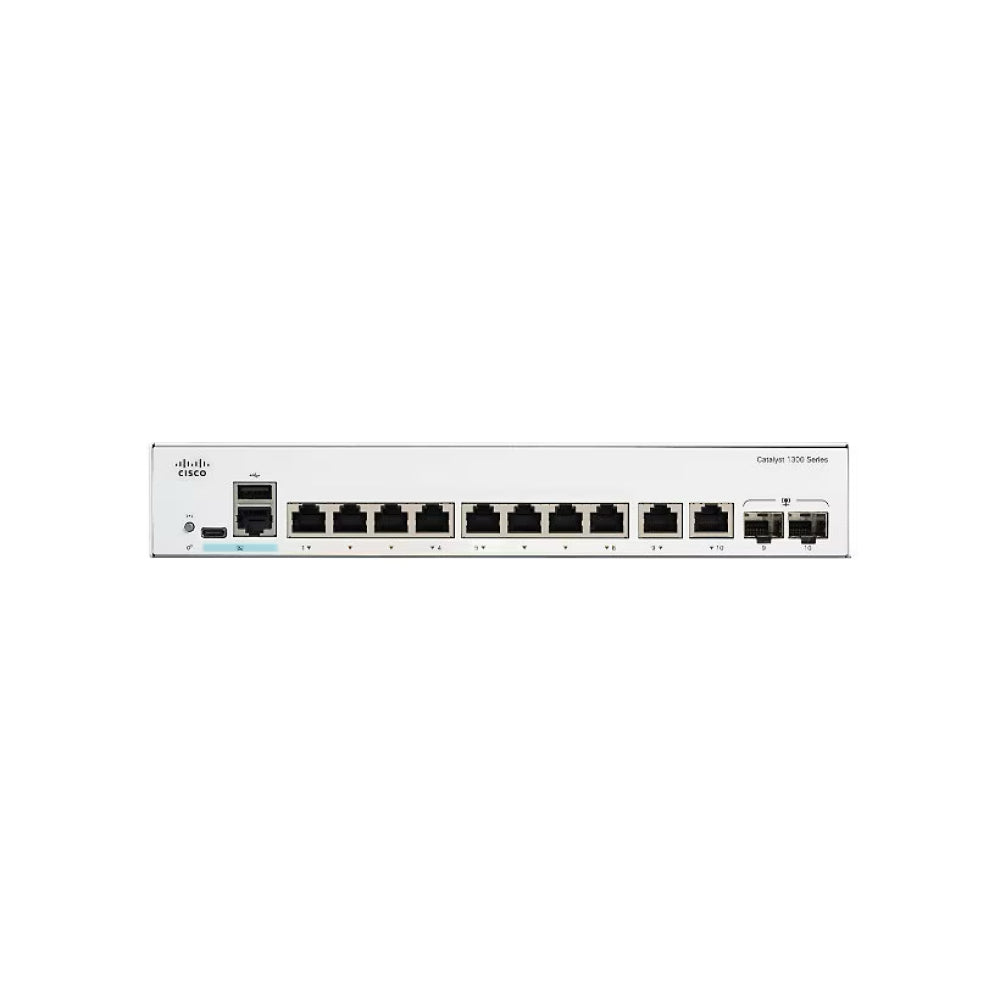

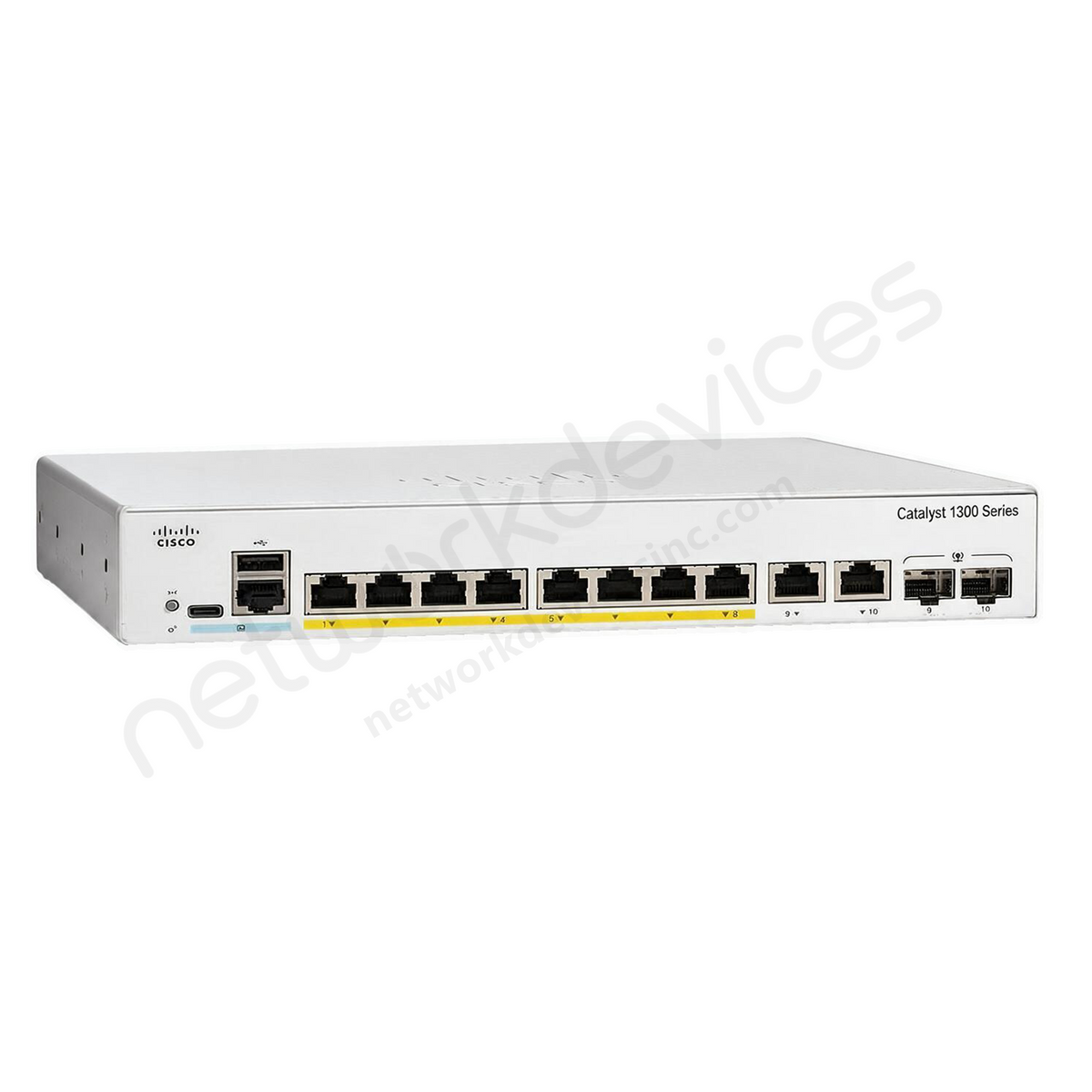

Cisco Catalyst C1300-8T-E-2G 8-Port Layer 3 Managed Data Switch, 2x1G SFP/RJ-45 Combo
The Cisco Catalyst C1300-8T-E-2G is an 8-port Layer 3 managed switch with 2x 1G SFP and RJ-45 combo uplinks. It supports dynamic Layer 3 routing with up to 990 routes.
Overview
The Cisco Catalyst 1300 Series is a line of fixed, managed, enterprise-class Layer 3 switches for small and medium-sized business and branch offices, and Cisco positions it as the next-generation successor to the Cisco Business CBS350 Series managed switches. The C1300-8T-E-2G is the 8-port data-only configuration with two 1G copper/SFP combo uplinks, running a customized Linux-based operating system rather than Cisco IOS. Its Layer 3 feature set covers static routing and RIP v2 for inter-VLAN routing and network segmentation into workgroups; the more advanced OSPF dynamic routing is offered only on the Catalyst 1300X models, not on this switch. The switch runs fanless for quiet, low-power operation in wiring closets and open-plan spaces such as retail floors and classrooms.
Technical Details

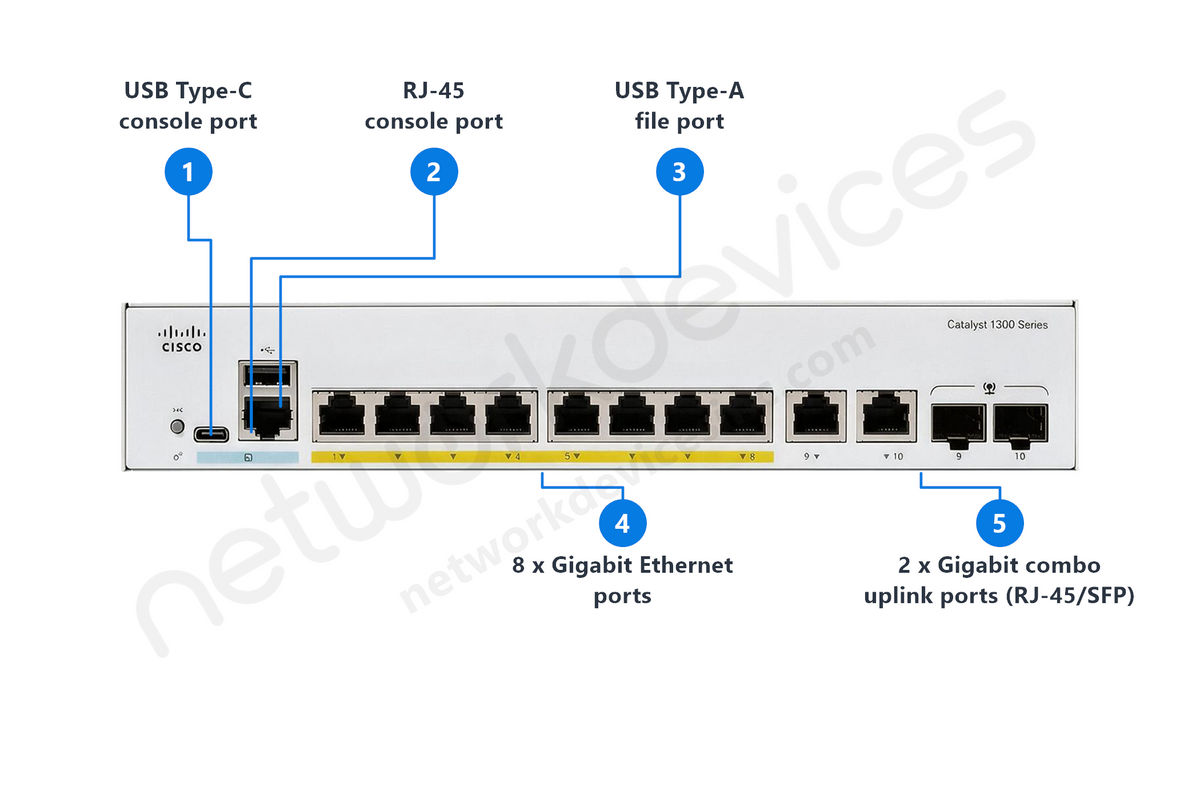

The Cisco Catalyst C1300-8T-E-2G is a Layer 3 managed compact switch with 8 Gigabit Ethernet (10/100/1000) data-only ports and two 1G copper/SFP combo uplinks, running a customized Linux-based operating system. Switching capacity is 20 Gbps and forwarding rate is 14.88 Mpps. It carries no Power over Ethernet, so all 8 access ports are data-only. Layer 3 routing covers static routing and RIP v2. It provides wired access-layer connectivity for non-powered endpoints such as desktops, printers, and wired IoT devices in small business and branch networks.
Small Business
Branch Office
Best For
The Cisco Catalyst C1300-8T-E-2G suits small business and branch access closets, open-plan offices, and retail or classroom spaces that connect non-powered endpoints such as desktops, printers, and wired IoT devices and need routed access with static routing and RIP v2. The two 1G copper/SFP combo uplinks aggregate traffic back to the distribution layer over fiber or copper, and management through the Cisco Business Dashboard, mobile app, web UI, and CLI keeps setup simple for lean IT teams.
Not suitable if:
- you need to power devices such as wireless access points, IP phones, or IP cameras, since this is a data-only switch with no Power over Ethernet
- you need 10G uplinks, since this model has fixed 1G copper/SFP combo uplinks
- you need switch stacking, since this model does not support stacking (Front Panel Stacking is available only on specific Catalyst 1300 models explicitly listed by Cisco)
- you need OSPF or other advanced dynamic routing, since this model supports only static routing and RIP v2
- you need multigigabit (mGig) access ports, since the access ports are 1 Gigabit Ethernet
- you need more access ports for a larger site, since this is an 8-port model
C1300-8T-E-2G Specifications
| Class & Licensing | |
|---|---|
| License Tier | None |
| License Detail / MTBF | None; MTBF 2,865,360 hours |
| Ports & Uplinks | |
| Port Speed | Gigabit |
| Uplink Configuration | 2x 1G copper/SFP combo |
| Performance & Scale | |
| Stacking | No |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| MAC Table | 16000 |
| IPv4 Routes | Up to 990 (Dynamic + Static) IPv4 routes; up to 128 IP interfaces |
| Hardware & Memory | |
| DRAM | 1 GB DDR4 |
| Flash | 1GB SLC |
| Power & Thermal | |
| Power Input / PSU | 100-240V 50-60 Hz, external power adapter |
| Redundant PSU | No |
| Cooling | Fanless |
| Physical & Environmental | |
| Dimensions (H x W x D) | 1.73 x 10.55 x 7.28 in (43.94 x 268 x 185 mm) |
| Weight | 3.06 lbs (1.39 kg) |
| Operating Temperature | -5°C to 50°C (23°F to 122°F) |
| Operating System | Linux |
| Software | |
| Routing Protocols | Static routing; RIP v2 |
Part Number Decode
- C1300 — C1300 is the platform prefix, identifying the Cisco Catalyst 1300 Series of fixed, managed Layer 3 switches.
- 8 — 8 is the port count, indicating 8 Gigabit Ethernet access ports.
- T — T is the port-type marker, indicating data-only ports with no Power over Ethernet.
- E — E is the power marker, indicating the external-power-supply, fanless variant.
- 2G — 2G is the uplink code, indicating two fixed 1G copper/SFP combo uplinks.
C1300-8T-E-2G Accessories
| CAB-CONSOLE-RJ45 | Console cable, 6 ft, RJ-45 |
| CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C= | USB-C console cable |
| PWR-CLP | Power cable restraining clip |
| RCKMNT-CMPCT-1K= | 19″ rack-mount kit for compact models |
| PWRADPT-WM-18-xx / PWRADPT-WM-18-NA= | 18W external power adapter |
FAQ
Does the Cisco Catalyst C1300-8T-E-2G support PoE?
No. The Cisco Catalyst C1300-8T-E-2G is a data-only switch, and all 8 Gigabit Ethernet access ports carry no Power over Ethernet, so it cannot power devices such as wireless access points, IP phones, or IP cameras. If you need PoE+ on the access ports, the Cisco Catalyst C1300-8P-E-2G provides a 67W PoE+ budget and the C1300-8FP-2G provides a higher 120W Full PoE+ budget, both with the same 8-port access-port and uplink layout.
What transceivers do the uplinks on the C1300-8T-E-2G use?
The Cisco Catalyst C1300-8T-E-2G has two fixed 1G copper/SFP combo uplink ports, each of which accepts either a 1000BASE-T RJ-45 connection or a 1G SFP module. These are 1-Gigabit slots and do not accept 10G SFP+ optics; 10G-capable uplinks and ports are available on selected Catalyst 1300 models. Specific transceiver compatibility should be verified against the supported-SFP module list in the Cisco Catalyst 1300 Series data sheet and Cisco's transceiver compatibility matrix. Transceivers are sold separately.
Can the Cisco Catalyst C1300-8T-E-2G be stacked?
No. The Cisco Catalyst C1300-8T-E-2G does not support stacking. Front Panel Stacking is available only on specific Catalyst 1300 models explicitly listed by Cisco, and all stack members must belong to the same stacking family. Multiple C1300-8T-E-2G units can still be deployed and managed centrally through the Cisco Business Dashboard.
What is the difference between the C1300-8T-E-2G and the C1300-8P-E-2G?
Both are 8-port Gigabit Ethernet Layer 3 switches with two 1G copper/SFP combo uplinks and the same customized Linux-based operating system; they differ in Power over Ethernet. The C1300-8T-E-2G is data-only with no PoE, while the C1300-8P-E-2G adds a 67W PoE+ budget for powering access points, phones, and cameras. For higher PoE capacity, the C1300-8FP-2G provides a 120W Full PoE+ budget.
What Layer 3 routing does the Cisco Catalyst C1300-8T-E-2G support?
The Cisco Catalyst C1300-8T-E-2G is a Layer 3 switch that supports static routing and RIP v2 dynamic routing, plus inter-VLAN routing across up to 128 IP interfaces and up to 990 IPv4 routes. It does not support OSPF, BGP, or EIGRP; OSPF is added only on the Catalyst 1300X models. This routed-access feature set lets the switch segment a small or branch network into VLAN workgroups and route between them without a separate router handling internal traffic.
Does the Cisco Catalyst C1300-8T-E-2G replace the Cisco Business CBS350?
Yes. Cisco positions the Catalyst 1300 Series as the next-generation successor to the Cisco Business CBS350 Series managed switches, which Cisco moved to End-of-Sale in 2024. The Cisco Catalyst C1300-8T-E-2G is a Layer 3 replacement for a comparable CBS350 managed model, carrying forward managed Layer 3 switching, the same access-port and uplink layout, and Cisco Business Dashboard and mobile-app management on a customized Linux-based operating system.
Is the Cisco Catalyst C1300-8T-E-2G end of life?
No. Cisco has not published an End-of-Sale or End-of-Life notice for the Cisco Catalyst 1300 Series, and the Cisco Catalyst C1300-8T-E-2G remains a current, actively shipping product. The Catalyst 1300 Series is Cisco's current small-business and branch managed switching line and carries a Cisco limited lifetime hardware warranty with return-to-factory replacement. Buyers should re-verify status on Cisco's official End-of-Life and End-of-Sale notices page before purchase.
What condition is the C1300-8T-E-2G sold in, and what warranty applies?
The Cisco Catalyst C1300-8T-E-2G is sold new and factory-sealed. It is covered by a Network Devices Inc. one-year warranty and a 30-day return policy.
