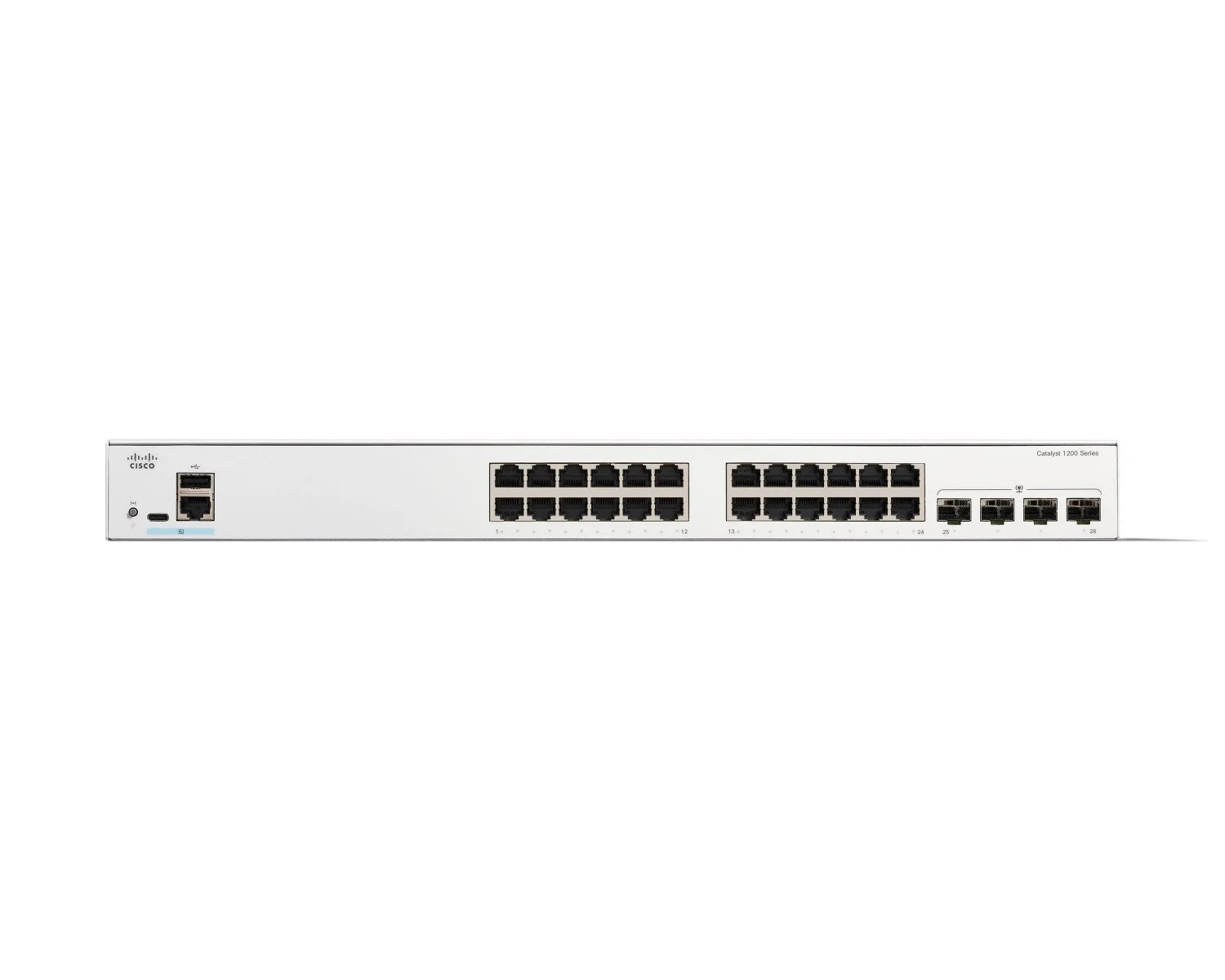

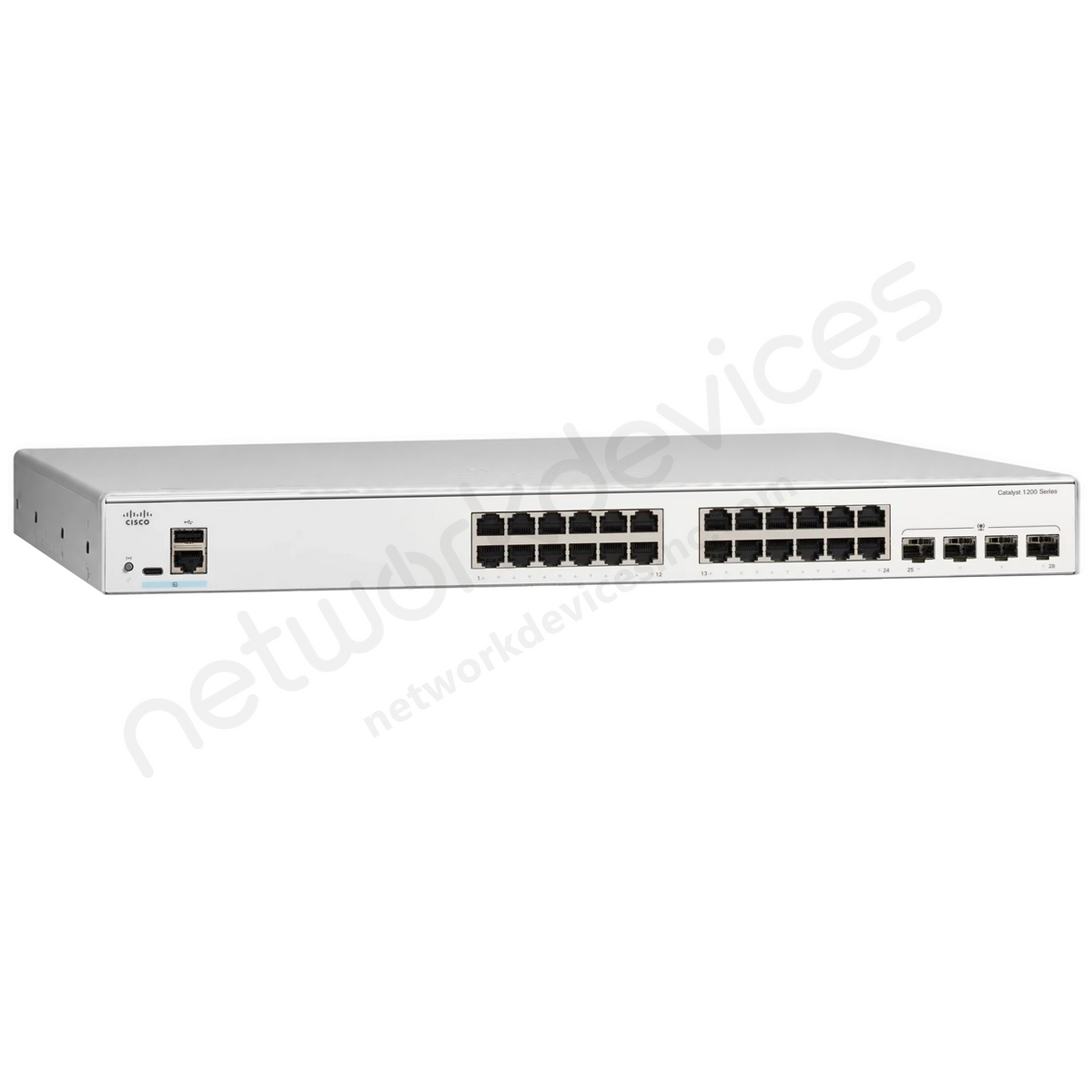

Cisco Catalyst C1200-24T-4G 24-Port Managed Data Switch, 4x1G SFP
The Cisco Catalyst C1200-24T-4G is a 24-port Layer 2 managed switch with 4x 1G SFP uplinks. It supports Layer 3 static routing with up to 32 static routes.
Overview
The Cisco Catalyst 1200 Series is a line of fixed, managed Layer 2+ Gigabit Ethernet switches for small and medium-sized business, running a customized Linux-based operating system and managed through the Cisco Business Dashboard, the Cisco Business mobile app, an on-box web UI, and a CLI. It adds Layer 3 static routing beyond what an unmanaged or consumer-grade switch offers, letting you segment a network into separate workgroups. The C1200-24T-4G is the 24-port data-only configuration with four fixed 1G SFP uplinks, giving a full wiring-closet port count with fiber or copper aggregation for sites that connect only non-powered endpoints. Cisco positions the Catalyst 1200 Series as the next-generation successor to the Cisco Business CBS250 Series smart switches.
Technical Details

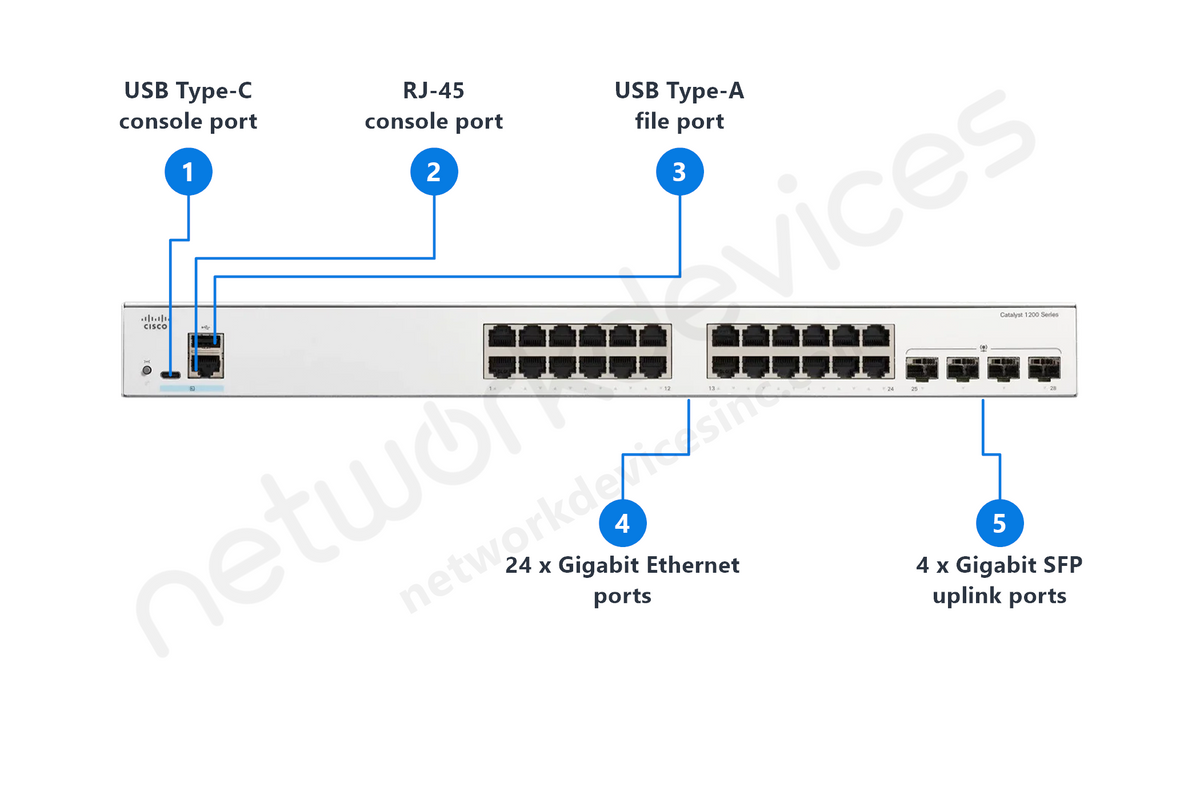

The Cisco Catalyst C1200-24T-4G is a Layer 2+ managed 1U rackmount switch with 24 Gigabit Ethernet (10/100/1000) data-only ports and four fixed 1G SFP uplinks, running a customized Linux-based operating system. Switching capacity is 56 Gbps and forwarding rate is 41.67 Mpps. It carries no Power over Ethernet, so all 24 access ports are data-only. Layer 3 static routing supports up to 32 static routes and 16 IP interfaces, with no dynamic routing. It provides wired access-layer connectivity for non-powered endpoints such as desktops, printers, and wired IoT devices in small-business and branch networks.
Small Business
Education
Best For
The C1200-24T-4G suits small-business and branch wiring closets that connect non-powered endpoints such as desktops, printers, and wired IoT devices at full 24-port density and want managed control with Layer 3 static routing. Its four 1G SFP uplinks provide fiber or copper aggregation back to the distribution layer, more uplink capacity than the two-uplink 8- and 16-port models.
Not suitable if:
- you need to power devices such as wireless access points, IP phones, or IP cameras, since this is a data-only switch with no Power over Ethernet
- you need 10G uplinks, since this model has fixed 1G SFP uplinks
- you need dynamic routing protocols such as RIP or OSPF, since the Catalyst 1200 provides Layer 3 static routing only
C1200-24T-4G Specifications
| Class & Licensing | |
|---|---|
| License Tier | None |
| License Detail / MTBF | No license tiers; MTBF 2,026,793 hours |
| Ports & Uplinks | |
| Port Speed | Gigabit |
| Uplink Configuration | 4x 1G SFP |
| Performance & Scale | |
| Stacking | No |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.67 Mpps |
| MAC Table | 8000 |
| Hardware & Memory | |
| DRAM | 1 GB DDR4 |
| Flash | 512 MB |
| Power & Thermal | |
| Power Input / PSU | 100 to 240V AC, 50 to 60 Hz, internal, universal |
| Redundant PSU | No |
| Cooling | Fanless |
| Physical & Environmental | |
| Dimensions (H x W x D) | 1.73 x 17.5 x 9.45 in (44 x 445 x 240 mm) |
| Weight | 5.80 lbs (2.63 kg) |
| Operating Temperature | -5 to 50°C (23 to 122°F) |
| Operating System | Linux |
Part Number Decode
- C1200 — C1200 is the platform prefix, identifying the Cisco Catalyst 1200 Series of managed Layer 2+ switches.
- 24 — 24 is the port count, indicating 24 access ports.
- T — T is the port-type marker, indicating data-only Gigabit ports with no Power over Ethernet.
- 4G — 4G is the uplink code, indicating four fixed 1G SFP uplinks.
C1200-24T-4G Accessories
| CAB-CONSOLE-RJ45 | Console cable, 6 ft, RJ-45 |
| CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C= | USB-C console cable |
| PWR-CLP | Power cable restraining clip |
| RCKMNT-1RU-1K= | 19″ rack-mount kit for 24/48-port models |
FAQ
Does the Cisco Catalyst C1200-24T-4G support PoE?
No. The Cisco Catalyst C1200-24T-4G is a data-only switch, and all 24 Gigabit Ethernet access ports carry no Power over Ethernet. It cannot power devices such as wireless access points, IP phones, or IP cameras. If you need PoE+ on the access ports, the Cisco Catalyst C1200-24P-4G is the equivalent 24-port PoE+ model with the same four 1G SFP uplinks and a 195 W PoE power budget.
What transceivers do the uplinks on the C1200-24T-4G use?
The Cisco Catalyst C1200-24T-4G has four fixed 1G SFP uplink ports. These are 1-Gigabit SFP slots and do not support 10G SFP+ optics; the C1200-24T-4X is the equivalent model with 10G SFP+ uplinks. Specific transceiver compatibility should be verified against the supported-SFP module list in the Cisco Catalyst 1200 Series data sheet and Cisco's transceiver compatibility matrix. Transceivers are sold separately.
Does the Cisco Catalyst C1200-24T-4G do Layer 3 routing?
The Cisco Catalyst C1200-24T-4G is a Layer 2+ switch. It performs Layer 2 switching plus Layer 3 static routing, supporting up to 32 static routes and 16 IP interfaces so you can segment the network into separate subnets or workgroups. It does not run dynamic routing protocols such as RIP or OSPF. For dynamic routing, the Cisco Catalyst 1300 Series adds RIP v2.
Can the Cisco Catalyst C1200-24T-4G be stacked?
No. The Cisco Catalyst 1200 Series does not support switch stacking. Each Catalyst 1200 is managed as an individual unit, and units can optionally be grouped in the Cisco Business Dashboard for centralized monitoring, but they do not form a data-plane stack. The Cisco Catalyst 1300 Series is the line that adds Front Panel Stacking.
What is the difference between the C1200-24T-4G and the C1200-24P-4G?
Both are 24-port Layer 2+ switches with four fixed 1G SFP uplinks, and they differ in Power over Ethernet. The C1200-24T-4G is data-only and carries no PoE. The C1200-24P-4G adds IEEE 802.3at PoE+ with a 195 W power budget across the access ports, so it can power wireless access points, IP phones, and IP cameras.
Does the Cisco Catalyst 1200 replace the Cisco Business CBS250?
Yes. The Catalyst 1200 is Cisco's recommended successor to the end-of-sale Cisco Business CBS250 Series, so migrating to the C1200-24T-4G moves you to Cisco's current-generation switching platform while retaining core features such as VLANs, ACLs, and Layer 3 static routing.
Is the Cisco Catalyst C1200-24T-4G end of life?
No. Cisco has not published an End-of-Sale or End-of-Life notice for the Cisco Catalyst 1200 Series, so the C1200-24T-4G remains a current, actively shipping product. If that status changes, Cisco publishes the notice on its official End-of-Life and End-of-Sale pages.
What condition is the C1200-24T-4G sold in, and what warranty applies?
The Cisco Catalyst C1200-24T-4G is sold new and factory-sealed. It is covered by a Network Devices Inc. one-year warranty and a 30-day return policy.
