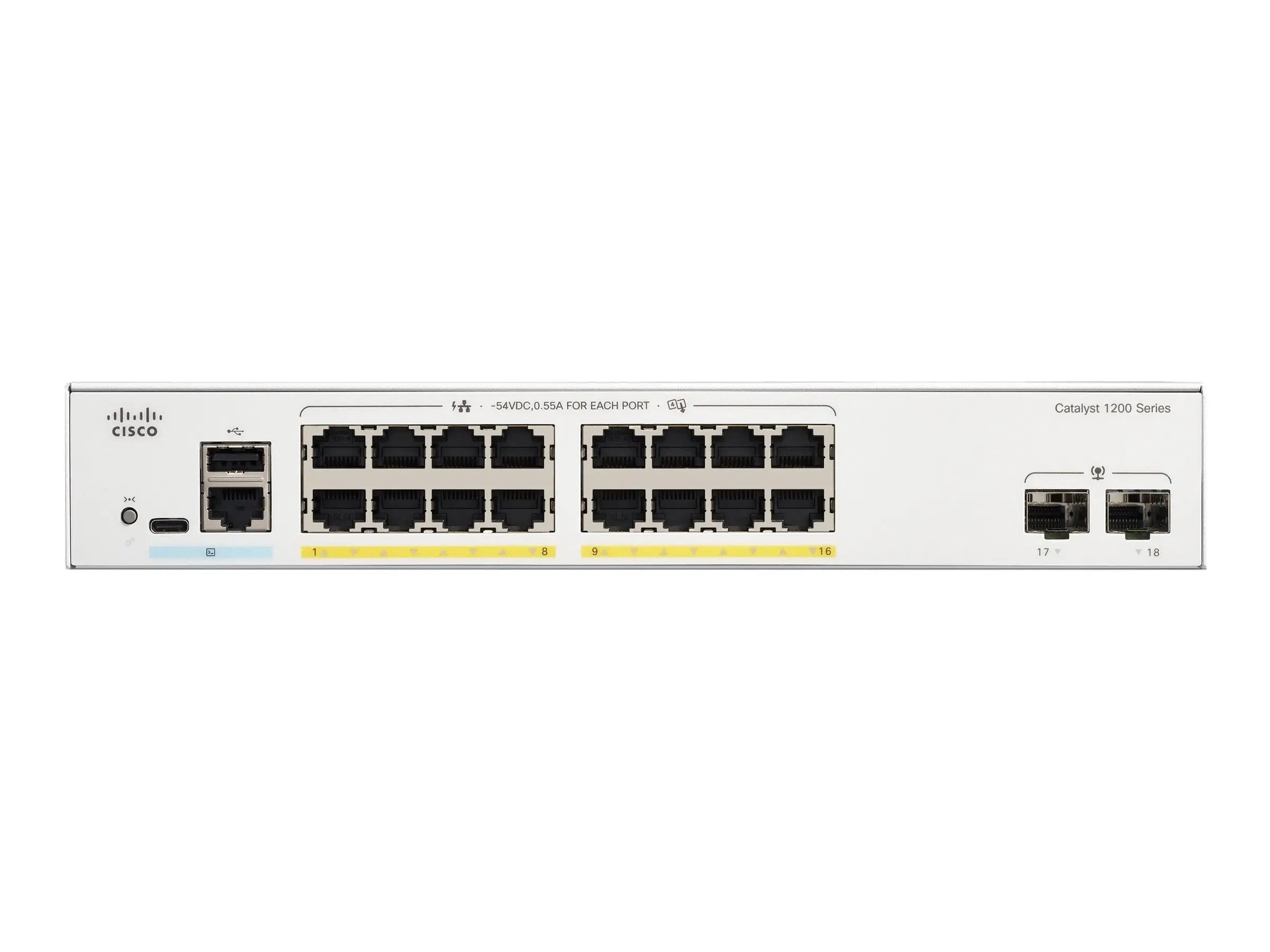

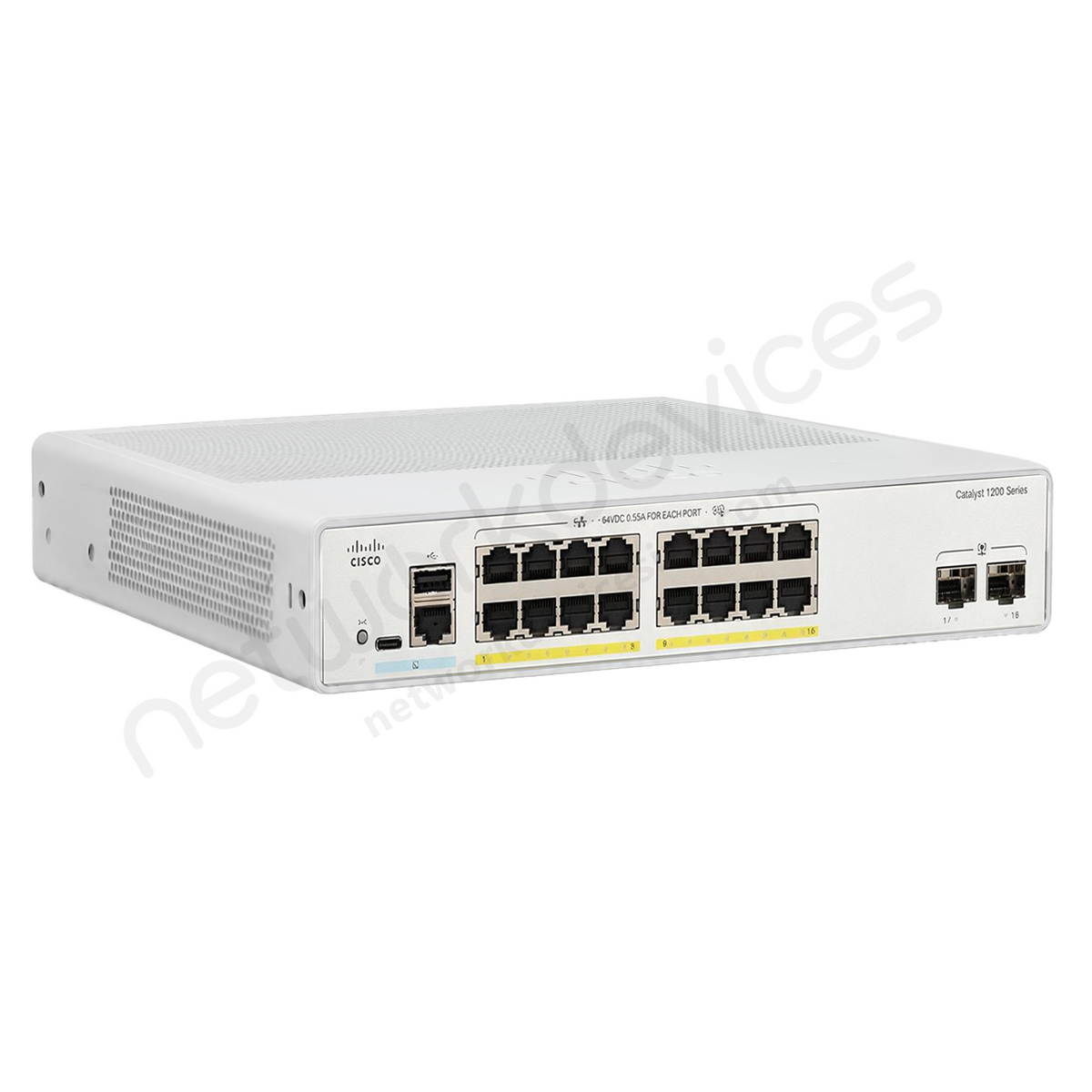

Cisco Catalyst C1200-16P-2G 16-Port PoE+ Switch

The Cisco Catalyst C1200-16P-2G is a compact, fanless 1RU Gigabit switch for small and midsize networks that need reliable PoE and simple, secure management. It provides 16 PoE+ access ports with a shared 120 W budget and two 1G SFP uplinks on a 36 Gbps non-blocking fabric. Management is straightforward via Cisco Business Dashboard (embedded probe), the Cisco Business mobile app, or the modern web interface, with additional CLI/SNMP options. With Layer 2 switching, Layer 3 static routing, rich QoS, and enterprise-grade security, C1200-16P-2G helps you segment, prioritize, and protect traffic without adding operational complexity.

Key Features:

• 16 × PoE+ access + 2 × SFP uplinks: Power APs, phones, and cameras while uplinking over fiber.
• Non-blocking performance: 36 Gbps switching capacity and 26.78 Mpps forwarding.
• Simple management: Cisco Business Dashboard/mobile app, web UI, CLI (SSH), SNMP, and PnP onboarding.
• Layer 3 static routing: Route between VLANs with up to 32 static routes and 16 SVIs.
• Enterprise security: 802.1X, IPv4/IPv6 ACLs, DoS prevention, port security, storm control.
• Quality of Service: 8 queues with 802.1p/DSCP classification, policing, and shaping.
• Quiet, efficient hardware: Fanless operation, compact 1RU footprint, energy-efficient Ethernet (IEEE 802.3az).

Technical Overview:

• Downlinks: 16 × 10/100/1000 PoE+ (802.3af/at; up to 30 W per port).
• Uplinks: 2 × 1G SFP.
• Switching / Forwarding: 36 Gbps switching capacity; 26.78 Mpps forwarding (64-byte).
• MAC / VLANs: 8K MAC table; up to 255 active VLANs; Voice VLAN; Auto Surveillance VLAN; GVRP/GARP.
• Layer 3: IPv4/IPv6 static routing; up to 32 static routes; up to 16 IP interfaces (SVIs).
• Link Aggregation: IEEE 802.3ad LACP — up to 4 groups; up to 8 ports per group (16 candidates).
• QoS: 8 hardware queues; 802.1p/DSCP classification & remarking; ingress policing; egress shaping.
• Jumbo Frames: Up to 9000 bytes (default MTU 2000 bytes).

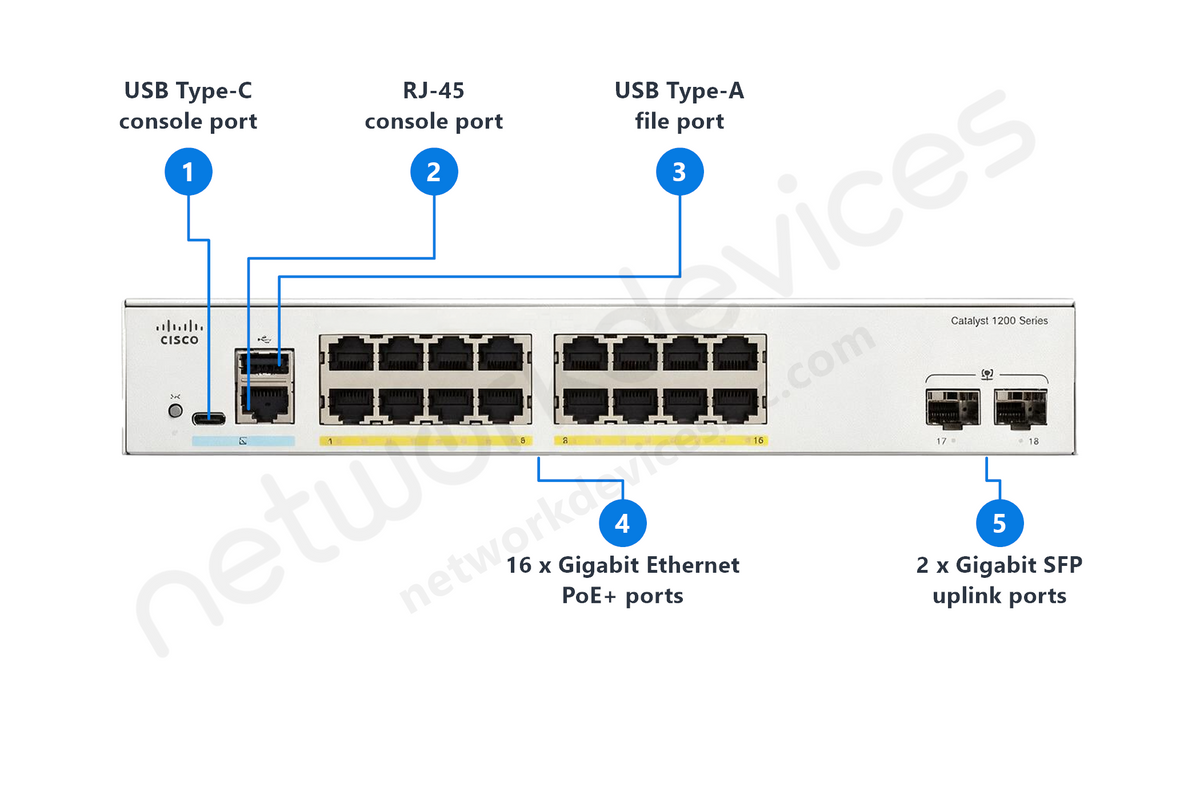

• Console / USB: RJ-45 console and USB-C console/file management.
• CPU / Memory / Flash: Dual-core ARM 1.4 GHz; 1 GB DDR4; 512 MB flash; packet buffer 1.5 MB.
• LEDs: System, Link/Activity, PoE, Speed.
• Power & Heat: Internal AC 100–240 V; ~17.2 W system-only (worst case); up to ~141.4 W with PoE; ~490.7 BTU/h heat dissipation.
• Operating Conditions: −5 to 50 °C; 10–90% RH (non-condensing).
• Dimensions / Weight: 268 × 297 × 44 mm (10.56 × 11.69 × 1.73 in); 2.38 kg (5.25 lb).
• Form Factor: Rack-mount, 1RU; fanless design.
