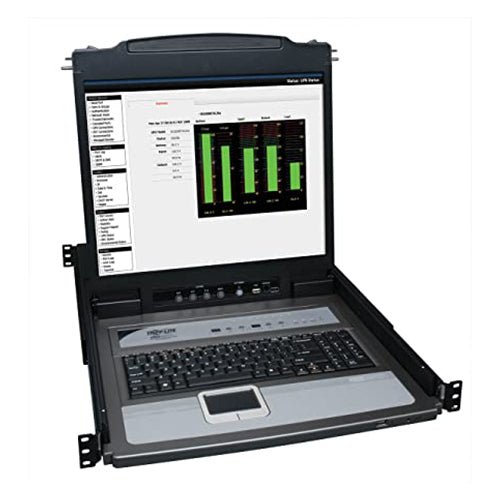

TRIPP LITE B020-U08-19KTAA CONSOLE KVM SWITCH

Part No: B020-U08-19KTAA
Detail:
  • Control up to 8 computers with one KVM switch with integrated console. This KVM switch is a smart solution for centralized server control that saves rack space and money. And, it's TAA compliant for GSA Schedule purchases.
List Price: US$2,240.00
Price:
$1,475.00
You Save: $765.00 (34% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ, TX, FL and PA
Quantity:
+
-

Tripp Lite's 8-port console KVM switch with 19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines an 8 port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Control up to 504 computers from this single console by daisy-chaining additional 16 port KVM switches (model B022-U16). Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hotkey commands.
Includes eight, six-foot combo cable kits, which allow connection to either PS/2 or USB servers, no adapters needed. Includes a console cable kit that plugs into the port on the back of the unit, providing an extra HD15, (2) USB and (2) PS/2 ports that can be used to connect a Tripp Lite B051-000 IP Remote Access Unit or an external console. Two USB ports are provided on the front of the unit: One for attachment of a separate USB mouse, and the other for attachment of USB peripherals, such as a flash drive, external hard drive, etc. to be shared between connected servers. Compatible with all major operating systems. Constructed of heavy-duty steel housing.



  • TAA Compliant for GSA NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD +8 PS2/USB Combo Cables control up to 8 computers with single KVM switch with integrated console
    Secure and centralized server control that saves rack space and money
    19" LCD screen supports video resolutions up to 1280 x 1024
    Easy switching between all 8 ports
    2-level password security (administrator and 4 users)
    Rack Mount KVM Switch/ Rack Mount Console
    View Full Product Details

Specifications

Display Size 19 inches
Display Resolution Up to 1280 x 1024
Number of Ports 8
Mounting Height 1U
Daisy-Chaining Supports up to 504 computers with additional 16-port KVM switches (model B022-U16)
Included Accessories Eight 6-ft. PS/2/USB combo cables; console cable kit
USB Ports Two USB ports for external mouse and peripherals
Password Security 2-level password security (administrator and 4 users)
Construction Heavy-duty steel housing
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity Range 20% to 80% non-condensing
Compliance TAA Compliant

Properties


Product Name Tripp Lite B020-U08-19KTAA Console KVM Switch Type Compatibility Media Type Power Connectivity Wearing Style Microphone Type Audio Performance Hearing Protection Inline Controls Headband Ear Cushion Material Weight Color Software Compatibility
Product Description 8-port console KVM switch with integrated 19" LCD, keyboard, and touchpad in a 1U rack-mountable drawer Corded UC Headset PC via USB-A Voice, music, and multimedia USB-powered USB-A Over-the-head, monaural Noise-canceling Dynamic EQ, microphone frequency response 100 Hz–10 kHz, enhanced digital signal processing SoundGuard technology Call answer/end, mute, volume +/- Lightweight metal with adjustable fit Soft foam 87 grams (with cable) Black Plantronics Manager Pro (additional purchase)
Type Rack Mount KVM Switch/Rack Mount Console
Compatibility Compatible with all major operating systems
Media Type Supports video resolutions up to 1280 x 1024
Power 100-240V AC, 50/60 Hz, 1A
Connectivity Includes eight 6-ft. PS/2 or USB combo cable kits; additional ports for external console or IP remote access unit
Inline Controls On-console push buttons, On-Screen Display (OSD), keyboard hotkey commands
Headband Not applicable
Ear Cushion Material Not applicable
Weight 14.5 kg (32 lbs)
Color Black
Software Compatibility Not applicable
