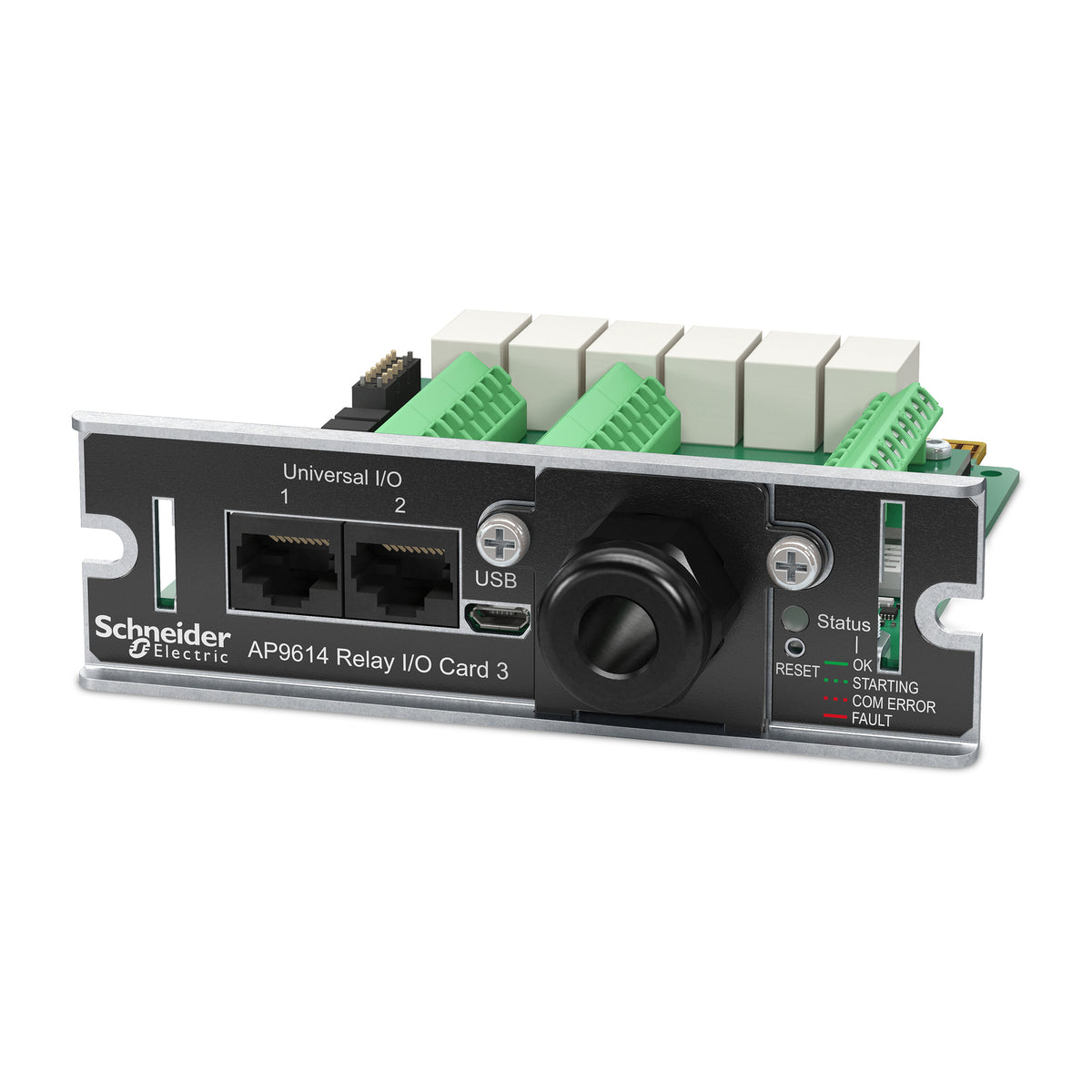

APC AP9614 Dry Contact I/O SmartSlot UPS Management Card

Reliable Dry Contact Monitoring for Your UPS with APC AP9614

The APC AP9614 Dry Contact I/O SmartSlot Card enables centralized monitoring of external UPS environmental sensors, output relays, and input contacts. It is designed to integrate critical dry contact signals directly into your UPS management system, helping you react faster to environmental and power events. Self powered through the SmartSlot interface, it simplifies deployment with no additional power supply required.

Key Benefits & Features

• External Sensor and Contact Integration: Monitor external UPS environmental sensors, output relays, and input contacts through a dedicated dry contact interface (6 configurable output relays and 4 input contacts).
• SmartSlot-Powered Design: Self powered via the UPS SmartSlot, eliminating the need for separate power cabling or adapters.
• Compact 0U Form Factor: The 0U design is not rack-mountable, offering flexible installation while adding powerful monitoring capability.
• Reliable Electrical Performance: Rated for 24 V with a 0-200 mA line current, perfectly suited for standard dry contact monitoring applications.
• Ready-to-Install Package: Supplied with the UPS Management Adapter, user manual, and necessary USB cable for straightforward integration and configuration.

Ideal Use Cases

• UPS installations that require monitoring of external environmental sensors, relays, and dry contact inputs.
• Network or equipment rooms where UPS status and external contact alarms need to be consolidated in one management interface.
• Facilities teams seeking clearer visibility into external conditions that can impact UPS performance and protected loads.
• Sites standardizing on Management Options and Cables for consistent UPS accessory integration.

Technical Specifications

• Product type: Dry contact I/O card
• Range of product: Management Options and Cables
• Rated voltage: 24 V
• Line rated current: 0-200 mA
• Power supply type: Self powered via SmartSlot
• Cable length: 0.522 ft (0.159 m)
• Number of rack units: 0U
• Height: 1.5 in (3.8 cm)
• Width: 4.8 in (12.1 cm)
• Depth: 5.04 in (12.8 cm)
• Net weight: 0.44 lb (0.20 kg)
• Operating temperature: 32-104 °F (0-40 °C)
• Operating altitude: 0-10000 ft
• Storage temperature: 5-149 °F (-15-65 °C)
• Storage altitude: 0-50000 ft (0-15240 m)
• Provided equipment: UPS Management Adapter, User manual, and USB cable

Upgrade your UPS monitoring with APC AP9614 today

Strengthen visibility into external UPS sensors and contacts with the APC AP9614 Dry Contact I/O SmartSlot Card. Order today to streamline your UPS monitoring.

Model	AP9614
Product Name	APC Dry Contact I/O SmartSlot Card
Product Type	UPS Management Adapter; Dry contact
Range of Product	Management Options and Cables
Application / Usage	UPS
Management	Monitoring & Control
Interfaces / Ports	USB; Network (RJ-45)
Number of Network (RJ-45) Ports	2
USB	Yes
Power Supply Type	Self powered via SmartSlot
Rated Voltage	24 V
Line Rated Current	0-200 mA
Cable Length	0.522 ft (0.159 m)
Rack Height / Number of Rack Units	0U
Mounting Mode	Not rack-mountable
Height	1.5 in (3.8 cm)
Width	4.8 in (12.1 cm)
Depth	5.04 in (12.8 cm)
Net Weight	0.44 lb (0.20 kg)
Compatibility	APC SmartSlot 160kVA UPS
Mercury Free	Yes

I/O Capacity	6 configurable output relays; 4 input contacts; 2 Universal I/O (UIO) ports for optional environmental sensors and Dry Contact I/O Accessory
Rated Voltage	24 V
Line Rated Current	0-200 mA
Operating Temperature	32-104 °F (0-40 °C)
Storage Temperature	5-149 °F (-15-65 °C)
Operating Altitude	0-10000 ft
Storage Altitude	0-50000 ft (0-15240 m)

Included	UPS Management Adapter; User manual; USB cable (included in the box)
Optional - Environmental Sensors	Optional environmental sensors via Universal I/O (UIO) ports
Optional - Dry Contact I/O Accessory	Dry Contact I/O Accessory providing 2 additional dry contact input and relay output interfaces
