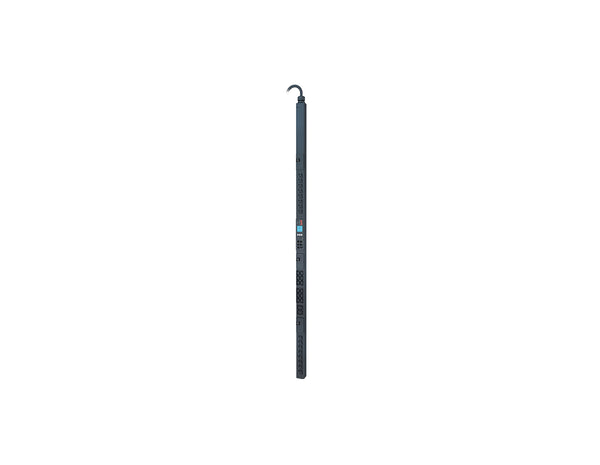

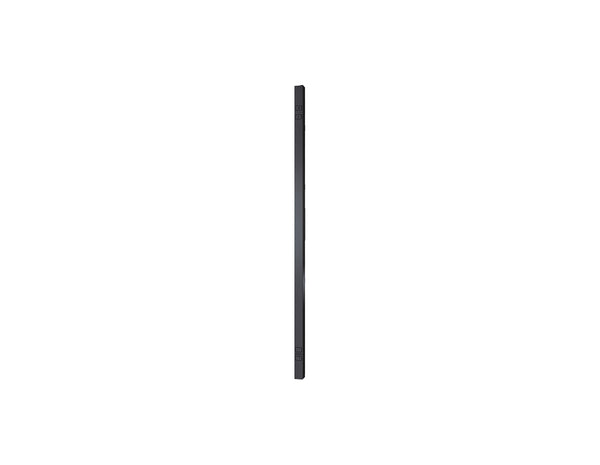

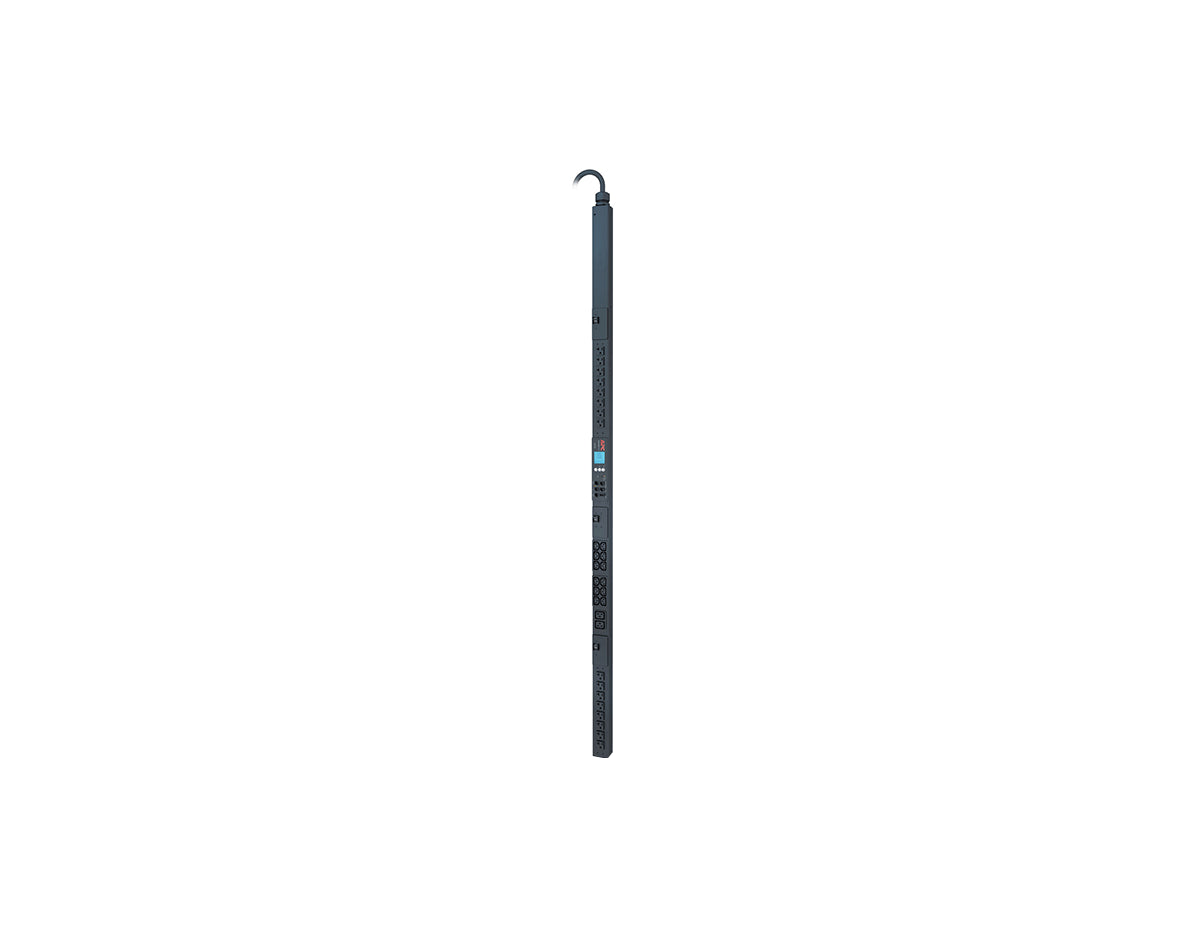

APC AP8870 - NetShelter Metered Rack PDU 2G 0U 30A

[accessories]

Installation Guide	Included in the box
Rack Mounting Brackets	Included in the box
Serial Configuration Cable	Included in the box
Safety Guide	Included in the box
Warranty Card	Not specified

[/accessories]

Overview

The APC NetShelter AP8870 Metered Rack PDU provides precision power monitoring for data centers and IT racks. Featuring 30A input with 0U vertical mounting, it delivers accurate energy data, user-defined thresholds, and proactive alerts to ensure uptime and efficiency. Designed for scalability, it integrates with APC centralized management platforms for streamlined oversight.

Key Features & Benefits

• Active Metering: Real-time visibility into energy consumption enables optimized load balancing.
• User-Defined Alarms: Configurable thresholds send instant alerts to prevent overloads.
• Outlet Diversity: Equipped with 16 NEMA 5-20R, 12 C13, and 2 C19 outlets for flexible deployments.
• Secure Remote Access: Manage via Web, SNMP, or Telnet with APC InfraStruxure integration.
• Space-Saving Design: 0U vertical rack mounting preserves rack unit capacity.

Technical Deep Dive

The AP8870 employs advanced metering technology to provide detailed insight into circuit utilization. By delivering real-time data, IT managers can avoid overloads and optimize rack density without guesswork.

Its secure management options include SNMP, Telnet, and Web interfaces, ensuring both local and remote accessibility. Combined with APC’s InfraStruxure suite, it offers a centralized view of power health across multiple racks.

The ultra-low-profile circuit breakers and locking IEC outlets enhance operational safety and reliability, making it a dependable choice for enterprise environments.

Ideal Applications

• Enterprise data centers requiring detailed energy monitoring
• Server racks with diverse outlet requirements
• Colocation facilities demanding proactive overload prevention
• IT environments using APC InfraStruxure for management

Frequently Asked Questions (FAQs)

Q1: How is the AP8870 installed?
A: It is a 0U vertical rack-mounted PDU with included brackets for easy side mounting in racks.

Q2: What power capacity does it provide?
A: The PDU supports 30A input with a 4992 VA load capacity. Runtime depends on connected UPS systems and load distribution.

Q3: How can it be managed?
A: It supports Web, SNMP, and Telnet interfaces and integrates seamlessly with APC InfraStruxure for centralized monitoring.

Brand	APC by Schneider Electric
Model	AP8870
Product Type	NetShelter Metered Rack PDU
Form Factor	0U Vertical
Dimensions (H x W x D)	70.5" x 2.2" x 1.7" (1791 x 55 x 44 mm)
Weight	14.07 lb (6.38 kg)
Color	Black
Number of Rack Units	0U
Mounting Mode	Rack-mounted (Vertical, Side Mountable)
Cooling	Passive

PDU Type	Metered
Input Voltage	120 V / 208 V
Output Voltage	120 V / 208 V / 240 V
Input Plug Type	NEMA L14-30P
Input Frequency	50/60 Hz
Line Rated Current	24 A (Max 30 A)
Load Capacity	4992 VA
Outlets	16 × NEMA 5-20R, 12 × IEC C13, 2 × IEC C19
Communication Ports	Web, SNMP, Telnet
Operating Temperature	23–140 °F (-5–60 °C)
Storage Temperature	-13–149 °F (-25–65 °C)
Operating Humidity	5–95% non-condensing
Storage Humidity	5–95% non-condensing
Operating Altitude	0–10,000 ft
Storage Altitude	0–50,000 ft
Compliance	cUL Listed, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, RoHS, REACh
Warranty	2 years repair or replace
