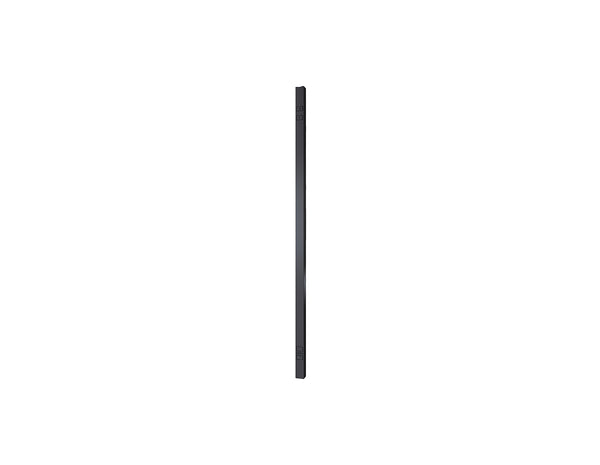

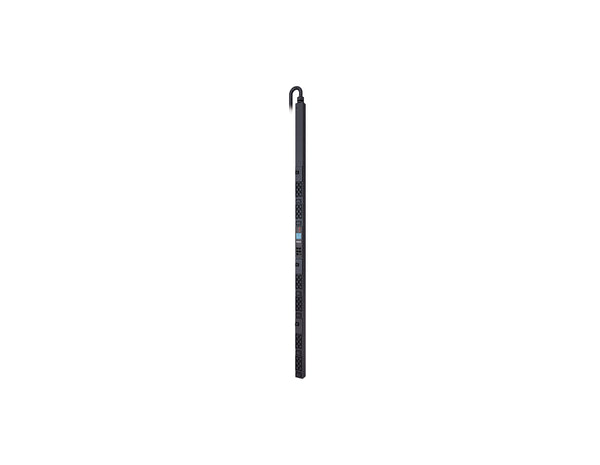

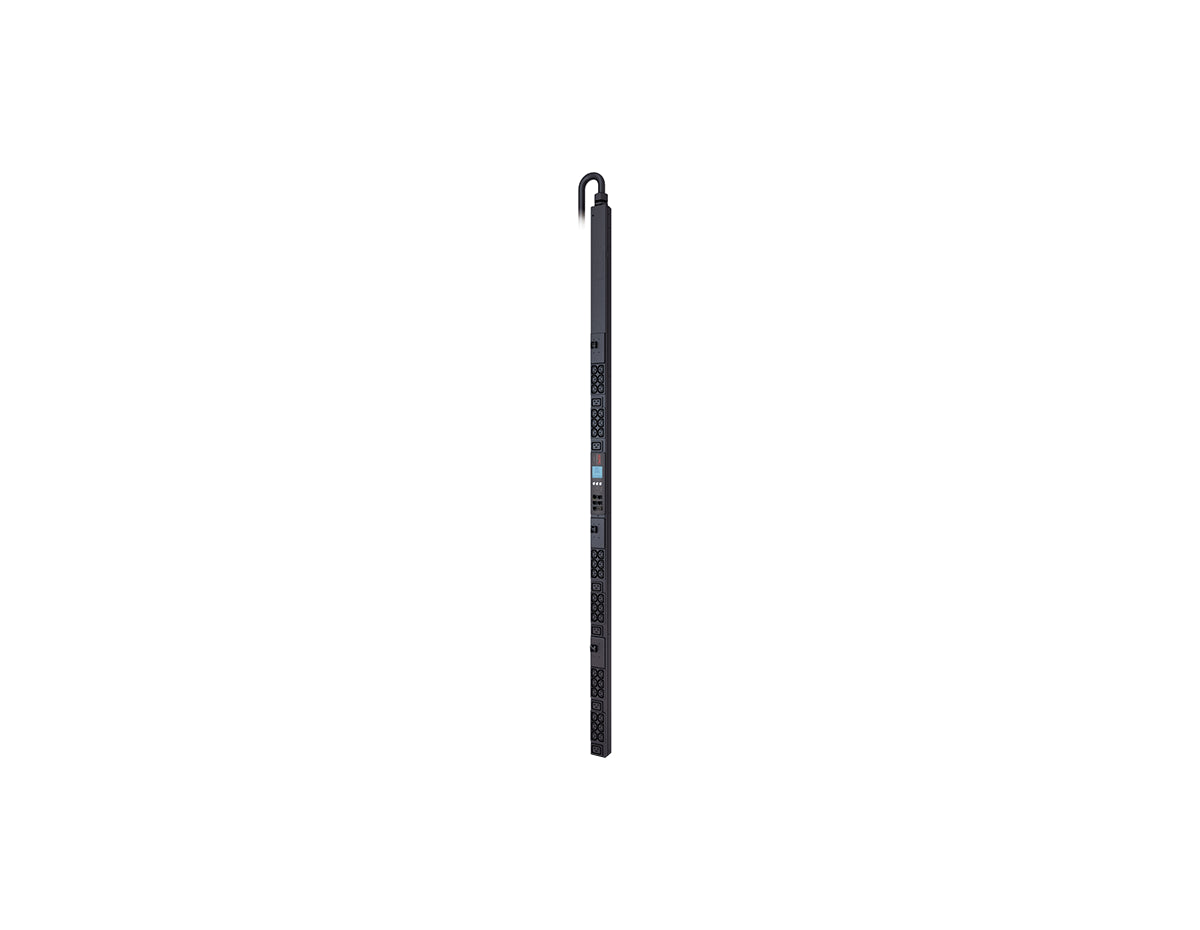

APC AP8868 - NetShelter Metered Rack PDU 10kW 0U Vertical

[accessories]

Installation Guide	Included in the box
Rack Mounting Brackets	Included in the box
Serial Configuration Cable	Included in the box
Safety Guide	Included in the box

[/accesories]

Overview

The APC AP8868 Metered Rack PDU is a high-density, 0U vertical power distribution solution engineered to deliver 10kW at 208V. With integrated metering, remote monitoring, and user-defined alarms, it ensures efficient power management in mission-critical data center environments. Designed for APC NetShelter enclosures, it installs without tools, saving valuable rack space.

Key Features & Benefits

• 10kW Load Capacity: Provides reliable high-density power distribution for modern data centers.
• Remote Monitoring: Access via Web, SNMP, or CLI for proactive power management.
• User-Defined Alarms: Prevent overloads with real-time threshold alerts.
• Locking IEC Receptacles: Secures power cords, reducing accidental disconnections.
• 0U Vertical Mount: Saves rack space and increases equipment capacity.
• Environmental Monitoring: Supports temperature/humidity sensors for full rack insight.

Technical Deep Dive

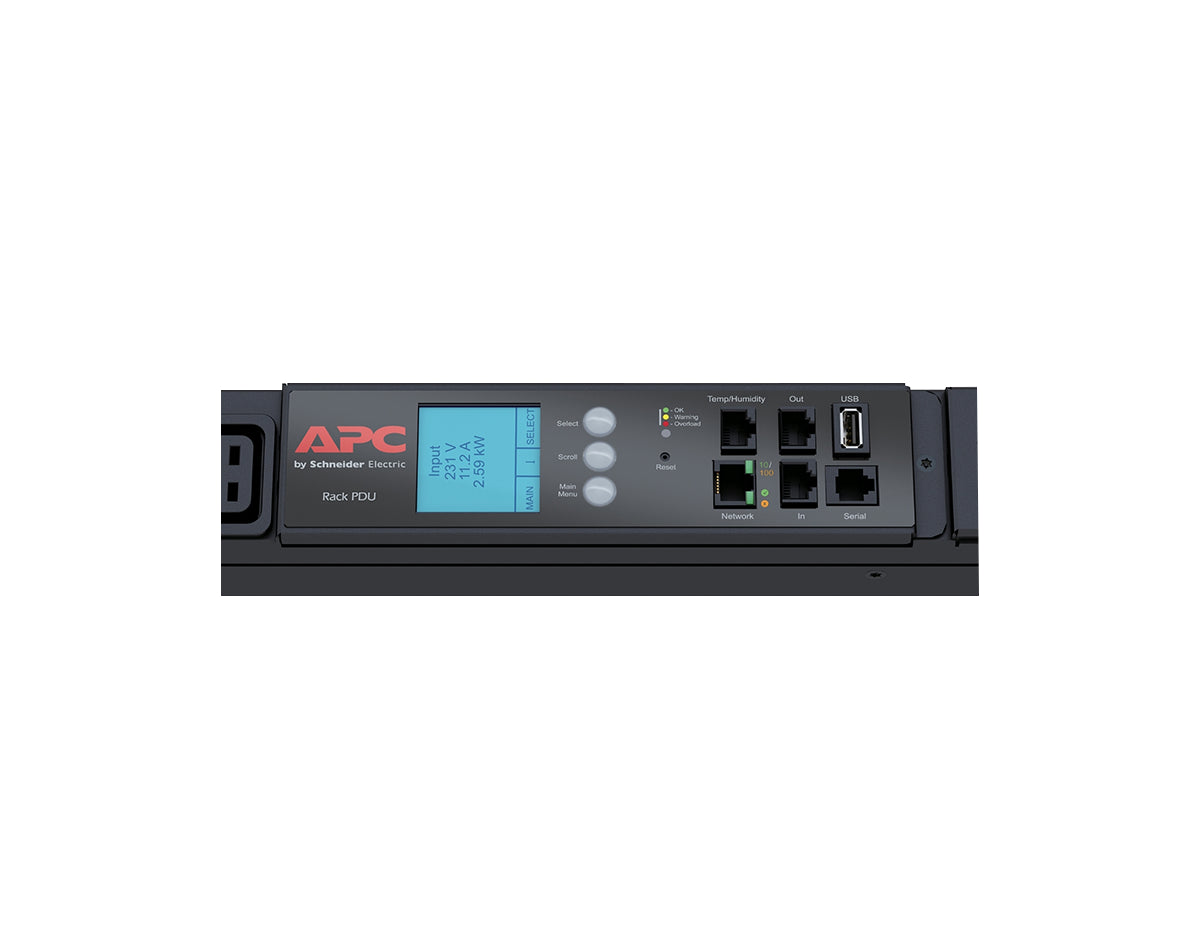

The AP8868 leverages a 3-phase 208V input with a maximum line current of 35A, delivering consistent power across 36 C13 and 6 C19 outlets. By integrating real-time kW and kWh metering, it enables precise load balancing and energy efficiency tracking.

Its ultra-low-profile breakers and embedded memory enhance operational reliability by logging historical data, allowing IT teams to analyze consumption trends. The locking outlet design prevents load drops caused by accidental disconnections, a critical safeguard in high-uptime environments.

The environmental monitoring port extends visibility by integrating external sensors, giving administrators real-time awareness of temperature and humidity conditions in the rack.

Ideal Applications

• Enterprise data centers with high-density racks
• Colocation facilities requiring remote visibility
• Server rooms and network closets
• Industries with continuous uptime requirements such as finance, healthcare, and telecom

Frequently Asked Questions (FAQs)

Q1: How is the AP8868 installed?
A: It mounts vertically (0U) in APC NetShelter racks without tools, preserving valuable horizontal rack space.

Q2: What power output does it provide?
A: The AP8868 delivers up to 10kW at 208V with 36x C13 and 6x C19 outlets. Runtime depends on connected load and input source capacity.

Q3: How can the unit be managed?
A: The PDU supports remote management through Web, SNMP, and CLI, with the option to integrate external environmental sensors.

Brand	APC by Schneider Electric
Model	AP8868
Product Type	NetShelter Metered Rack PDU
Form Factor	0U Vertical
Dimensions (H x W x D)	72.01" x 2.20" x 2.01" (1829 x 56 x 51 mm)
Weight	18.78 lb (8.52 kg)
Color	Black
Number of Rack Units	0U
Mounting Mode	Rack-mounted (Vertical, Side Mountable)
Cooling	Passive

PDU Type	Metered
Input Voltage	208 V (3 Phase)
Output Voltage	208 V
Input Plug Type	CS8365
Input Frequency	50/60 Hz
Line Rated Current	35 A (Max 35 A)
Load Capacity	10,000 VA
Outlets	36 × IEC C13, 6 × IEC C19
Communication Ports	Web, SNMP, CLI, Serial configuration
Operating Temperature	23–140 °F (-5–60 °C)
Storage Temperature	-13–149 °F (-25–65 °C)
Operating Humidity	5–95% non-condensing
Storage Humidity	5–95% non-condensing
Operating Altitude	0–10,000 ft
Storage Altitude	0–50,000 ft
Compliance	cUL Listed, UL Listed, VCCI Class A, FCC Part 15 Class A, ICES-003, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3
Warranty	2 years repair or replace
