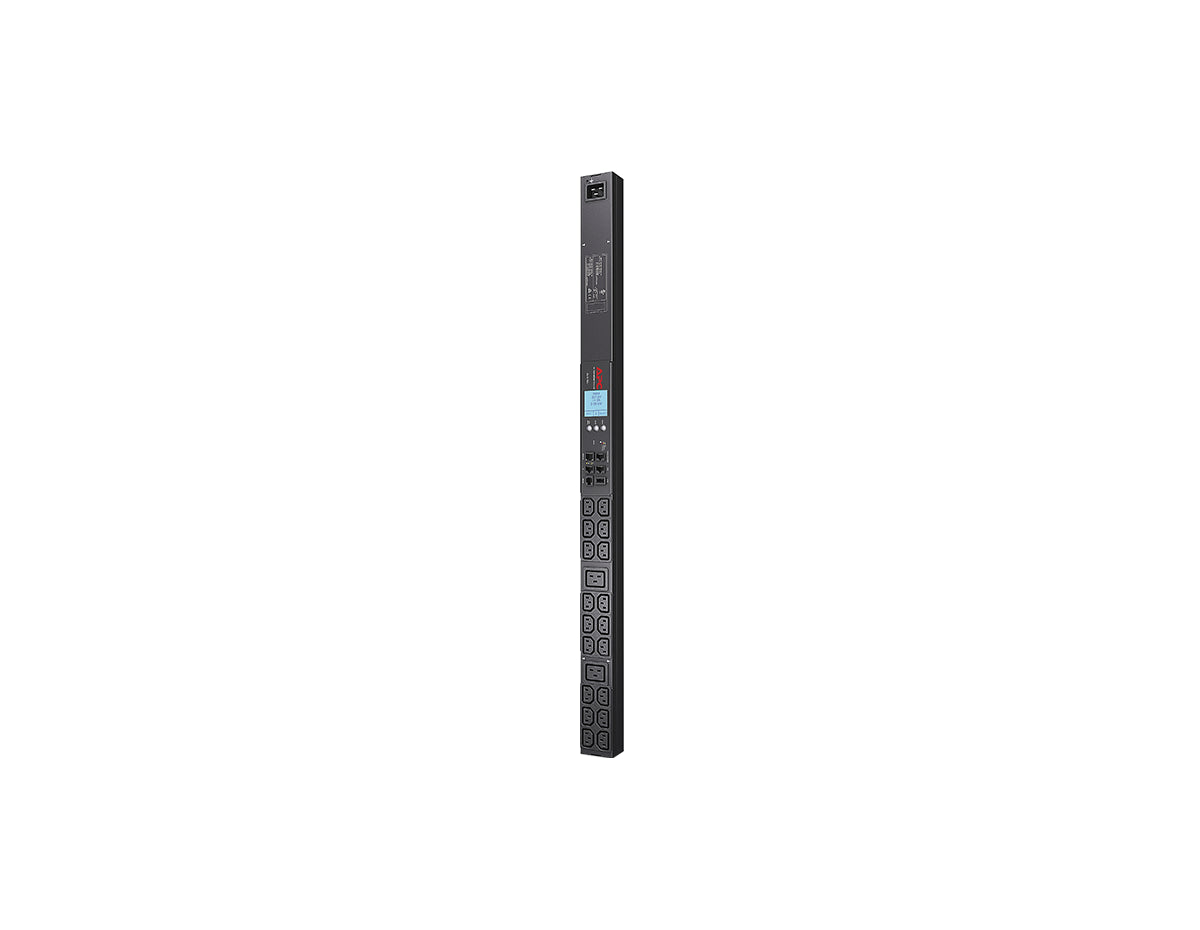

APC AP8858NA3 - Metered Rack PDU 20A 208V 0U with 18 C13 & 2 C19 Outlets

[accessories]

Installation Guide	Included in the box

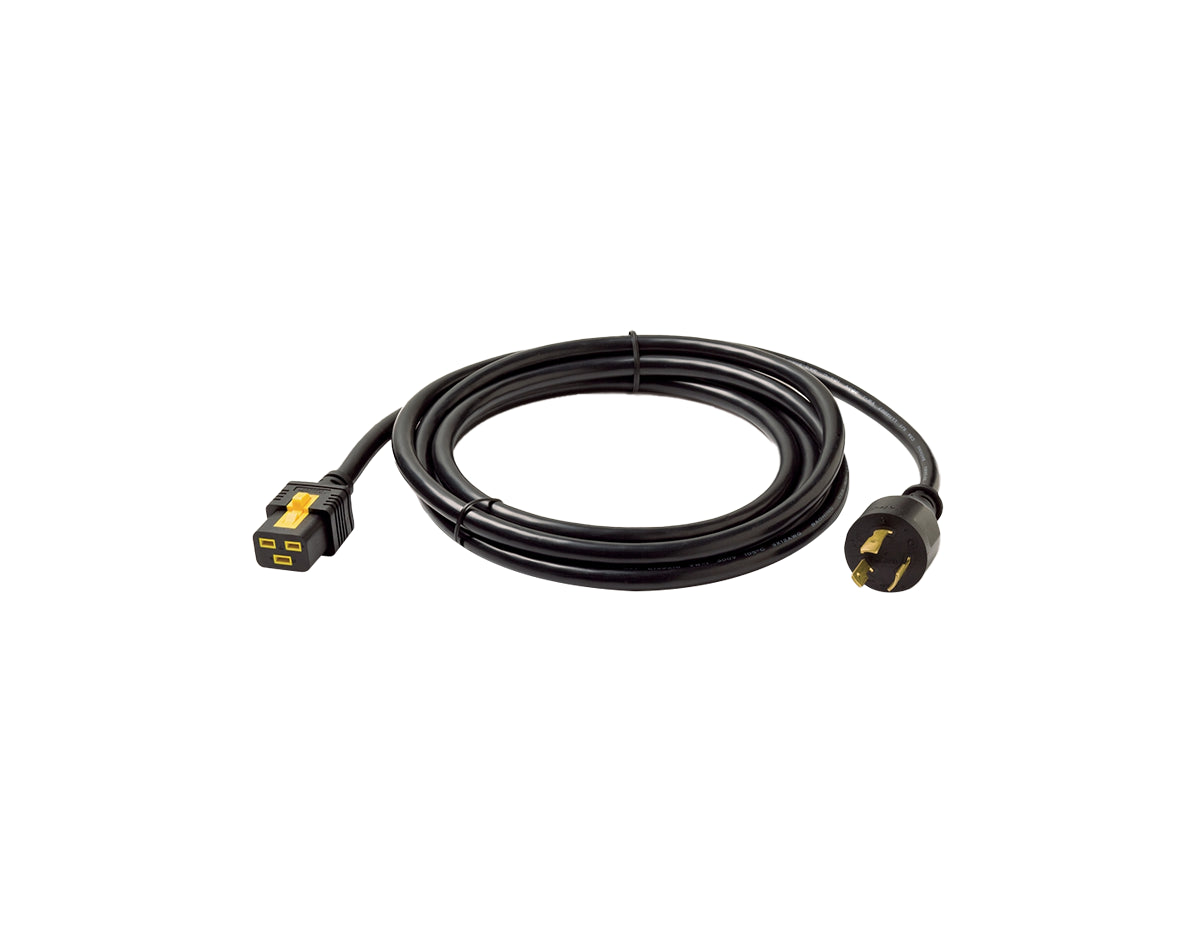

Locking Input Power Cord	Included in the box
Rack Mounting Brackets	Included in the box
Serial Configuration Cable	Included in the box
Safety Guide	Included in the box

[/accesories]

Overview

The APC AP8858NA3 Metered Rack PDU is engineered to provide reliable, metered power distribution in high-density IT racks. Delivering 20A at 208V in a 0U vertical form factor, it combines energy optimization with advanced monitoring. Featuring locking IEC outlets, ultra-low profile circuit breakers, and user-defined alarm thresholds, this PDU helps prevent overloads while streamlining power management across network hardware.

Key Features & Benefits

• Active Metering: Real-time monitoring enables precise load balancing and improved energy efficiency.
• Outlet Configuration: 18 IEC C13 and 2 IEC C19 outlets support diverse IT equipment.
• Secure Remote Access: Manage via Web, SNMP, or Telnet interfaces for centralized control.
• Locking IEC Outlets: Prevent accidental disconnects, ensuring continuous uptime.
• Temperature/Humidity Sensor Port: Supports environmental monitoring for proactive management.

Technical Deep Dive

The AP8858NA3 leverages APC’s advanced 2G metering technology to provide accurate real power measurements across its 20A, 208V input. This ensures precise energy usage reporting, giving data center managers actionable insights for right-sizing power and reducing costs.

Equipped with ultra-low profile circuit breakers, the unit maximizes usable rack space while delivering protection against overloads. Locking IEC outlets further reinforce reliability by securing connections during high-density deployments.

Remote access via Web, SNMP, or Telnet integrates seamlessly with APC’s centralized platforms such as InfraStruxure Operations and Capacity. This makes the AP8858NA3 ideal for enterprises requiring scalable, network-managed PDUs.

Ideal Applications

• High-density data centers requiring metered rack PDUs
• Enterprise server racks with mixed IEC outlet needs
• Colocation facilities with strict energy usage tracking
• Network closets and edge environments with remote management

Frequently Asked Questions (FAQs)

Q1: How is the AP8858NA3 installed?
A: It mounts vertically in a 0U configuration with included brackets, fitting seamlessly into standard racks.

Q2: What performance can I expect?
A: The unit supports 20A at 208V with a load capacity of 3300VA. Runtime is dependent on connected devices and load distribution.

Q3: How can this PDU be managed?
A: It supports secure Web, SNMP, and Telnet interfaces, along with compatibility for APC’s centralized management platforms.

Brand	APC by Schneider Electric
Model	AP8858NA3
Product Type	NetShelter Metered Rack PDU
Form Factor	0U Vertical
Dimensions (H x W x D)	35.5" x 2.20" x 1.70" (902 x 56 x 44 mm)
Weight	6.46 lb (2.93 kg)
Color	Black
Number of Rack Units	0U
Mounting Mode	Rack-mounted (Vertical, Side Mountable)

PDU Type	Metered
Input Voltage	200 V / 208 V / 230 V / 240 V
Output Voltage	208 V
Input Plug Type	NEMA L6-20P
Input Frequency	50/60 Hz
Line Rated Current	16 A (Max 20 A)
Load Capacity	3300 VA
Outlets	18 × IEC C13, 2 × IEC C19
Communication Ports	Web, SNMP, Telnet
Operating Temperature	23–140 °F (-5–60 °C)
Storage Temperature	-13–149 °F (-25–65 °C)
Operating Humidity	5–95% non-condensing
Storage Humidity	5–95% non-condensing
Operating Altitude	0–10,000 ft
Storage Altitude	0–50,000 ft
Compliance	METI Denan, VDE, CSA C22.2 No. 60950, IEC 60950, UL 60950-1
Warranty	2 years repair or replace
