APC AP7911B - Switched Rack PDU 2U 30A 208V 16 C13

[accessories]

Documentation CD	Included in the box
Installation Guide	Included in the box
Rack Mounting Brackets	Included in the box

[/accesories]

Overview

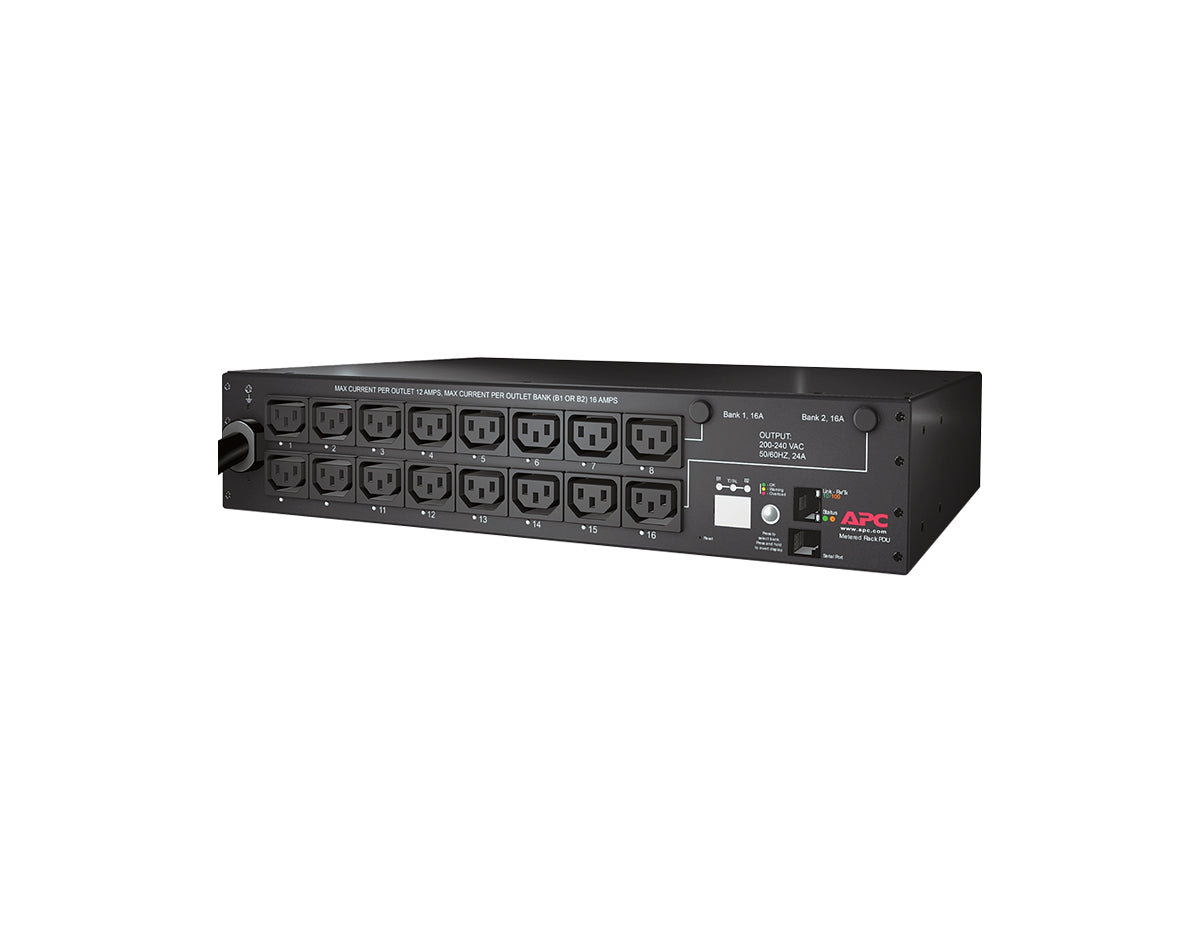

The APC AP7911B is a switched rack power distribution unit (PDU) engineered for efficient power delivery in enterprise and data center environments. Featuring 2U horizontal rackmount design, it provides 208V output through 16 C13 outlets with a robust 30A input capacity, ensuring stable and secure power distribution to critical network and IT hardware.

Key Features & Benefits

• Switched PDU: Remote outlet-level control for optimized power management.
• High Capacity: 30A input supporting up to 4992 VA load for dense rack deployments.
• 16 C13 Outlets: Compatible with a wide range of IT devices.
• 2U Rack Design: Space-efficient horizontal mount with front or rear installation flexibility.
• Reliable Connections: NEMA L6-30P input plug ensures secure high-voltage delivery.

Technical Deep Dive

The AP7911B operates on a 200–240V input range with a rated current of 24A, making it ideal for high-demand rack environments. Its switched PDU capability enables IT managers to remotely power-cycle individual outlets, reducing downtime and improving troubleshooting response.

Each of the 16 IEC C13 outlets is engineered for compatibility with servers, switches, and storage units. The unit’s robust load capacity of 4992 VA ensures it can handle dense rack deployments, while its line-rated design provides stability across variable loads.

Constructed with enterprise-grade reliability, the AP7911B meets UL, CSA, and FCC standards, ensuring compliance and consistent performance under demanding conditions.

Ideal Applications

• Enterprise server racks
• Data centers with high-density power needs
• Network closets requiring remote outlet management
• Colocation facilities and hosted IT environments

Frequently Asked Questions (FAQs)

Q1: How is the AP7911B installed?
A: It mounts horizontally in 2U rack space and includes brackets for front or rear installation.

Q2: What performance should I expect?
A: It supports up to 4992 VA with 208V output across 16 C13 outlets. Load capacity varies by connected devices and operating conditions.

Q3: Can the unit be managed remotely?
A: Yes, the switched PDU functionality allows remote outlet control and monitoring, helping improve efficiency and reduce downtime.

Brand	APC by Schneider Electric
Model	AP7911B
Product Type	NetShelter Switched Rack PDU
Form Factor	Rackmount 2U
Dimensions (H x W x D)	3.5" x 17.5" x 10.0" (89 x 445 x 254 mm)
Weight	13.93 lb (6.32 kg)
Color	Black
Number of Rack Units	2U
Mounting Mode	Rack-mounted (Horizontal)

PDU Type	Switched
Input Voltage	200 V / 208 V / 230 V
Output Voltage	208 V
Input Plug Type	NEMA L6-30P
Input Frequency	50/60 Hz
Line Rated Current	24 A (Max 30 A)
Load Capacity	4992 VA
Outlets	16 × IEC C13
Communication Ports	Web, SNMP, Telnet
Operating Temperature	32–113 °F (0–45 °C)
Storage Temperature	-13–149 °F (-25–65 °C)
Operating Humidity	0–95% non-condensing
Storage Humidity	0–95% non-condensing
Operating Altitude	0–10,000 ft
Storage Altitude	0–50,000 ft
Compliance	cUL Listed, CSA, Industry Canada, PSE, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950
Warranty	2 years repair or replace
