APC AP7901B - 1U Switched Rack PDU 20A 120V with 8 Outlets

[accessories]

Cord Retention Brackets	Included in the box
Horizontal Mounting Brackets	Included in the box
User Manual	Included in the box
Installation Guide	Included in the box

[/accesories]

Overview

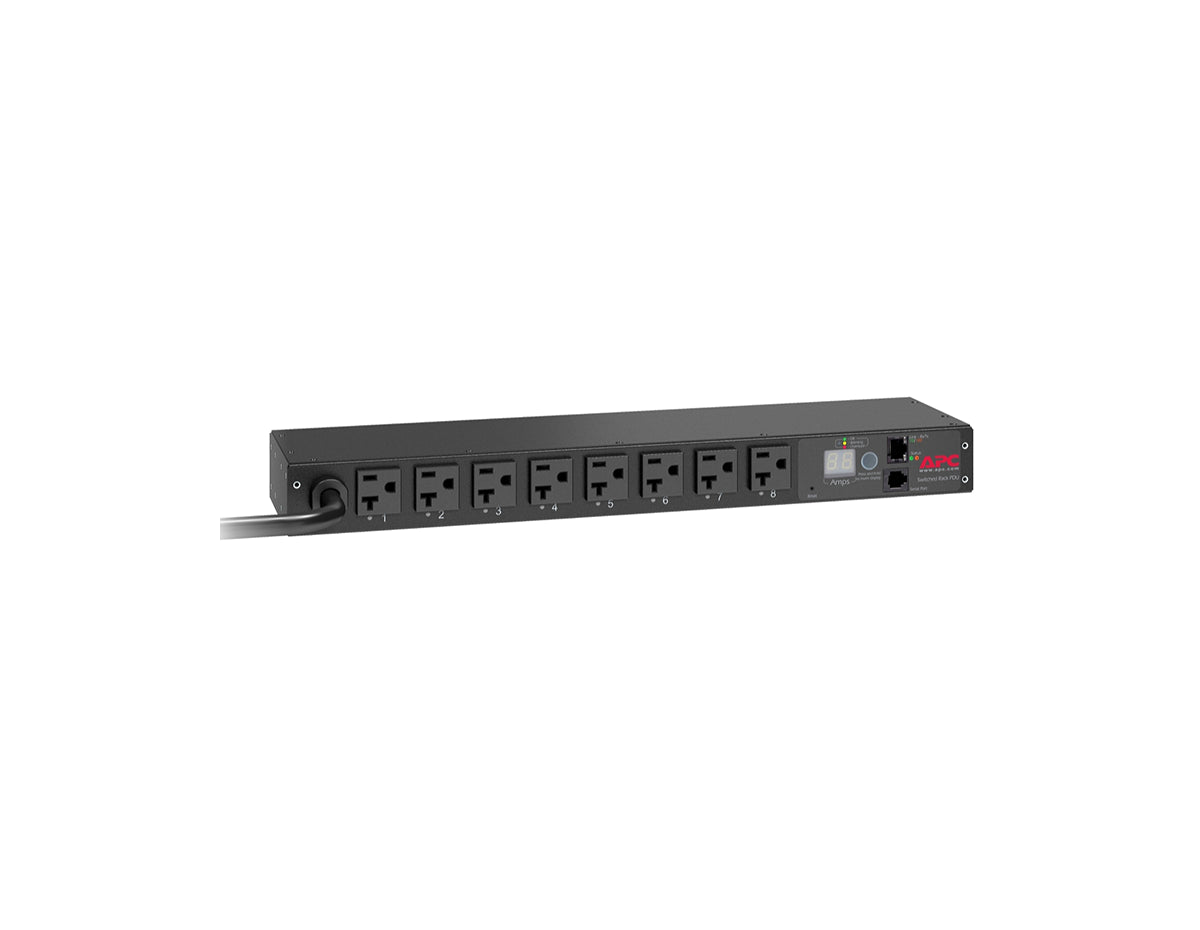

The APC AP7901B is a rack-mountable switched PDU designed for high-availability IT environments. With 20A input capacity, 120V distribution, and eight controllable outlets, it enables precise power management for servers and network devices. Its 1U horizontal form factor ensures efficient use of rack space while maintaining reliability and flexibility.

Key Features & Benefits

• Switched Control: Enables remote on/off functionality for individual outlets, supporting advanced power management.
• 1U Rackmount Design: Compact horizontal unit fits seamlessly in standard IT racks.
• High Load Capacity: Delivers up to 1920 VA across 8 NEMA 5-20R outlets.
• Durable Build: Engineered with robust design for continuous data center operations.
• Remote Power Access: Ideal for managing distributed IT deployments with minimal on-site intervention.

Technical Deep Dive

The AP7901B utilizes switched PDU architecture, providing granular control over each of its 8 outlets. This allows IT teams to remotely reboot unresponsive hardware without dispatching on-site technicians, reducing downtime and costs.

Its NEMA L5-20P plug and 20A rated input ensure reliable connectivity to facility power. With 100–120V operating range and 50/60Hz frequency support, it integrates smoothly into diverse North American data center and network environments.

The compact 1U design maximizes rack density while maintaining accessibility. By combining high-current delivery with intelligent switching, it balances efficiency with reliability for mission-critical workloads.

Ideal Applications

• Small to medium data centers requiring remote outlet control
• Server racks supporting virtualization and high-density compute
• Network closets distributing managed power to switches and routers
• Branch offices with limited IT staff presence

Frequently Asked Questions (FAQs)

Q1: How is the AP7901B installed?
A: It is a 1U rack-mounted PDU with included horizontal brackets, suitable for front or rear installation.

Q2: What performance can I expect?
A: It supports up to 1920 VA load capacity with 20A input. Runtime depends on upstream UPS or power source and load configuration.

Q3: How is the unit managed?
A: Each of the 8 outlets can be switched remotely, enabling power cycling, load management, and improved operational efficiency.

Brand	APC by Schneider Electric
Model	AP7901B
Product Type	NetShelter Switched Rack PDU
Form Factor	Rackmount 1U
Dimensions (H x W x D)	1.7" x 17.5" x 4.3" (44 x 445 x 108 mm)
Weight	5.0 lb (2.27 kg)
Color	Black
Number of Rack Units	1U
Mounting Mode	Rack-mounted (Horizontal)

PDU Type	Switched
Input Voltage	100–120 V
Output Voltage	120 V
Input Plug Type	NEMA L5-20P
Input Frequency	50/60 Hz
Line Rated Current	16 A (Max 20 A)
Load Capacity	1920 VA
Outlets	8 × NEMA 5-20R
Communication Ports	Web, SNMP, Telnet
Operating Temperature	32–113 °F (0–45 °C)
Storage Temperature	-13–149 °F (-25–65 °C)
Operating Humidity	0–95% non-condensing
Storage Humidity	0–95% non-condensing
Operating Altitude	0–10,000 ft
Storage Altitude	0–50,000 ft
Compliance	cUL Listed, CSA, Industry Canada, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950
Warranty	2 years repair or replace
