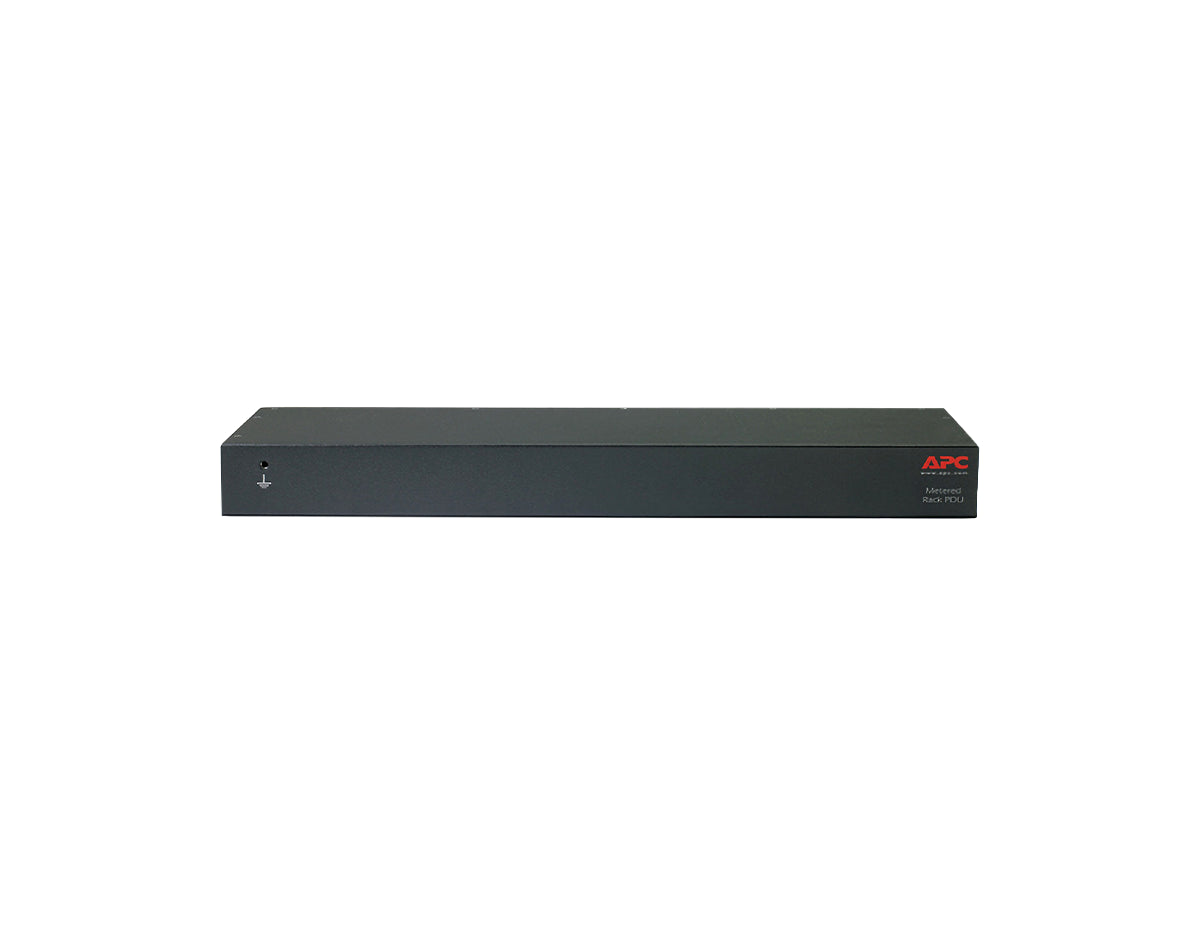

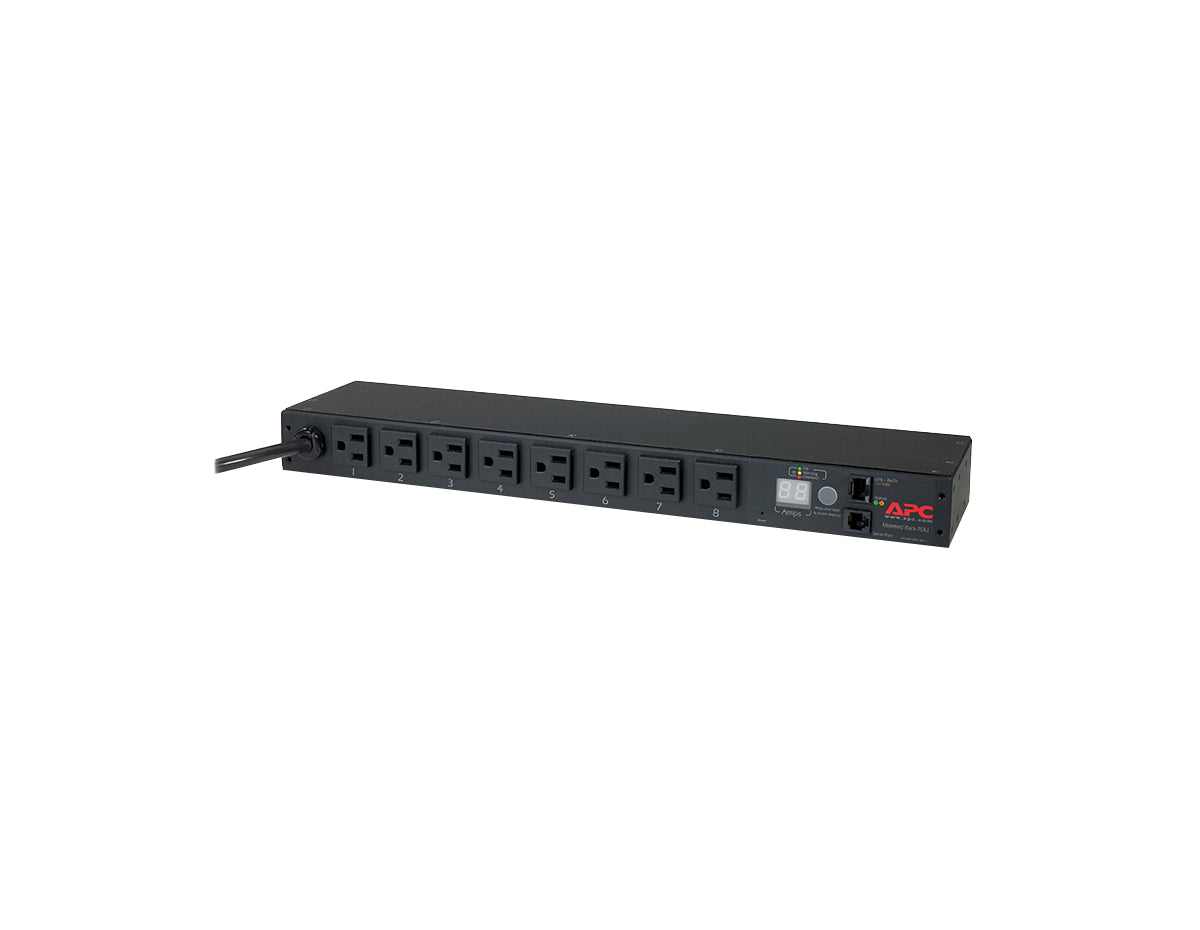

APC NetShelter Metered Rack PDU, 1U, 15A, 100/120V, (8) NEMA Outlets (AP7800B)

The APC AP7800B is a metered rack PDU designed to deliver efficient power distribution with real-time power monitoring for enterprise IT environments. This 1U rack-mount PDU supports 15A input current and features 8 NEMA 5-15R outlets to supply power to connected equipment.

Equipped with a NEMA 5-15P input plug and a 12-ft (3.7m) cord, the AP7800B supports a 1440 VA load capacity and operates at 100-120V with 50/60 Hz input frequency. The unit includes rack-mounting brackets, cord retention brackets, and an installation guide for quick and secure setup. The PDU offers horizontal mounting options for front or rear placement.

With UL, cUL, and VCCI certifications, the AP7800B ensures safe, reliable performance across a wide range of operating environments, supporting temperatures between -5°C to 45°C and altitudes up to 10,000 ft.

Key Features:

• Power Capacity: 15A input current with a 1440 VA load rating.
• Outlet Configuration: 8 NEMA 5-15R outlets.
• Input Plug: NEMA 5-15P plug with a 12-ft (3.7m) cord.
• PDU Type: Metered with power monitoring.
• Mounting Mode: Horizontal, 1U rack-mounted.
• Environmental Tolerance: Operates between -5°C to 45°C and up to 10,000 ft altitude.
• Certifications: UL, cUL, VCCI, and FCC Part 15 Class A compliant.
• Included Components: Rack-mounting brackets, cord retention brackets, and installation guide.

Why Choose the APC AP7800B?

The APC AP7800B provides real-time power monitoring and secure power distribution for data centers and IT infrastructure. Its metered functionality, robust construction, and efficient space utilization make it an essential component for enterprise environments.
