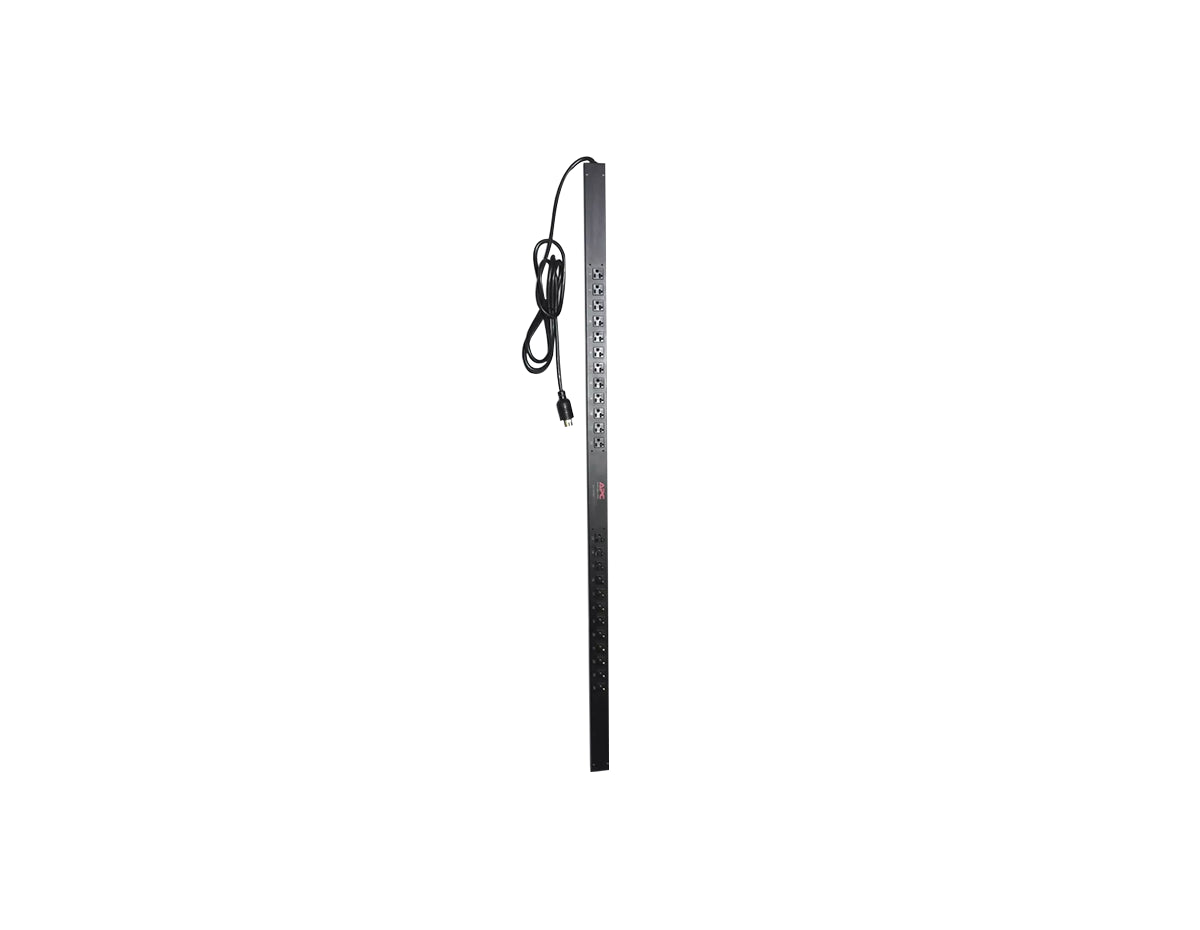

APC NetShelter Basic Rack PDU, Zero U, 20A, 120V, (24) NEMA 5-20 Outlets (AP7530)

The APC AP7530 is a basic rack power distribution unit (PDU) designed for enterprise data centers and IT infrastructure. This Zero U, 20A, 120V PDU features 24 NEMA 5-20R outlets to provide reliable power distribution across connected equipment. The rack-mountable vertical design ensures efficient space utilization.

Equipped with a NEMA L5-20P input plug and a 10-ft (3.05m) cord, the AP7530 delivers a 1920 VA load capacity with support for 50/60 Hz input frequency. The unit includes tool-less mounting hardware and cord retention brackets for quick and secure installation.

Built with durable materials, the AP7530 supports operating conditions ranging from -5°C to 45°C at altitudes up to 15,000 ft, ensuring reliable performance in diverse environments. This unit is UL and cUL certified for safety compliance.

Key Features:

• Power Capacity: 20A line current with a 1920 VA load rating.
• Outlet Configuration: 24 NEMA 5-20R outlets.
• Input Plug: NEMA L5-20P plug with a 10-ft (3.05m) cord.
• Mounting Mode: Vertical, Zero U rack-mounted.
• Environmental Tolerance: Operates from -5°C to 45°C and up to 15,000 ft altitude.
• Surge Protection: Not provided (basic PDU design).
• Certifications: UL 60950-1, cUL listed.
• Included Components: Tool-less mounting kit, cord retention brackets, installation guide.

Why Choose the APC AP7530?

The APC AP7530 offers reliable power distribution with 24 outlets in a space-efficient Zero U rack design. Its robust build quality, easy installation features, and compliance with industry standards make it an essential component for IT infrastructure management.
