Cisco Aironet Power Injector products increase the deployment flexibility of Cisco Aironet wireless access points and bridges by providing an alternative powering option to local power, inline power-capable multiport switches, and multiport power patch panels.
| Properties |

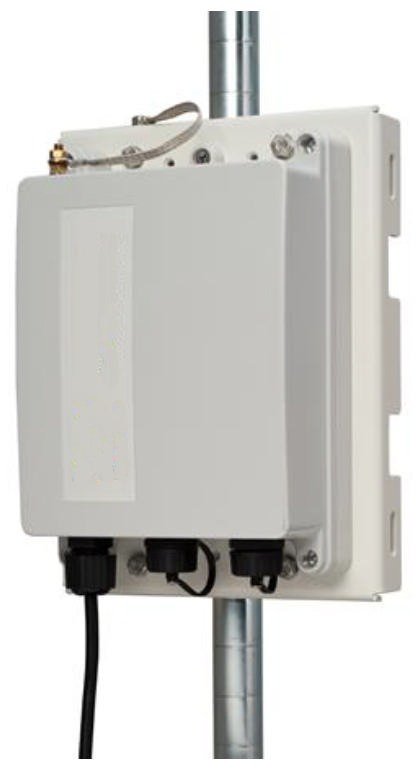

Cisco AIR-PWRINJ-60RGD1 Power Injector |
| Description |
60W outdoor-rated rugged power injector that combines power and data for Cisco Aironet access points |
| Product Type |
Outdoor Power Injector |
| Compatibility |
Cisco Aironet 1560 Series and similar access points |
| Power Output |
Up to 60W over 4 wire pairs |
| Mounting Options |
Wall or pole mountable (pole mount kit optional) |
| Weatherproof Rating |
IP66, NEMA 4X |
| Specifications |
AIR-PWRINJ-60RGD1 |
| Input Voltage |
90–264 VAC |
| Output Voltage |
55 VDC ± 2% |
| Maximum Current |
2.0 A |
| Thermal Rating |
45 BTU/Hr (@264VAC) |
| Operating Temperature |
-40°C to +50°C (60W), -40°C to +55°C (30W) |
| Storage Temperature |
-40°C to +85°C |
| Humidity |
Up to 95%, non-condensing |
| Dimensions (H x W x D) |
2.75" x 5.90" x 8.42" (70 mm x 150 mm x 214 mm) |
| Weight |
2.98 lbs (1.35 kg) |
| Power Cable Length |
3.03 meters |
| Compliance |
IEEE 802.3af, 802.3at, RoHS, WEEE, CE, FCC Class B |
| Safety Approvals |
UL60950-1, UL60950-22, GS Mark |
| Surge Protection |
GR-1089-CORE Issue 4, ITU-T K.20 6kV |
| Included Accessories |
AC power cord (attached), 2x RJ45 waterproof connectors, ground cable |
| Optional Accessories |
AIR-PWRINJ-60-PMK Pole Mount Kit |
| Compatible Access Points |
Aironet 1560 Series and other outdoor APs supporting 55VDC input |
