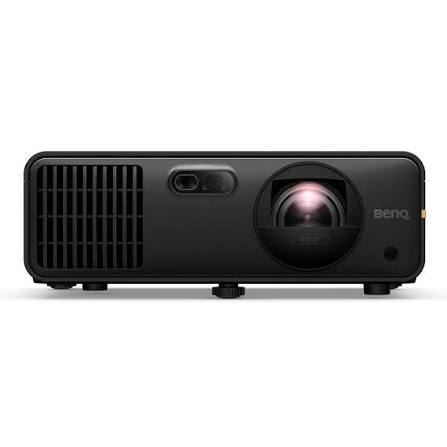

BenQ AH700ST 1080p Short Throw Laser Projector, 4000 ANSI Lumens, Auto Focus
4,000 ANSI lumens laser light source, 1920 x 1080 Full HD resolution, 0.69 to 0.83 short throw ratio, 1.2x motor zoom with autofocus, 2D keystone and corner fit, IP5X dust protection.
$2,199.00
Short Throw Laser Projection with Automated Setup
The BenQ AH700ST is a short throw DLP laser projector engineered to project bright 1920 x 1080 Full HD visuals at 4,000 ANSI lumens. Featuring a 0.69 to 0.83 throw ratio, it projects a 95-inch image from approximately 1.44 meters away, making it ideal for spaces where projection distance is limited. Motorized 1.2x zoom, auto focus, auto screen fit, and 2D keystone correction with corner fit simplify installation and image alignment. Powered by a long-lasting laser light source rated for up to 30,000 hours in Eco mode, the unit carries an IP5X dust protection rating. A default Golf Mode makes it well suited to golf simulator installations.
Key Benefits and Features
- 4,000 ANSI Lumens Laser Light Source: Delivers high brightness with up to 30,000 hours of light source life in Eco mode.
- Short Throw with Motorized Zoom: 0.69~0.83 throw ratio with 1.2x motorized zoom enables large-scale projection close to the screen.
- Automated Image Calibration: Features Auto Focus, Auto Screen Fit, and Screen Fill for rapid setup.
- 2D Keystone & Corner Fit: Adjusts horizontal and vertical keystone up to ±20 degrees for geometric alignment.
- IP5X Dust Protection: Rated IP5X for protection against dust ingress.
- Versatile Connectivity: Includes dual HDMI 2.0 ports and a USB-C port supporting DisplayPort Alt Mode.
Ideal Use Cases
- Indoor golf simulators leveraging the built-in Golf Mode
- Corporate meeting rooms and training facilities with restricted throw distances
- Classrooms and educational environments that need fast setup
- Large-screen projection setups ranging from 60 to 120 inches
Technical Specifications
- Projection System: Single DLP, 0.65" 1080P DMD
- Native Resolution: 1920 x 1080 (Full HD)
- Brightness: 4,000 ANSI Lumens
- Contrast Ratio: 3,000,000:1 (Full On/Off)
- Light Source Life: 20,000 hrs (Normal) / 30,000 hrs (Eco)
- Throw Ratio: 0.69 to 0.83 (95" @ 1.44 m)
- Projection Size: 60" to 120"
- Connections: 2x HDMI 2.0 (HDCP 1.4/2.2), 1x USB-C (DP Alt Mode, DC 5V/1A Out), 2x USB Type-A, 1x RS232 (D-sub 9pin), 1x 3.5mm Audio Output
- Power Consumption: 320 W max, 192 W normal, 136 W eco (@110V)
- Dimensions and Weight: 303.5 x 234.5 x 112.4 mm (W x D x H), 3.3 kg
Upgrade Your Golf Simulator or Meeting Room with the BenQ AH700ST
Contact our team for pricing, availability, and installation support for the BenQ AH700ST short throw laser projector.
| Brand | BenQ |
| SKU | AH700ST |
| Product Type | Short Throw DLP Laser Projector |
| Resolution | 1920 x 1080 (1080P) |
| Brightness | 4000 ANSI Lumens |
| Light Source | Laser |
| Interface | 2x HDMI 2.0 (HDCP 1.4/2.2), 1x USB Type C (DP Alt Mode, DC 5V/1A Out), 1x USB Type A (1.5A Power/FW Upgrade), 1x USB Type A (WiFi Dongle), 1x RS232 In (D-sub 9pin, Male), 1x Audio Out (Mini Jack) |
| Input Voltage | 100 to 240V AC |
| Dimensions | 303.5 x 234.5 x 112.4 mm (W x D x H) |
| Weight | 3.3 kg +/- 100 g (7.28 lbs) |
| Operating Temperature | 0 to 40°C |
| Projection System | DLP Single |
| DMD Type | 0.65" 1080P |
| Contrast Ratio | 3,000,000:1 (Full On/Full Off) |
| Display Color | 30 Bits (1.07 Billion Colors) |
| Aspect Ratio | Native 16:9 (5 Aspect Ratios Selectable) |
| Light Source Life | 20,000 h (Normal), 30,000 h (Eco) |
| Throw Ratio | 0.69 to 0.83 (95" ±3% @ 1.44 m) |
| Zoom Ratio | 1.2x (Motor Zoom) |
| Lens Control | Motor Zoom and Auto Focus |
| Keystone Correction | 2D Keystone, V: ±20°, H: ±20°, Corner Fit |
| Projection Offset | 102.5% ±2.5% |
| Projection Size | 60" to 120" |
| Resolution Support | VGA (640 x 480) to 1920 x 1080 |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15 to 135 kHz |
| Vertical Scan Rate | 23 to 120 Hz |
| Features | Auto Screen Fit, Auto Focus, Screen Fill, Golf Mode, Wi-Fi Solution |
| Built-in Speaker | 10W x1 |
| Power Consumption | 320W Max, 192W Normal, 136W Eco (@110V) |
| Standby Power Consumption | < 0.5W |
| Noise Level | 32 dBA (Normal), 29 dBA (Eco) |
| Protection Rating | IP5X Dust Proof |
| Security Features | Kensington Anti-Theft Lock Slot, Security Bar |
| OSD Languages | 23 Languages |
| Included | Remote Control (RCA012/5J.JSS06.001), Power Cord (1.8M), Quick Start Guide |
| Optional Case | Carry Bag (4G.16602.002) |
| Optional Mounting Kit | Ceiling Mount (CMG3) |
| Optional Module | Wireless USB Dongle (EZC5201BS/5J.JPT28.001) |
