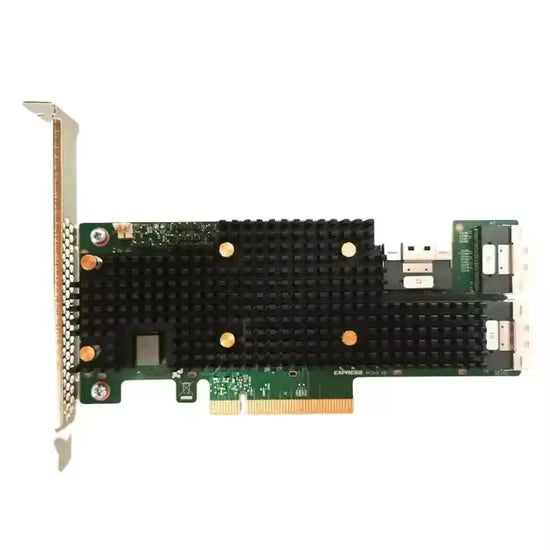

Broadcom 9600-24i 24-Port PCIe 4.0 Tri-Mode Host Bus Adapter

High-Density Tri-Mode Connectivity for Internal Storage

The Broadcom 9600-24i is a 24-port internal eHBA designed for high-connectivity server and storage deployments using SAS, SATA, and NVMe devices. Built around the SAS4024 I/O Controller, it combines an x8 PCIe Gen 4.0 host interface with Broadcom third-generation Tri-Mode technology for flexible multiprotocol storage connectivity.

The adapter supports Gen 4.0 PCIe NVMe, 24Gb/s SAS, and 6Gb/s SATA storage interfaces. Three x8 SFF-8654 connectors provide 24 internal ports, while support extends to up to 240 SAS/SATA devices and 32 NVMe devices. Broadcom also specifies hardware secure boot and attestation for the 9600 Series, along with a Unified MPI3 driver architecture.

Key Benefits and Features

• 24 internal ports for high-density direct-attached storage
• Third-generation Tri-Mode support for SAS, SATA, and NVMe devices
• PCIe Gen 4.0 x8 host interface for high-bandwidth server connectivity
• Three x8 SFF-8654 internal connectors
• Hardware secure boot and device attestation support

Ideal Use Cases

• High-port direct-attached SAS, SATA, and NVMe storage
• Cloud computing infrastructure
• Servers with large internal storage configurations
• High-connectivity storage applications

Expand Internal Storage with the Broadcom 9600-24i

Choose the Broadcom 9600-24i for systems requiring 24 internal ports, PCIe Gen 4.0 connectivity, and flexible SAS, SATA, and NVMe storage support through a single Tri-Mode eHBA.
