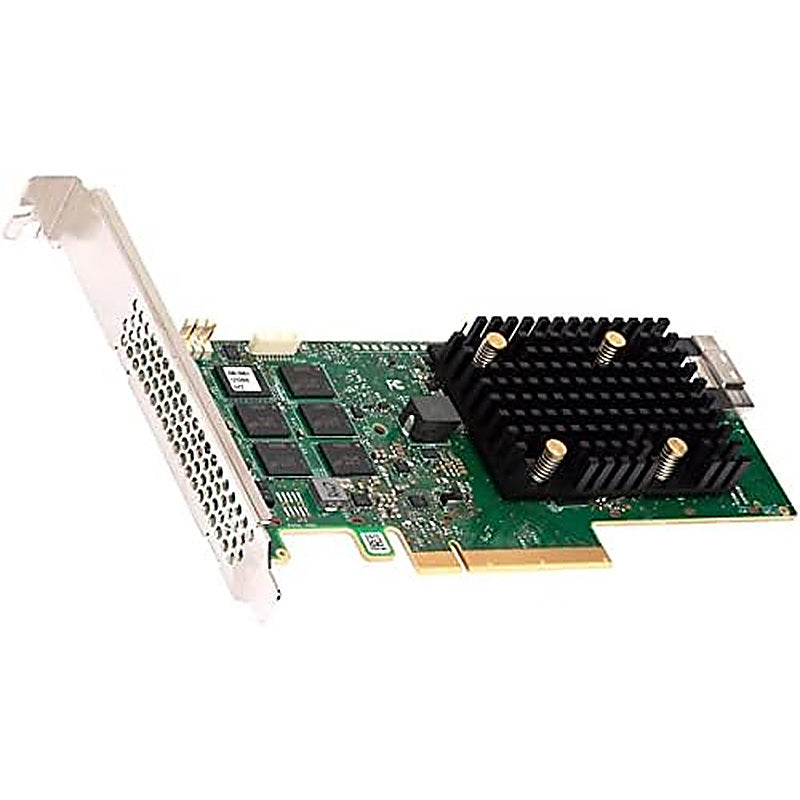

Broadcom MegaRAID 9560-16i 12Gb/s Tri-Mode Storage Adapter
16 internal ports, 12Gb/s SAS and 6Gb/s SATA, Gen 4.0 PCIe NVMe, 8GB cache memory, PCIe Gen 4.0 x8 host interface, SAS3916 controller
$1,564.00
PCIe Gen 4.0 Tri-Mode RAID Connectivity for Data Centers
The Broadcom MegaRAID 9560-16i is a 16-port internal Tri-Mode storage adapter engineered to meet high-bandwidth requirements in enterprise servers and cloud infrastructure. Built on the Broadcom SAS3916 RAID on Chip (RoC) controller and equipped with 8GB onboard cache memory, it delivers dual PCIe Gen 4.0 host and storage interfaces. The adapter concurrently supports 12Gb/s SAS, 6Gb/s SATA, and Gen 4.0 PCIe NVMe drives, providing high operational flexibility across enterprise storage backplanes.
Key Benefits and Features
- 16 internal ports supporting concurrent NVMe, SAS, and SATA storage connections
- 8GB onboard cache memory with optional CacheVault CVPM05 protection
- PCIe Gen 4.0 x8 host interface delivering transfer rates up to 16.0 GT/s per lane
- Hardware RAID support for levels 0, 00, 1, 5, 6, 10, 50, and 60
- Hardware Secure Boot establishing an initial Root of Trust to execute authenticated firmware
- Universal Backplane Management ready for SFF-TA-1001 (U.3) backplane integrations
Ideal Use Cases
- High-density direct-attached server storage environments
- Enterprise analytics applications and database infrastructure
- Virtualization and cloud computing infrastructure solutions
- High-bandwidth media processing and medical imaging workloads
Deploy Tri-Mode RAID with the Broadcom MegaRAID 9560-16i
Select the Broadcom MegaRAID 9560-16i to integrate 16-port PCIe Gen 4.0 Tri-Mode connectivity, 8GB cache, and hardware RAID protection into your high-density server architecture.
| Brand | Broadcom |
| Model | 9560-16i |
| MPN | 05-50077-00 |
| Product Type | Tri-Mode RAID Controller |
| Series | MegaRAID 9500 Series |
| Port Count | 16 internal |
| Connectors | Two x8 SFF-8654 |
| Host Interface | x8 PCIe Gen 4.0 |
| Storage Interface | 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
| Cache Memory | 8 GB |
| Typical Power | 13.21W |
| Dimensions | 155.52 mm (±0.13 mm) x 68.77 mm (±0.13 mm) |
| Operating Temperature | 0°C to 55°C |
| Operating Voltage | 12V ±8%; 3.3V ±9% |
| Controller | SAS3916 |
| RAID Levels | 0, 00, 1, 10, 5, 50, 6, 60 |
| Maximum Devices Per Controller | SAS/SATA: 240; NVMe: 32 |
| Cache Protection | CacheVault, CVPM05 |
| JBOD Mode | Supported with R0/1/10 and JBOD for SDS environments |
| Online Capacity Expansion | Supported |
| Single Controller Multipathing | Supported |
| Load Balancing | Supported |
| Stripe Size | Configurable up to 1 MB |
| Virtual Drive Support | 240 virtual drives |
| SSD Support | SSD Guard™ technology |
| SED Key Management | MegaRAID SafeStore™ Software |
| Enclosure Management | SES (inband); SGPIO (sideband); Universal Backplane Management (UBM) ready |
| Management Utilities | LSI Storage Authority (LSA); StorCLI (command-line interface); HII (UEFI Human Interface Infrastructure) |
| Operating Conditions | 0°C to 55°C; 5% to 90% non-condensing |
| Storage Conditions | -45°C to 105°C; 5% to 95% non-condensing |
| MTBF | >3,000,000 hours at 40°C |
| Regulatory Certifications | USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES-003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/UL 60950; RoHS; WEEE |
| OS Support | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
| Optional Module | CacheVault CVPM05, MPN 05-50039-00 |
