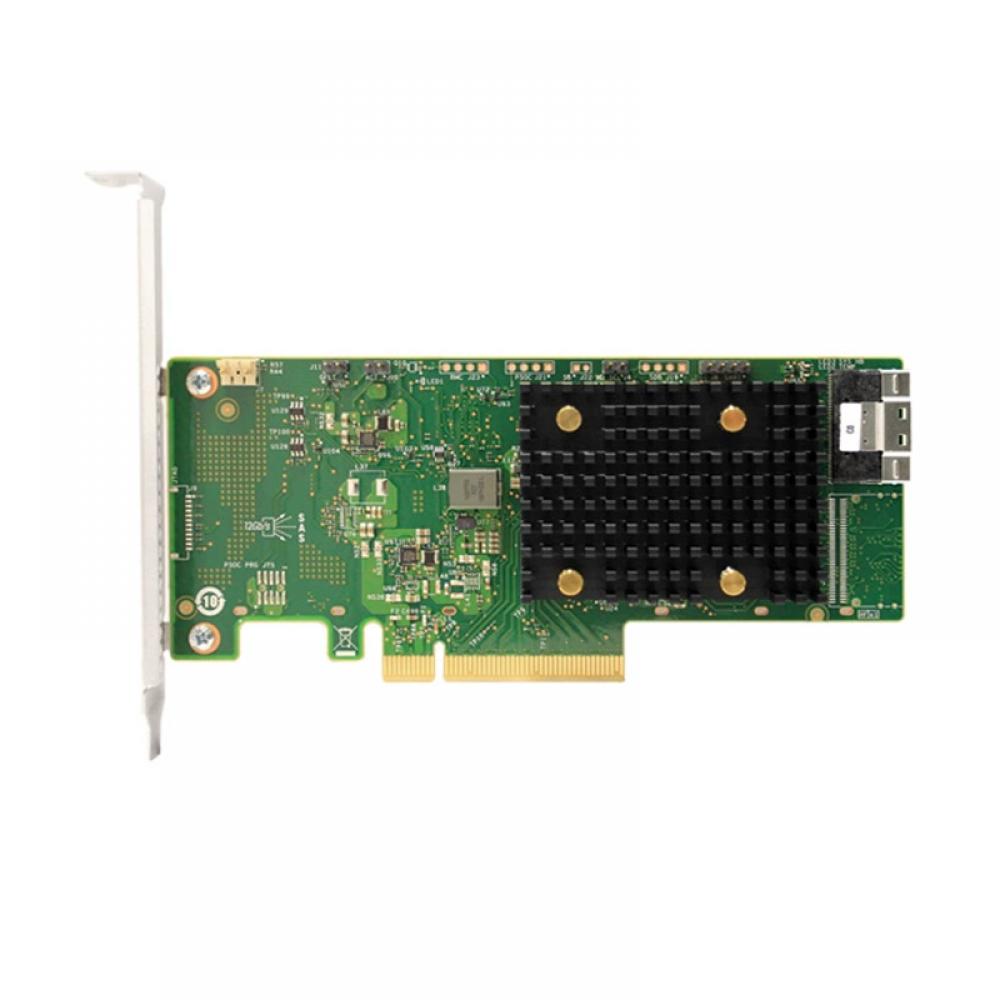

Broadcom MegaRAID 9540-8i 12Gb/s Tri-Mode Storage Adapter
8 internal ports, 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe NVMe, PCIe Gen 4.0 x8, SAS3808 controller
$253.00
PCIe Gen 4.0 Tri-Mode RAID for Internal Server Storage
The Broadcom MegaRAID 9540-8i is an eight-port internal Tri-Mode RAID controller designed for SAS, SATA, and PCIe NVMe storage environments. It combines an x8 PCIe Gen 4.0 host interface with Broadcom Tri-Mode technology, providing support for 12Gb/s SAS, 6Gb/s SATA, and Gen 4.0 PCIe NVMe storage through a single controller.
The 9540-8i uses the Broadcom SAS3808 controller and provides one x8 SFF-8654 connector. It supports up to 63 SAS/SATA devices and up to four NVMe devices per controller. The 9540-8i supports RAID levels 0, 00, 1, and 10.
Key Benefits and Features
- Eight internal ports for direct-attached server storage
- Tri-Mode support for SAS, SATA, and PCIe NVMe devices
- PCIe Gen 4.0 x8 host interface for high-bandwidth connectivity
- SAS3808 controller with support for RAID 0, 00, 1, and 10
- Universal Backplane Management ready for multiprotocol storage environments
Ideal Use Cases
- Direct-attached internal server storage
- Mixed SAS, SATA, and NVMe deployments
- Data center and cloud storage infrastructure
- Enterprise server storage requiring PCIe Gen 4.0 connectivity
Deploy Tri-Mode RAID with the Broadcom MegaRAID 9540-8i
Choose the Broadcom MegaRAID 9540-8i for server platforms requiring eight internal ports, PCIe Gen 4.0 bandwidth, and flexible SAS, SATA, and NVMe storage connectivity with hardware RAID support.
| Brand | Broadcom |
| Model | 9540-8i |
| MPN | 05-50134-03 |
| Product Type | Tri-Mode RAID Controller |
| Series | MegaRAID 9500 Series |
| Port Count | 8 internal |
| Connector | One x8 SFF-8654 |
| Host Interface | x8 PCIe Gen 4.0 |
| Storage Interface | 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
| Typical Power | 6.0W |
| Dimensions | 155.52 mm (±0.13 mm) x 68.77 mm (±0.13 mm) |
| Operating Temperature | 0°C to 55°C |
| Operating Voltage | 12V ±8%; 3.3V ±9% |
| I/O Controller | SAS3808 |
| RAID Levels | 0, 00, 1, 10 |
| Maximum Devices Per Controller | SAS/SATA: 63; NVMe: 4 |
| Virtual Drive Support | 32 virtual drives |
| Storage Interface | 12Gb/s SAS; 6Gb/s SATA; Gen 4.0 PCIe (NVMe) |
| PCIe Host Interface | x8 PCIe Gen 4.0 |
| PCIe Lane Support | x8, x4, x2, x1 lanes at up to 16.0 GT/s per lane, full duplex |
| Universal Backplane Management | UBM ready |
| SSD Support | SSD Guard™ technology |
| SED Key Management | MegaRAID SafeStore™ Software |
| Enclosure Management | SES (inband); SGPIO (sideband) |
| Management Utilities | LSI Storage Authority (LSA); StorCLI (command-line interface); HII (UEFI Human Interface Infrastructure) |
| Operating Conditions | 0°C to 55°C; 5% to 90% non-condensing |
| Storage Conditions | −45°C to 105°C; 5% to 95% non-condensing |
| MTBF | >3,000,000 hours at 40°C |
| Regulatory Certifications | USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES-003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/UL 60950; RoHS; WEEE |
| OS Support | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
