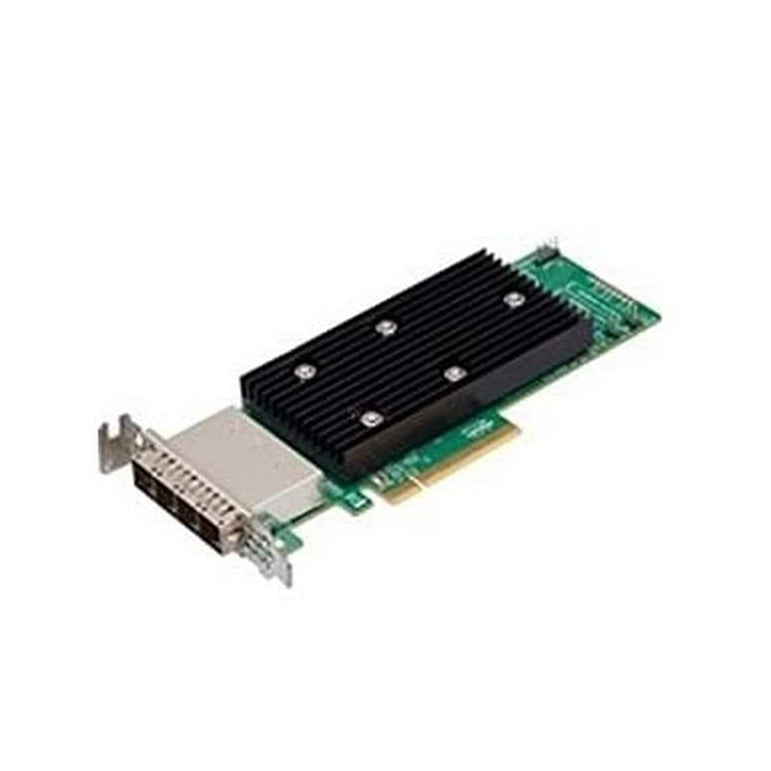

Broadcom SAS 9305-16e 16-Port External 12Gb/s SAS HBA
High-Connectivity External SAS Storage for Servers
The Broadcom SAS 9305-16e is a 16-port external host bus adapter designed for direct-attached storage and external storage environments requiring high-connectivity SAS and SATA interfaces. Built on the SAS 3216 Fusion-MPT 2.5 I/O controller, the adapter provides 12Gb/s SAS connectivity through four external Mini-SAS HD SFF8644 connectors.
An eight-lane PCI Express 3.0 host interface supports high-bandwidth communication between the server and attached storage. The 9305-16e supports SSDs, HDDs, and tape drives and provides cable support for passive copper, active copper, and active optical connections.
Key Benefits and Features
- 16 external ports for SAS and SATA storage connectivity
- 12Gb/s SAS 3.0 connectivity with 1200 MB/s bandwidth per port in each direction
- PCIe 3.0 x8 host interface with 8000 MB/s half-duplex burst transfer rate
- Four Mini-SAS HD SFF8644 x4 connectors
- Supports SSDs, HDDs, and tape drives
Ideal Use Cases
- Direct-attached storage deployments
- External SAS and SATA storage connectivity
- High-end servers and appliances
- Connections to large-scale storage enclosures
Expand External Storage Connectivity with the Broadcom 9305-16e
Choose the Broadcom SAS 9305-16e for systems that require 16 external SAS ports, 12Gb/s SAS connectivity, PCIe 3.0 x8 host connectivity, and flexible external storage cabling in a low-profile host bus adapter.
| Brand | Broadcom |
| Model | 9305-16e |
| MPN | 05-25704-00 |
| Product Type | SAS Host Bus Adapter |
| Series | SAS 9305 |
| Port Count | 16-port, external |
| Interface | x8 lane, PCIe 3.0 |
| Data Transfer Rate | 12Gb/s SAS 3.0 Compliant |
| Form Factor | Low Profile |
| Physical Dimensions | 6.600” x 2.712” (167.65 mm x 68.90 mm) |
| Operating Voltage | +12V +/-8%; 3.3V +/-9% |
| Power | Typical: 13.0W |
| I/O Controller | SAS 3216 / Fusion MPT 2.5 |
| Connectors | Mini-SAS HD SFF8644 Four (x4) |
| SAS Bandwidth | 1200 MB/s per port (each direction) |
| Port Configurations | 16 ea, x1 ports (individual drives); 4 ea, x4 wide ports; 2 ea, x8 wide ports |
| PCI Data Burst Transfer Rate | Half Duplex, x8, PCIe 3.0, 8000 MB/s |
| Brackets | Low Profile & Full Height |
| Cable Support | Passive Copper, Active Copper, Active Optical |
| LED Management | SES |
| Device Support | 1024 Non-RAID devices |
| Supported Drive Types | SSDs, HDDs and tape drives |
| SAS Data Transfer Rates | 12, 6, and 3 Gb/s per lane |
| SATA Data Transfer Rates | 6 and 3Gb/s per lane |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -45°C to 105°C |
| Relative Humidity | 5 to 90% non-condensing |
| MTBF | >3,500,000 hours at 40°C |
| Regulatory Certifications | USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES-003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/UL 60950; RoHS; WEEE |
| OS Support | Microsoft Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, Fedora, Debian |
