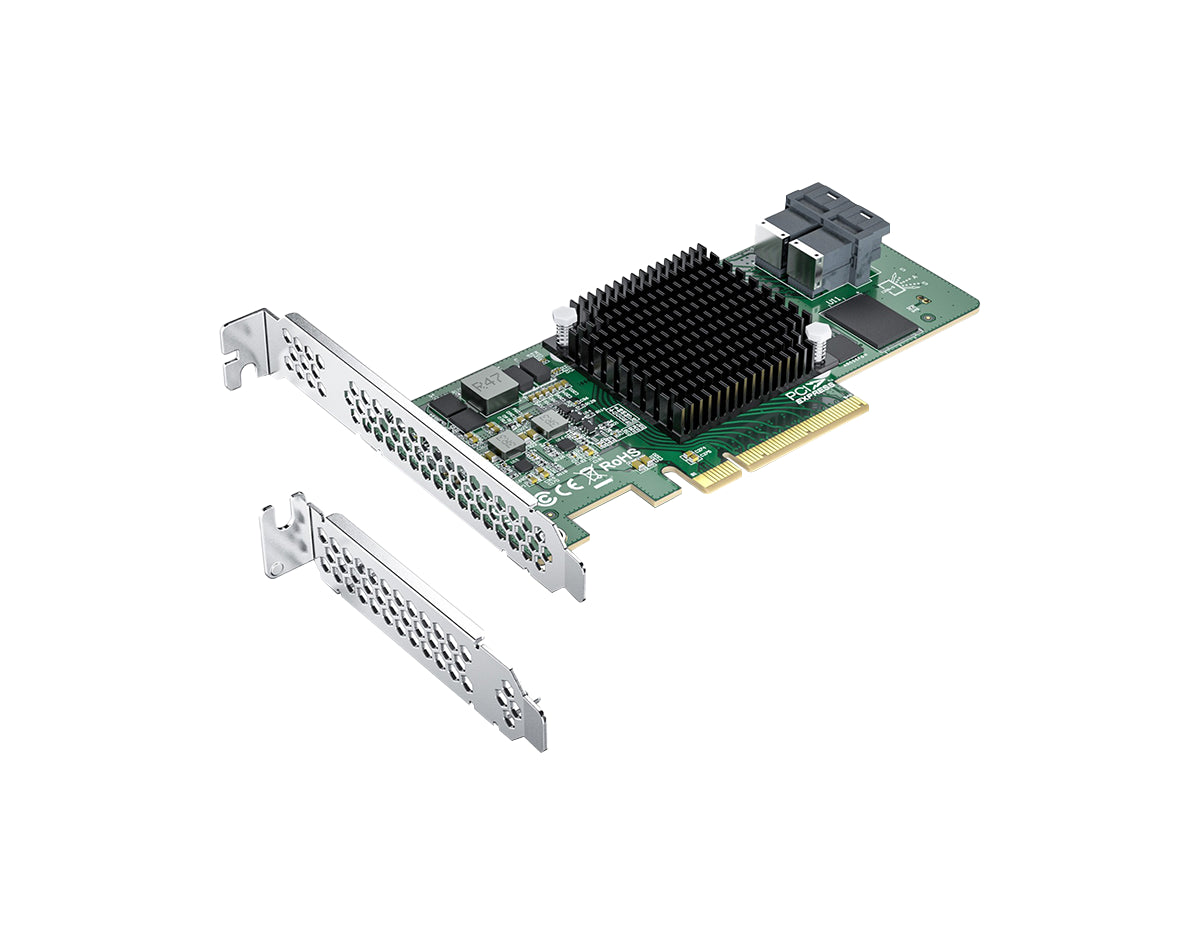

Broadcom LSI 9300-8i 8-Port 12Gb/s SAS Host Bus Adapter

High-Speed Internal SAS Connectivity for Servers and Storage

The Broadcom LSI 9300-8i is an eight-port internal SAS host bus adapter designed to provide high-performance storage connectivity for servers and appliances. Built around the SAS 3008 Fusion-MPT controller, the adapter supports 12Gb/s SAS connectivity and uses an eight-lane PCI Express 3.0 host interface for high-bandwidth storage applications.

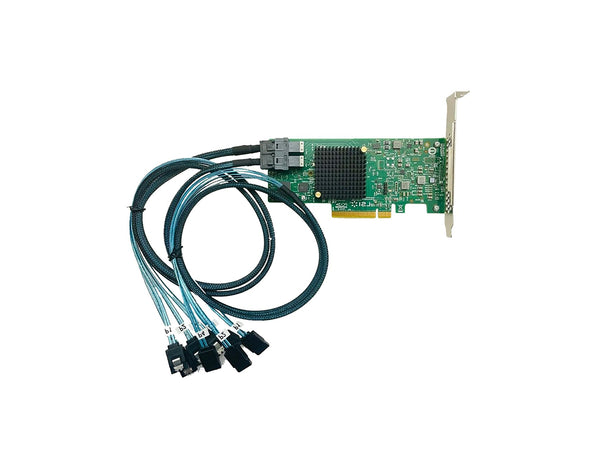

Two Mini-SAS HD SFF8643 connectors provide eight internal ports, while support for SAS and SATA devices gives system builders flexibility when connecting compatible SSDs, HDDs, and tape drives. Its low-profile form factor is suited to space-conscious server configurations.

Key Benefits and Features

• Eight internal ports for connecting SAS and SATA storage devices
• 12Gb/s SAS data transfer capability for high-performance storage environments
• PCIe 3.0 x8 host interface with up to 8000 MB/s half-duplex burst transfer rate
• SAS 3008 Fusion-MPT 2.5 controller architecture
• Supports SSDs, HDDs, and tape drives

Ideal Use Cases

• High-end server internal storage configurations
• Storage-focused server and appliance deployments
• Systems requiring multiple internal SAS or SATA drives
• High-bandwidth storage connectivity through PCIe 3.0

Upgrade Internal Storage Connectivity with the Broadcom 9300-8i

Deploy the Broadcom LSI 9300-8i when your server or storage platform requires eight internal ports, 12Gb/s SAS connectivity, and a PCIe 3.0 x8 host interface in a compact low-profile adapter.
