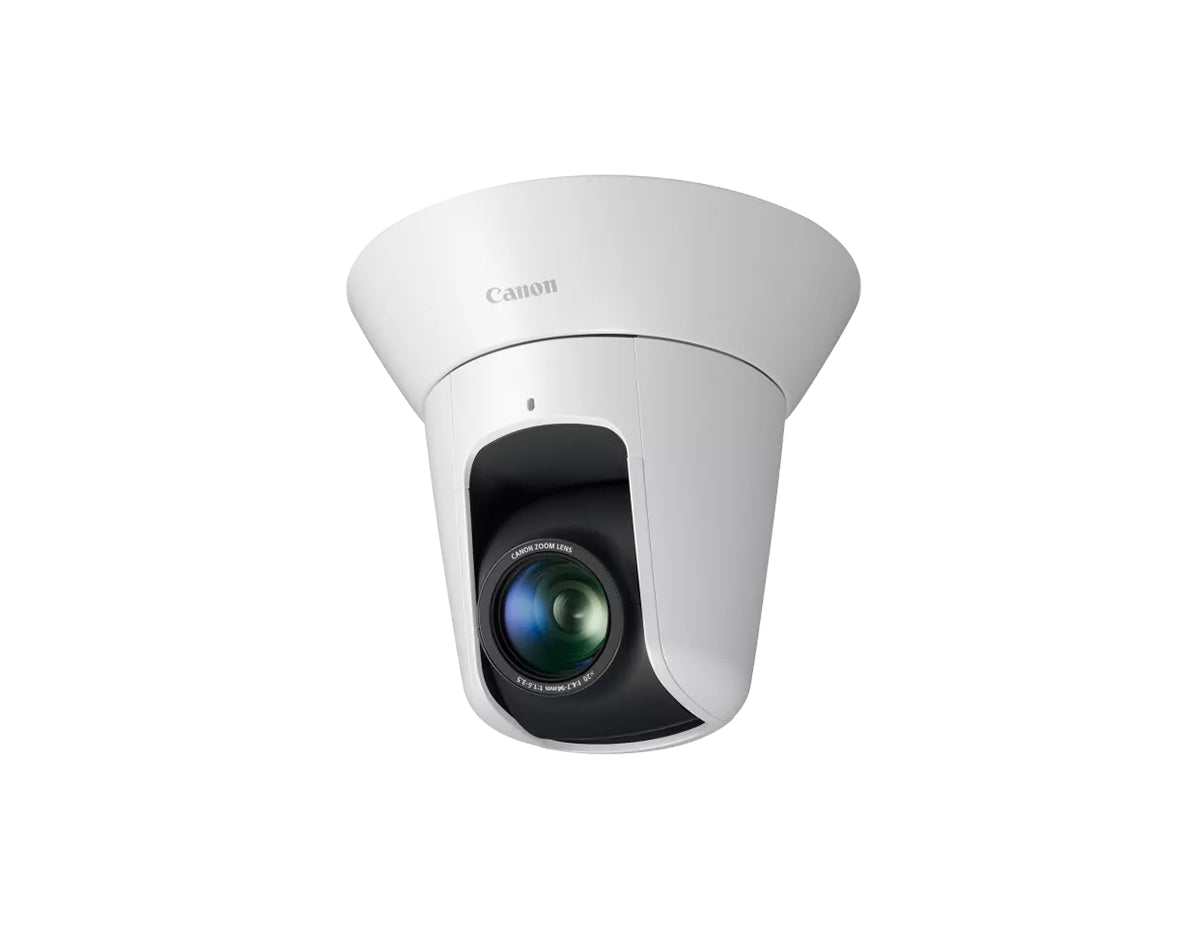

Canon VB-H47W Network Camera Titanium White (5715C001)

Name: Canon VB-H47W Network Camera Titanium White (5715C001)
Brand: Axis
Price: 3488.0 USD
Availability: InStock

Part Number: 5715C001

Technical Details

Indoor Full HD PTZ IP security camera with 20x optical zoom, powerful 320x total zoom, excellent low-light performance down to 0.02 lux in color, WDR, intelligent functions, and flexible indoor installation for wide-area coverage and detailed monitoring.

$3,488.00

Net 30 or as low as $/month

Apply Now

Product & Solutions Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Full HD PTZ coverage with powerful 320x zoom and low-light clarity

The Canon VB-H47 Full HD PTZ network camera combines a powerful 20x optical zoom lens with 16x digital zoom for up to 320x total zoom, enabling detailed identification of subjects across wide indoor areas. Its excellent low-light performance, WDR, and advanced image controls help maintain clear, usable footage even in challenging lighting conditions with strong contrasts and dim scenes.

Designed for flexible indoor deployment, the VB-H47 delivers 1080p video at up to 60 fps using efficient H.265, H.264, or JPEG streaming, with support for up to 30 simultaneous clients. Intelligent functions, secure network protocols, PoE support, and edge recording make it a robust choice for professional security, monitoring, and operational awareness applications.

Key Benefits

Capture fine detail at long distances with 20x optical zoom and 320x total zoom for wide-area coverage and close-up identification.
Maintain high image quality in low light thanks to 0.02 lux color and 0.003 lux monochrome sensitivity, WDR, and advanced noise reduction.
Stream smooth, detailed video with Full HD 1080p at up to 60 fps using efficient H.265 or H.264 compression.
Improve situational awareness with built-in intelligent analytics for motion, intrusion, tampering, and more.
Simplify installation and integration through PoE, ONVIF Profiles S/G/T support, and flexible mounting accessories.
Enhance reliability with edge recording to SD card, robust environmental operating range, and professional EMC and safety certifications.

Ideal Use Cases

Indoor security monitoring of retail floors, lobbies, and corridors where both wide overviews and close-up zoom are required.
Surveillance of public spaces, transport hubs, or campuses needing continuous PTZ tracking and analytics-driven alerts.
Monitoring warehouses, production areas, or logistics facilities where operators must inspect specific zones in high detail.
Corporate, education, and healthcare environments requiring secure, standards-based IP video with centralized management.
Any indoor installation that benefits from ceiling-mounted PTZ coverage, intelligent detection, and edge-based recording.

Technical Specifications Summary

Image sensor: 1/2.8"" CMOS, approx. 2.0 MP, progressive scan
Lens & zoom: 20x optical zoom (4.7–94 mm), 16x digital zoom, F1.6–F3.5, auto focus
Field of view: 16:9 HFOV 62.4°–3.3°, VFOV 36.3°–1.9°
Low-light performance: 0.02 lux color, 0.003 lux monochrome (F1.6, 1/30 s, 50 IRE)
Video: JPEG, H.264, H.265; up to 1920 x 1080 at 60 fps (60 Hz) / 50 fps (50 Hz)
Network & protocols: RJ45 100Base-TX; IPv4/IPv6, HTTP, RTP/RTSP, SNMP, ONVIF Profiles S/G/T
Audio: G.711 μ-law, AAC; full-/half-duplex; 3.5 mm LINE IN/MIC IN and LINE OUT
Storage: SD/SDHC/SDXC memory card support (Class 10 recommended) for edge recording
Power & consumption: PoE (IEEE802.3at Type 1), 12 V DC, optional AC adapter; max. approx. 9.1–9.7 W
Environment: Operating -10 °C to +50 °C, 5–85% RH; indoor ceiling-mounted design
Dimensions & weight: Φ132 x 155 mm; approx. 1100 g

Upgrade Your Operations

Deploy the Canon VB-H47 to gain reliable, high-detail indoor PTZ coverage with efficient streaming, intelligent analytics, and flexible integration into your existing IP video system.

Properties

Model	Canon VB-H47W Network Camera - Titanium white (5715C001)
Product Type	Network Camera
Image Sensor	1/2.8 type CMOS, approx. 2.0 million effective pixels, progressive scan
Optical / Digital Zoom	20x optical zoom lens with 16x digital zoom (up to 320x total), auto focus
Angle of View	Horizontal: 62.4° (W) – 3.3° (T); Vertical: 36.3° (W) – 1.9° (T)
Day / Night	IR cut filter with Auto / Day Mode / Night Mode switching
Min. Illumination	Color: 0.02 lux (F1.6, 1/30 sec., 50 IRE); Monochrome: 0.003 lux (F1.6, 1/30 sec., 50 IRE)
Video Compression	JPEG, H.264, H.265
Max Resolution / Frame Rate	1920 x 1080, up to 60 fps (60 Hz) / up to 50 fps (50 Hz)
Network Interface	LAN x 1 (RJ45, 100Base-TX, auto)
Memory Card Support	SD, SDHC, SDXC memory cards supported (Class 10 recommended)
Intelligent Functions	Moving object, abandoned/removed object, camera tampering, passing, intrusion, volume, and face detection
Operating Temperature	-10 °C to +50 °C (+14 °F to +122 °F) for DC and PoE
Operating Humidity	5% to 85% RH (without condensation)
Storage Temperature	-30 °C to +60 °C (-22 °F to +140 °F)
Storage Humidity	5% to 90% RH (without condensation)
Power Supply	PoE via LAN connector (IEEE802.3at Type 1 compliant), 12 V DC, or optional AC adapter PA-V18 (100–240 V AC)
Power Consumption	PoE: max. approx. 9.1 W; DC: max. approx. 7.9 W; AC adapter: max. approx. 9.2–9.7 W
Dimensions (Φ x H)	Φ132 x 155 mm (Φ5.20 x 6.10 in.), camera only (excluding ceiling plate)
Weight	Approx. 1100 g (2.43 lb.)
ONVIF Profiles	Profile S, Profile G, Profile T
Compliance	EN 55032 Class A, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS EN55032 Class A, CNS13438 Class A, EN 55035, IEC EN 63000:2018, CNS15663, IEC/EN 62368-1 3rd ed., UL 62368-1 3rd ed.

Specifications

Image Sensor & Optics	1/2.8 type CMOS, approx. 2.0 million effective pixels, progressive scan. 20x optical zoom (4.7 mm (W) – 94 mm (T)), 16x digital zoom, auto focus. F-number: F1.6 (W) – F3.5 (T). 16:9 FOV: Horizontal 62.4° (W) – 3.3° (T); Vertical 36.3° (W) – 1.9° (T). 4:3 FOV: Horizontal 47.9° (W) – 2.5° (T); Vertical 36.3° (W) – 1.9° (T). Day/Night switch with IR cut filter: Auto / Day Mode / Night Mode.
Low-Light Performance	Day Mode (color): 0.02 lux (F1.6, shutter speed 1/30 sec., 50 IRE). Night Mode (monochrome): 0.003 lux (F1.6, shutter speed 1/30 sec., 50 IRE). Shooting distance from front of lens: Day Mode 0.3 m (W) / 1.0 m (T) to infinity; Night Mode 1.0 m (W) / 1.5 m (T) to infinity. With dome enabled: Day Mode 2.0 m (W, T) to infinity; Night Mode 1.0 m (W) / 2.2 m (T) to infinity.
Exposure & Image Control	Shutter speed: 1/1, 1/2, 1/4, 1/8, 1/13, 1/15, 1/25, 1/30, 1/50, 1/60, 1/100, 1/120, 1/250, 1/360, 1/500, 1/720, 1/1000, 1/1400, 1/2000, 1/3000, 1/4000, 1/6000, 1/8000, 1/10000, 1/16000 sec. Exposure modes: Auto, Auto (Flickerless), Auto (Shutter-priority AE), Auto (Aperture-priority AE), Manual. White balance: Auto / Manual. Metering modes: Center-weighted, Average, Spot, Specify Area. Exposure compensation: 13 levels. WDR, Smart Shade Control, Haze Compensation, AGC Limit, Motion-adaptive NR available. Image stabilizer available (except at maximum frame rate of 60 fps / 50 fps).
PTZ Performance	Pan angle range: 340° (±170°). Tilt angle range: 100° (ceiling-mounted position: -90° to +10° when camera horizontal angle is 0°). Pan speed: max. 150°/sec.; Tilt speed: max. 150°/sec. Presets: up to 64 preset positions (+ Home Position). Preset tour routes: up to 5.
Video Streaming	Compression: JPEG, H.264, H.265. Resolutions (JPEG/H.264/H.265): 1920 x 1080, 1280 x 720, 960 x 540, 640 x 360, 480 x 270, 320 x 180, 1280 x 960, 640 x 480, 320 x 240. Frame rate (60 Hz): 1, 5, 7.5, 10, 15, 30, 60 fps. Frame rate (50 Hz): 1, 2.5, 5, 6.25, 10, 12.5, 25, 50 fps. Video quality: 10 levels (JPEG, H.264, H.265). Simultaneous clients: max. 30 Clients + 1 Admin Client (H.264 max. 10 clients, H.265 max. 10 clients). Bit rate control: CBR, VBR, MBR (Maximum Bit Rate). ADSR (Area-specific Data Size Reduction) available.
Network & Protocols	Network terminal: RJ45, 100Base-TX (auto). Protocols: IPv4, IPv6, TCP/IP, UDP, HTTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, ONVIF, WV-HTTP (Canon proprietary). ONVIF profiles: Profile S, Profile G, Profile T.
Security Features	User levels: Administrator, Authorized user, Guest user (control varies by level). Access control: User authentication (user name and password), host access restrictions (IPv4, IPv6). IEEE802.1X: EAP-TLS, EAP-TTLS, EAP-PEAP. Encrypted communications: SSL/TLS.
Audio	Compression: G.711 μ-law (64 kbps), AAC (16/48 kHz, 16/32/64/96/128 kbps). Communication: Full-duplex (two-way) / half-duplex, via RTP and Canon Sound Transfer Protocol. Audio input terminal: 3.5 mm mono mini-jack (LINE IN / MIC IN). Audio output terminal: 3.5 mm mono mini-jack (LINE OUT). Audio file playback available.
Storage & Edge Recording	Memory card: SD, SDHC, SDXC supported (Class 10 recommended). SD card backup recording supported.
Interfaces & I/O	Network: LAN x 1 (RJ45, 100Base-TX, auto). Audio: 3.5 mm mono mini-jack for LINE IN/MIC IN and LINE OUT. External device I/O: 2 x inputs, 2 x outputs.
Intelligent Functions & Events	Intelligent functions: Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection, Intrusion Detection, Volume Detection, Face Detection. Event triggers: External device input, Intelligent Function, Timer, Day/Night Mode switching. Linked events: up to 2; conditions: OR, AND (with or without sequence). Image upload: FTP/FTPS/HTTP/HTTPS/SMTP/SMTPS (e-mail). Event notification: HTTP/HTTPS/SMTP/SMTPS (e-mail). Log notification: SMTP/SMTPS (e-mail). Panorama, view restriction, privacy mask, enhanced digital zoom, on-screen display available.
Applications & Language Support	Camera software: Camera Management Tool, Recorded Video Utility. Web interfaces: Page, Camera Viewer, Mobile Camera Viewer in multiple languages including German, English, Spanish, French, Italian, Russian, Thai, Korean, Simplified Chinese, Japanese. Recorded Video Utility and Camera Management Tool additionally support Polish and Turkish.
Environmental & Power	Operating temperature (DC, PoE): -10 °C to +50 °C (+14 °F to +122 °F). Operating humidity: 5% to 85% RH (non-condensing). Storage temperature: -30 °C to +60 C (-22 °F to +140 F). Storage humidity: 5% to 90% RH (non-condensing). Power supply: PoE (IEEE802.3at Type 1 compliant), 12 V DC, optional AC adapter PA-V18 (100–240 V AC). Power consumption: PoE max. approx. 9.1 W; DC max. approx. 7.9 W; AC adapter max. approx. 9.2–9.7 W.
Mechanical & Dimensions	Dimensions (Φ x H): Φ132 x 155 mm (Φ5.20 x 6.10 in.), camera only (excluding ceiling plate). Weight: approx. 1100 g (2.43 lb.). Pan/Tilt mechanism and dome design optimized for indoor ceiling mounting with wide movement range.
Certifications & Standards	EMC and emissions: EN 55032 Class A, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS EN55032 Class A, CNS13438 Class A, EN 55035, IEC EN 63000:2018, CNS15663. Safety: IEC/EN 62368-1 3rd ed., UL 62368-1 3rd ed.

Accessories

Included	VB-H47 main unit, Power connector
Optional accessories	Indoor Dome Housing (DR41-C-VB, 6816B001). Indoor Dome Housing (DR41-S-VB, 6816B002). Ceiling Mount Cover (SS40-W-VB, 4962B005). Ceiling Mount Cover (SS40-B-VB, 4962B002). Pendant Mounting Kit (PC600-VB, 9918B001).
