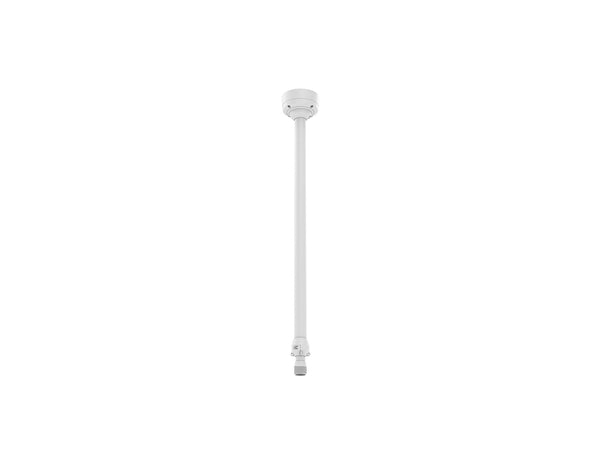

Axis T91B50 Telescopic Ceiling Mount

The Axis T91B50 Telescopic Ceiling Mount provides a robust and flexible solution for installing PTZ and fixed dome cameras in high-ceiling environments. This expandable ceiling mount allows for easy length adjustments, extending up to 2 meters (79 inches) with the option to further extend using additional pipes. Designed to withstand impacts, the mount can swing upon contact, preventing damage if hit by forklifts or tall vehicles. Additionally, it supports installation on sloped ceilings thanks to its ball joint, ensuring that the camera remains level.

Key Features:

• Flexible Installation: Adjustable length up to 2 meters (79 inches) with optional extension pipes for lengths up to 5 meters (197 inches).
• Robust Design: Powder-coated aluminum, NEMA 4X-rated for corrosion protection and IK10 impact-resistant for durability in tough environments.
• Swivel Action: ±45° pivot angle allows the mount to swing upon impact, reducing the risk of damage.
• Indoor and Outdoor Use: Suitable for both indoor and outdoor installations, providing versatility across different settings.
• Compatibility: Supports Axis PTZ domes and fixed domes with a 1.5” NPS thread, making it adaptable to a wide range of Axis cameras.

Technical Overview:

• Recommended for: Installing Axis PTZ and fixed dome cameras in high-ceiling environments, suitable for both indoor and outdoor applications.
• Material: Powder-coated aluminum with NEMA 4X-rated corrosion protection and IK10 impact resistance.
• Mounting Options: Ceiling installation with adjustable length; compatible with extension pipes for extended lengths.
• Pivot Angle: ±45° for swivel action to prevent damage.
• Dimensions: Minimum length: 1151 mm (45 in); Maximum length: 2136 mm (84 in).
• Weight: 4.1 kg (9 lb).
• Maximum Load: Supports up to 10 kg (22 lb).
• Compliance: IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, EN 50581, IEC/EN 62262 IK10, NEMA 250 Type 4X corrosion protection.

You can check the related tab for the Axis T91B50 datasheet.
