| Included | Installation guide; Pre-mounted cable gaskets; Pre-mounted DIN rails; Cable clamps; Pre-mounted power cover for MCB fuse |
| Optional | AXIS Cabinet Lock A; AXIS Door Switch A; AXIS T98-VE Sunshield; AXIS T95A64; AXIS T95A67 |
[/accessories]
Reliable Outdoor Fiber Connectivity with Rugged Protection

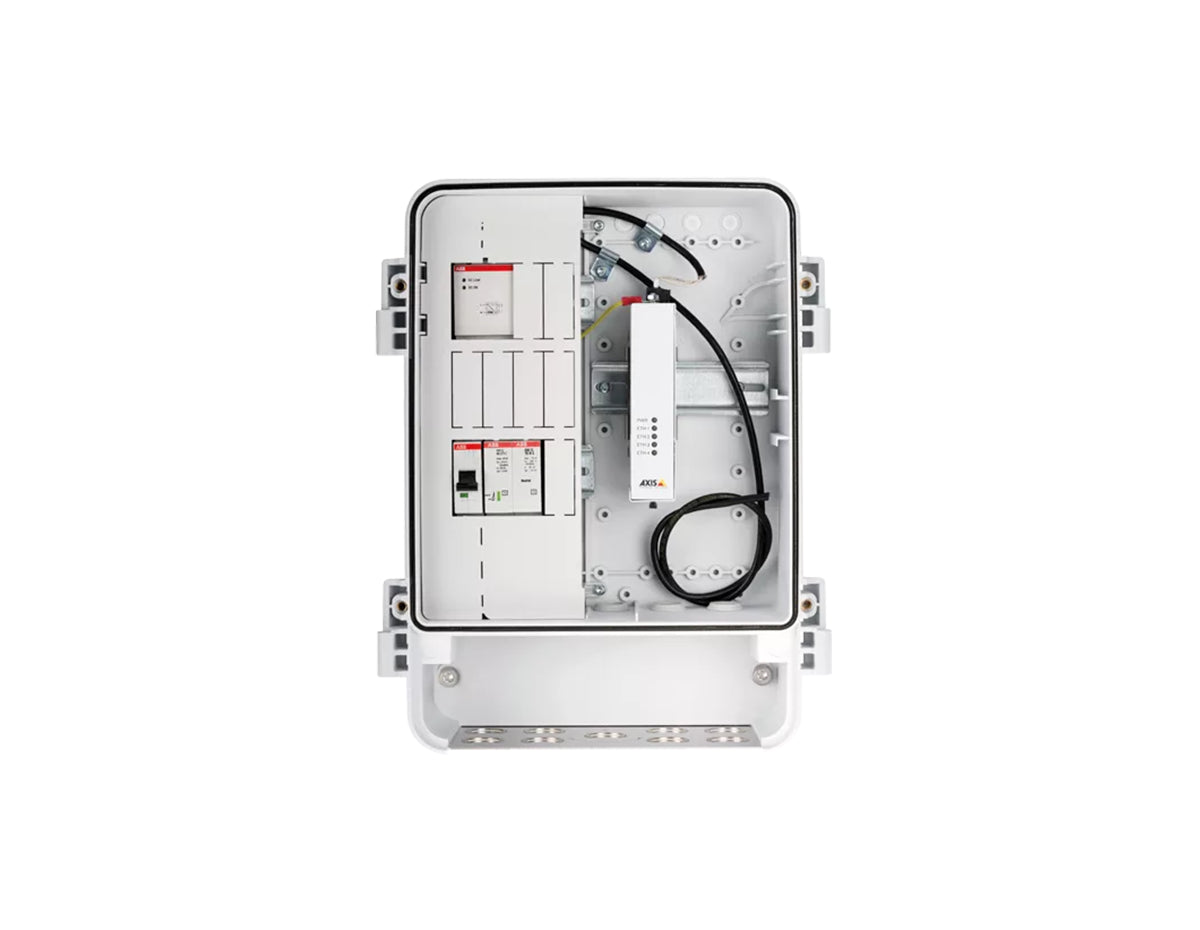

The AXIS T98A15-VE (5505-351) Media Converter Cabinet A 120 V delivers a complete, pre-configured outdoor solution for secure fiber-based installations. Designed specifically for Axis cameras, it integrates a 12 V DC power supply, electrical safety kit, and media converter to streamline deployment. Its IK10 vandal resistance, IP66 weather protection, and wide operating temperature range ensure reliable performance in harsh environments.
This cabinet is engineered to safeguard critical network components against dust, water, ice, vibration, and tampering—making it ideal for demanding surveillance, municipal, and critical infrastructure environments.
Key Benefits & Features
- Pre-configured media converter: Integrated 10/100 Mbps RJ45 and dual 100/1000 Mbps SFP ports simplify fiber installation.
- Rugged outdoor-ready build: Polycarbonate housing with stainless steel mounting plate provides IP66 and IK10 protection.
- Reliable power delivery: 120 V AC input with 12 V DC, 20 W output meets camera temperature and power requirements.
- Wide operating temperature: Stable performance from -40 °C to 65 °C (-40 °F to 149 °F) ensures year-round reliability.
- Easy installation: Pre-mounted gaskets, DIN rails, cable clamps, and power safety components reduce on-site labor.
Ideal Use Cases
- City surveillance deployments requiring tamper-resistant fiber connectivity
- Critical infrastructure sites needing vandal-proof, weather-protected housings
- Outdoor Axis camera installations using 12 V DC power
- Remote or exposed environments where equipment security is essential
- Installations requiring standalone cabinet-mounted networking equipment
Technical Specifications
- Power Input: 120 V AC (90–175 V AC), Max. 4 A
- Power Output: 12 V DC, 20 W
- Connectors: 2x RJ45 (10/100 Mbps), 2x SFP (100/1000 Mbps)
- Supported Cameras: Models using 12 V DC input
- Casing: Polycarbonate cabinet with stainless steel mounting plate
- Weather Rating: IP66, NEMA 250 Type 4X
- Impact Resistance: IK10 vandal protection
- Operating Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
- Humidity: 10–100% RH (condensing)
- Weight: 4.4 kg (9.7 lb)
Upgrade Your Outdoor Infrastructure Today
Enhance your surveillance reliability with the durable AXIS T98A15-VE Media Converter Cabinet A. Order now.
