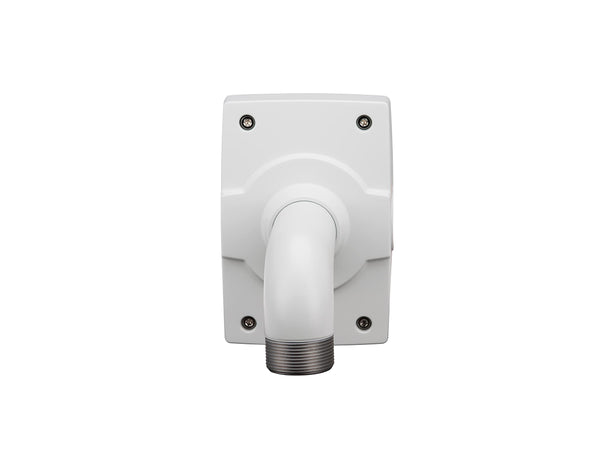

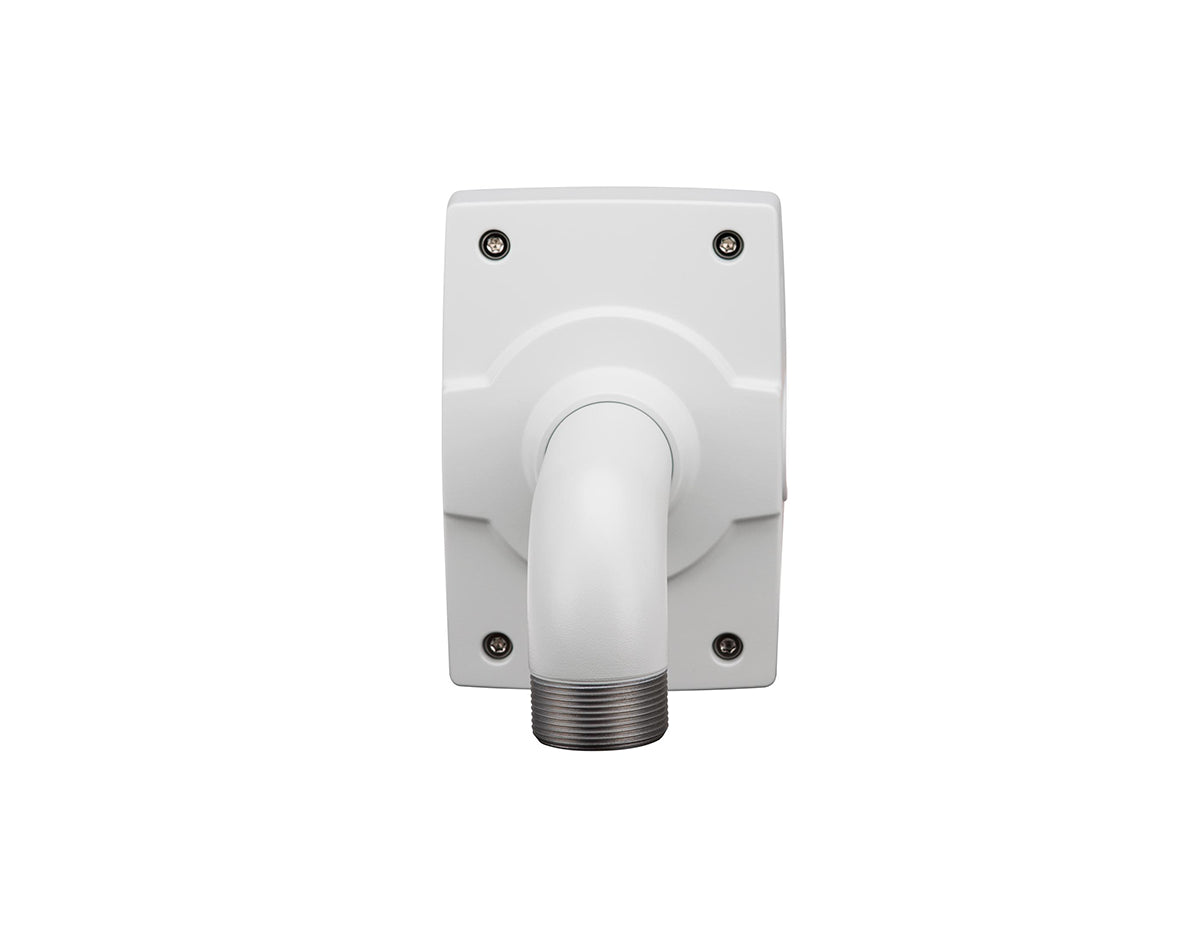

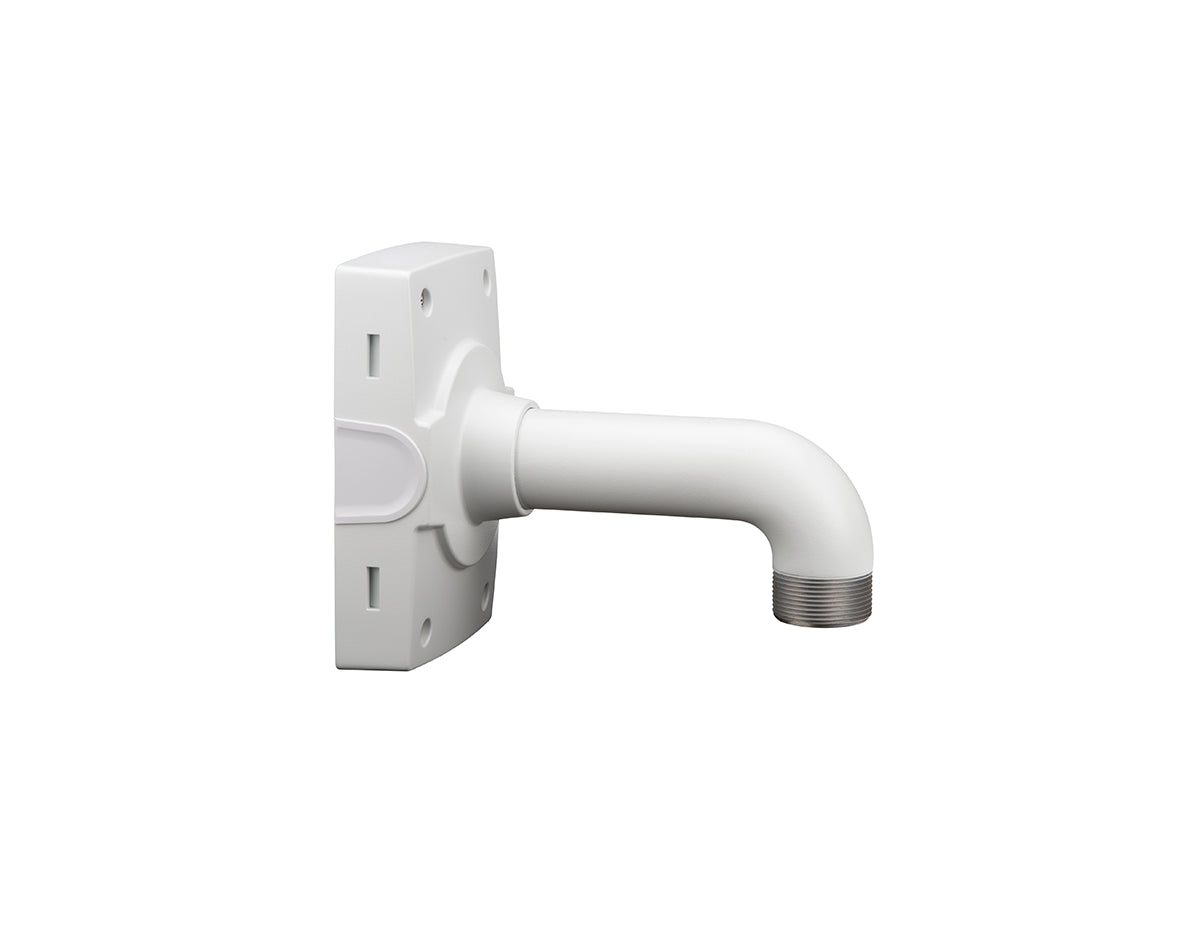

AXIS T91D61 Wall Mount 1.5” NPS

The AXIS T91D61 Wall Mount is a robust and durable mounting solution designed for both indoor and outdoor environments. It features a 1.5" NPS thread, making it compatible with Axis fixed dome pendant kits and ACI 3/4” conduit adapters. With IK10-rated vandal resistance and weatherproof construction, the T91D61 ensures secure and reliable installation for Axis cameras. The mount allows flexible cable routing through the back hole or via a conduit connection through the side, providing versatility in installation.

Key Features:

• 1.5" NPS Thread: Compatible with Axis fixed dome pendant kits and ACI conduit adapters for versatile camera installations.
• Robust Construction: IK10-rated for vandal resistance and designed for both indoor and outdoor use.
• Flexible Cable Routing: Cable can be routed through the back hole or via side conduit connection.
• Weatherproof Design: Suitable for harsh outdoor environments with durable materials and a weather-resistant finish.
• Maximum Load: Supports up to 15 kg (33 lb) of equipment for reliable, heavy-duty use.

Technical Specifications:

• Material: Aluminum
• Dimensions: 140 x 268 x 196 mm (5 1/2 x 10 1/2 x 7 3/4 in)
• Weight: 1.4 kg (3.1 lb)
• Maximum Load: 15 kg (33 lb)
• Cable Routing: Back: Cable hole, Side: Cable conduit holes M20 (3/4")
• Approvals: IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, EN 50581, IEC 62262 IK10
• Environment: Indoor and outdoor

For more information about the AXIS T91D61 Wall Mount, visit the Axis product page.
