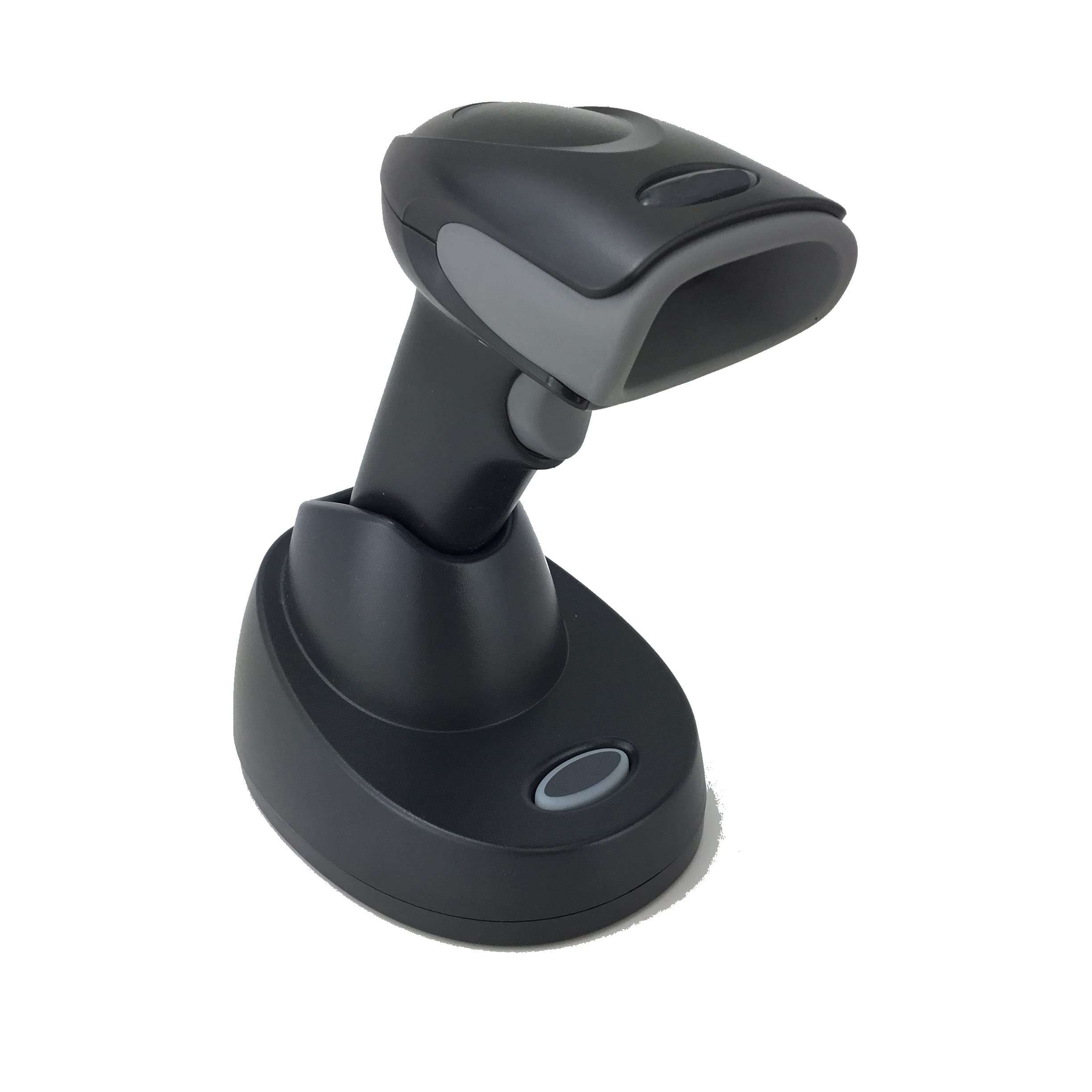

Honeywell Voyager XP 1472g Wireless 1D/2D Barcode Scanner (1472G2D-2USB-5-R)

Honeywell 1472G2D-2USB-5-R Voyager XP 1472g Cordless Scanner

The Voyager XP 1472g is a highly accurate 2D scanning solution with a durable form factor. Designed to deliver industry-leading scanning capabilities on traditional barcodes and digital screen, even those damaged and difficult to read codes. Made for the in-store retail workflows the Honeywell cordless barcode scanner is highly accurate and fast and has an extended scan distance capable of reaching the bottom of the cart without having to bend over saving employees and customers time at the point of sale.

Specifications:

• Product Code: 1472G2D-2USB-5-R
• WIRELESS:
  • Radio/Range: 2.4 GHz to 2.5 GHz (ISM Band), Adaptive Frequency Hopping Bluetooth v4.2, 30 m (98 ft) line of sight with Honeywell charger/communication base
• Power Options:
  • Battery: 2400 mAh Li-ion minimum
  • Number of Scans: Up to 50,000 scans per charge
  • Expected Duration of Operation: 14 hours
  • Expected Charge Time: 4.5 hours
  • User Indicators: Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume)
• MECHANICAL/ELECTRICAL:
  • Dimensions (L x W x H): 62 mm x 173 mm x 82 mm (2.5 in x 6.8 in x 3.2 in)
  • Charger/Communication Base: (C8001-010BT-V1N) 132 mm x 102 mm x 81 mm (5.2 in x 4.0 in x 3.2 in)
  • Scanner Weight: 210 g (7.4 oz)
  • Charger/Communication Base Weight: 179 g (6.3 oz)
  • Operating Power (Charging): Charger/Communication Base: 179 g (6.3 oz)
  • Standby Power: Charger/Communication Base: 0.5 W (0.1A @ 5V)
  • Host System Interfaces: USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)
  • Operating Temperature Scanner: Charging: 5°C to 40°C (41°F to 104°F), Non-Charging: 0°C to 50°C (32°F to 122°F)
  • Operating Temperature Charger/Communication Base: Charging: 5°C to 40°C (41°F to 104°F), Non-Charging: 0°C to 50°C (32°F to 122°F)
• SCAN PERFORMANCE:
  • Scan Pattern: Area Image (1040 x 720 pixel array)
  • Motion Tolerance: 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
  • Scan Angle:
    • Horizontal: 39.2° nominal
    • Vertical: 27.4° nominal
  • Roll, Pitch, Skew: ±180°, ±65°, ±70°
  • Barcode Types: Reads standard 1D, PDF, 2D, and DotCode symbologies Note: Decode capabilities dependent on configuration.

Product Name	Honeywell 1472G2D-2USB-5-R
Description	Cordless 1D/2D barcode scanner designed for retail environments, with Bluetooth 4.2 and enhanced durability.
Product Type	Barcode Scanner
Scanning Technology	1D/2D Imager
Connectivity	Bluetooth 4.2, 10m range
Interface	USB Kit
Drop Specification	Withstands 30 drops from 1.8m
Operating Temperature	0°C to 50°C
Protection Rating	IP42
Battery Life	14 hours of continuous use
Weight	210g

Certifications	CE, FCC, RoHS compliant
Environmental Safety	Constructed with sustainable materials
Reading Distance	Up to 80 cm for standard 1D barcodes
Charging Time	4.5 hours
Power Supply	Rechargeable Li-ion battery
Usage	Handheld and hands-free scanning
Dimensions	62mm x 169mm x 82mm
Shock Resistance	Withstands tumbles up to 0.5m
Vibration	Resistant to vibrations
Color	Black
