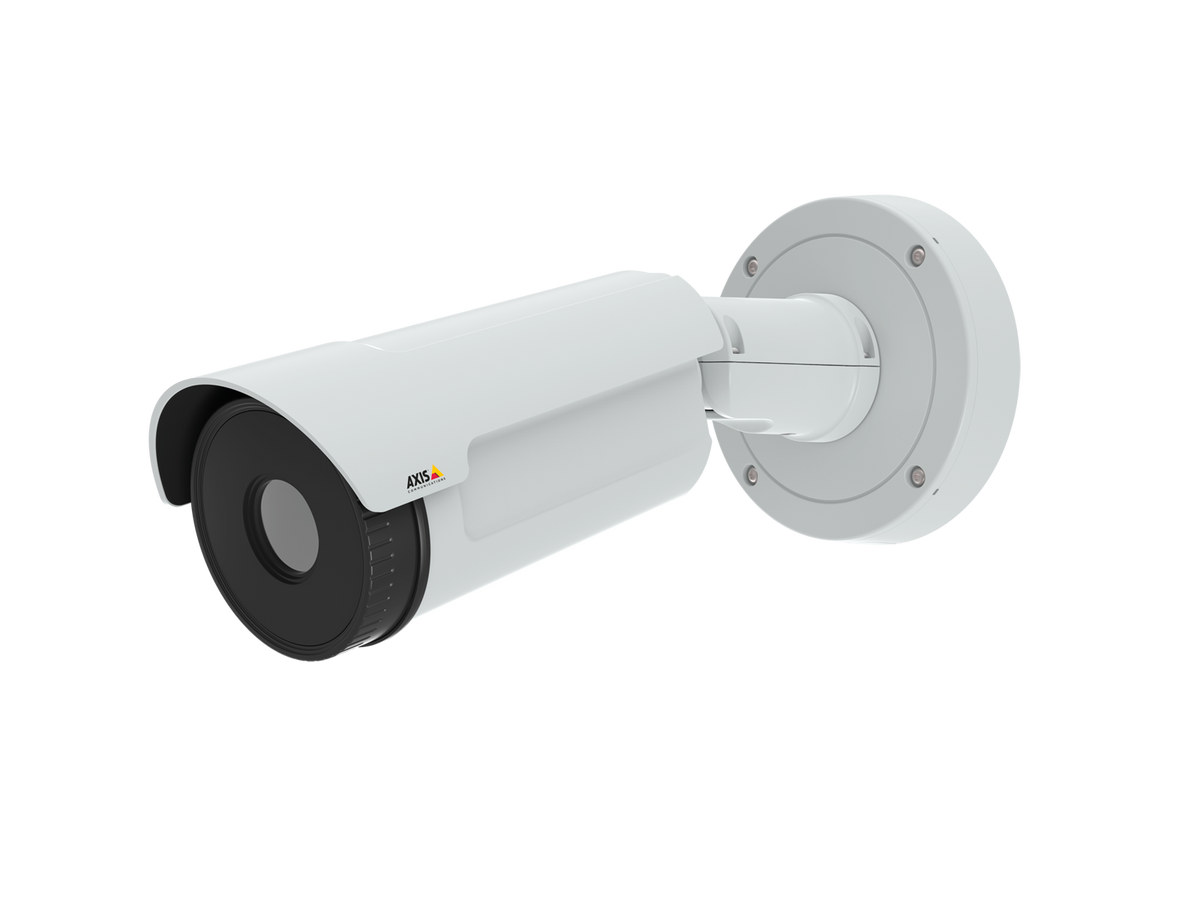

AXIS Q1941-E 7MM 30 FPS THERMAL NETWORK CAMERA (0786-001)
| Model: | 0786-001 |
| Detail: |
7mm F1.18, horizontal field of view: 55°, Provides clear thermal images for reliable detection in complete darkness, fog, and harsh weather conditions, IP66/IP67- and IK10-rated for impact, dust, and water resistance, suitable for outdoor installations in extreme temperatures.,
< |
| List Price: | |
| Price: | $2,685.00 |
| You Save: | $114.00 (4% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

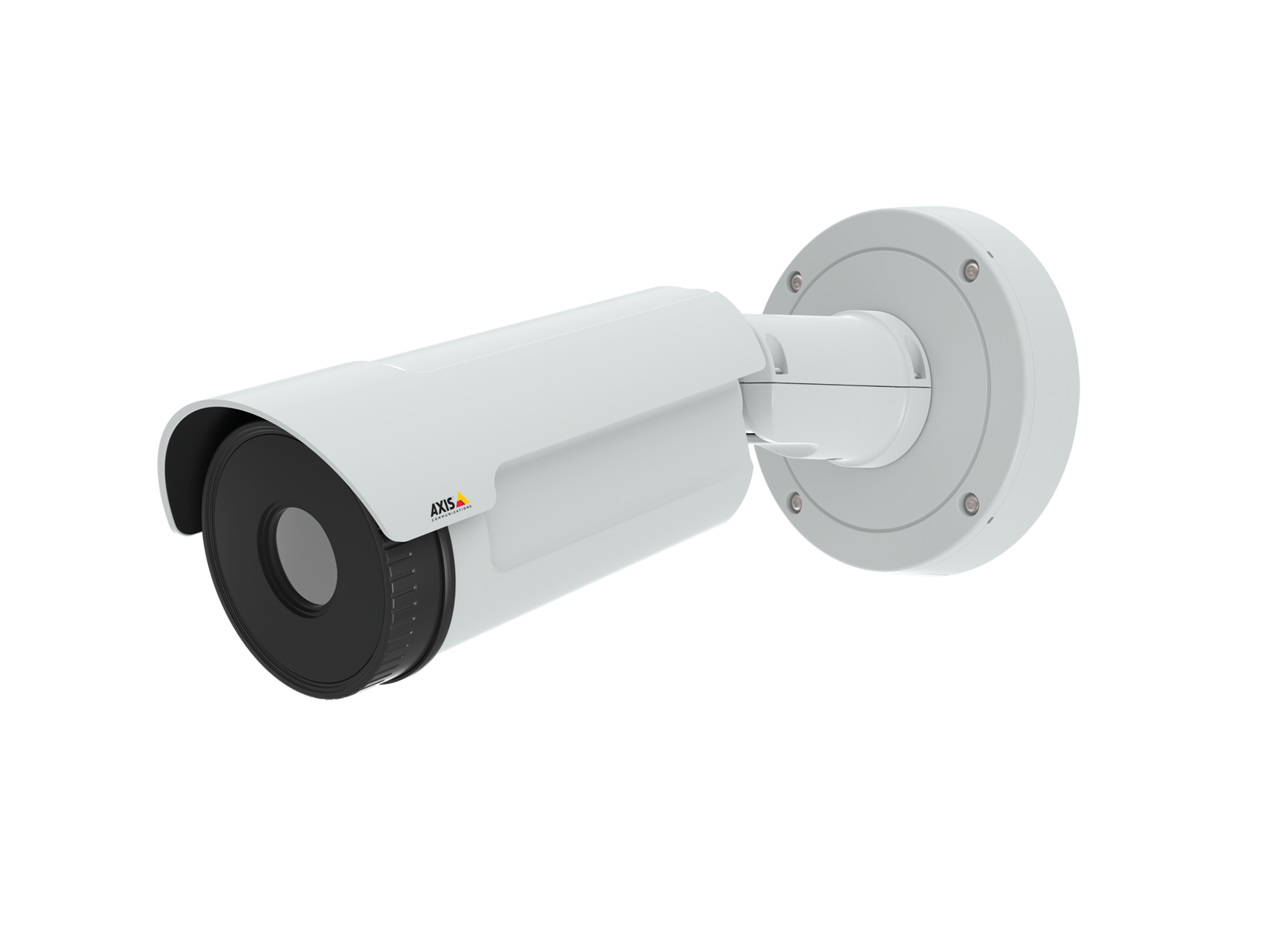

AXIS Q1941-E 7mm Thermal Network Camera
The AXIS Q1941-E 7mm Thermal Network Camera is an outdoor-ready bullet-style camera designed for reliable detection in challenging weather conditions. It offers a thermal resolution of 384x288 with a 7mm lens that provides a wide 55° horizontal field of view. Equipped with Axis' advanced analytics, such as AXIS Guard Suite, and support for additional analytics like AXIS Perimeter Defender, this camera is ideal for security installations where detection accuracy is critical. It also features Electronic Image Stabilization (EIS) to reduce vibration effects, and Axis Zipstream technology to minimize bandwidth and storage requirements while maintaining high image quality.
Key Features:
- Thermal Resolution of 384x288: Provides clear thermal images for reliable detection in complete darkness, fog, and harsh weather conditions.
- 7mm Lens with 55° Field of View: Wide horizontal field of view for effective area coverage.
- Electronic Image Stabilization (EIS): Reduces the effects of vibrations for smooth video in high-motion environments.
- Axis Zipstream Technology: Reduces bandwidth and storage needs while maintaining important forensic details.
- AXIS Guard Suite and Perimeter Defender: Includes built-in analytics for motion detection, fence guarding, and loitering detection, with support for additional third-party analytics.
- Rugged Design: IP66/IP67- and IK10-rated for impact, dust, and water resistance, suitable for outdoor installations in extreme temperatures.
Technical Specifications:
- Image Sensor: Uncooled microbolometer, 384x288 pixel resolution
- Lens: 7mm, F1.18, horizontal field of view: 55°
- Video Compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles; Motion JPEG
- Frame Rate: Up to 30 fps
- Power: Power over Ethernet (PoE) IEEE 802.3af/at, max 11.8 W
- Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
- Dimensions: 344 x 146 mm (13 9/16 x 5 3/4 in)
- Weight: 2000 g (4.4 lb)
For more information about the AXIS Q1941-E 7mm Thermal Network Camera, visit the Axis product page.
Specifications
| Thermal Resolution | 384x288 pixels |
| Field of View | 55° horizontal with 7mm lens |
| Electronic Image Stabilization | Integrated EIS to reduce motion blur from vibrations |
| Bandwidth Optimization | Axis Zipstream technology to lower bandwidth and storage needs |
| Certifications | CE, FCC, UL, RoHS compliant |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU), halogen-free design |
| EMC Compliance | Complies with EN 55032, EN 55024, and FCC Part 15 standards |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 10% to 100% (condensing) |
| Ingress Protection | IP66/IP67-rated for dust and water resistance |
| Impact Protection | IK10-rated for impact and vandal resistance |
| Power Consumption | Maximum 11.8W via PoE |
| Network Compatibility | Integrates with IT networks using standard protocols |
| Firmware Updates | Supports remote firmware updates for system security and reliability |
| Reliability | Tested for continuous operation in extreme outdoor environments |
| Built-in Analytics | AXIS Guard Suite and support for AXIS Perimeter Defender for motion detection, loitering, and fence guarding |
| Security Features | Includes HTTPS encryption, IP filtering, and secure boot |
| Monitoring and Diagnostics | Real-time monitoring and diagnostics supported via Axis Camera Station |
Properties
| Product Name | AXIS Q1941-E 7mm Thermal Network Camera |
| Description | The AXIS Q1941-E 7mm is an outdoor-ready thermal network camera with a 7mm lens, optimized for wide-area surveillance and reliable detection in harsh conditions. With a 55° field of view, it's suitable for security installations requiring high detection accuracy, including challenging environments with low visibility. |
| Image Sensor | Uncooled microbolometer, thermal resolution of 384x288 pixels |
| Lens | 7mm, F1.18 with a horizontal field of view of 55° |
| Frame Rate | Up to 30 FPS |
| Video Compression | H.264 (Baseline, Main, and High Profiles), Motion JPEG |
| Power Supply | Power over Ethernet (PoE) IEEE 802.3af/at, max 11.8 W |
| Dimensions | 344 mm x 146 mm (13 9/16 in x 5 3/4 in) |
| Weight | 2.0 kg (4.4 lb) |
| Mounting Options | Pole, wall, or corner mount with optional accessories |
| Usage | Ideal for perimeter protection and wide-area surveillance, optimized for security installations in low-visibility conditions |
| Durability | IP66/IP67 and IK10-rated for protection against dust, water, and impact, suitable for rugged outdoor environments |
