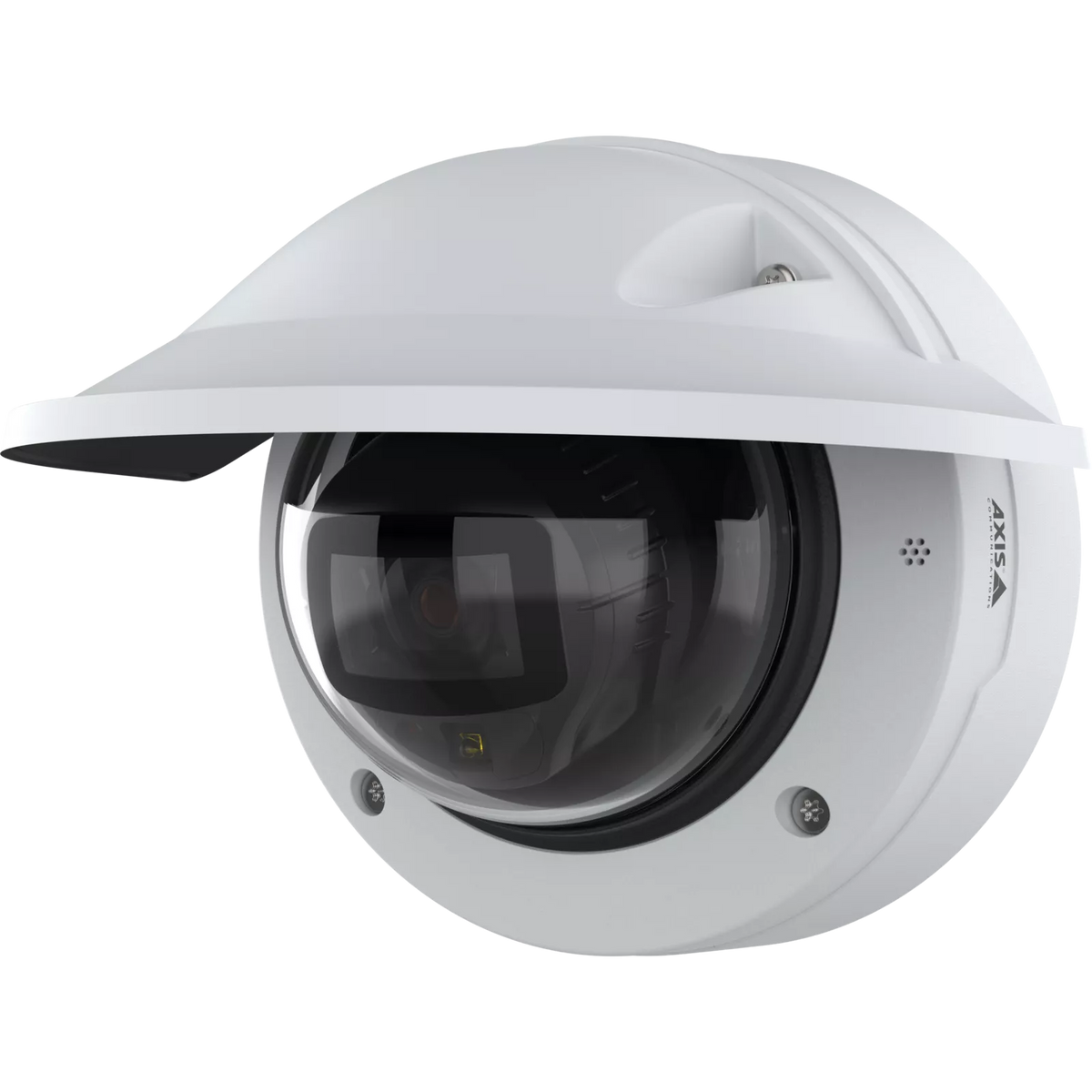

AXIS P3285-LVE Kit 10mm License Plate Verifier (03631-001)

License Plate Verification with AXIS P3285-LVE

The AXIS P3285-LVE Kit is an all-in-one network camera kit designed specifically for slow-speed traffic and license plate verification applications. Built around the ARTPEC-9 System on Chip (SoC) with a dedicated Deep Learning Processing Unit (DLPU), it comes with AXIS License Plate Verifier preinstalled. The camera features a 1/2.8-inch progressive scan RGB CMOS image sensor, a varifocal 3.4 to 9.8 mm lens, Lightfinder 2.0, and Forensic WDR. It supports up to 1920x1080 video resolution at 50/60 frames per second and includes integrated OptimizedIR illumination for 24/7 monitoring.

Key Benefits and Features

• High-Definition Video: Supports video resolution up to 1920x1080 at 50/60 fps across multiple compression formats including H.264, H.265, AV1, and Motion JPEG.
• Advanced Imaging Technologies: Combines Lightfinder 2.0, Forensic WDR, and Axis Zipstream for demanding light conditions and efficient bandwidth management.
• OptimizedIR Technology: Power-efficient 850 nm IR LEDs provide illumination reach up to 20 m (66 ft) or more depending on the scene.
• Edge-Based Analytics: Preinstalled AXIS License Plate Verifier handles allow/block lists and event logging directly on the camera without requiring external server processing.
• Hardware Cybersecurity: Powered by Axis Edge Vault, featuring secure boot, signed OS, signed video, and FIPS 140-3 Level 3 certified secure element.
• Outdoor Protection: Built into an IP66-, IP67-, and NEMA 4X-rated weatherproof casing with an IK10 vandal-resistant dome enclosure.

Ideal Use Cases

• License plate verification and access control applications
• Vehicle entry and exit monitoring for parking facilities
• Slow-speed traffic and driveway surveillance
• Security monitoring in harsh outdoor environmental conditions

Technical Specifications

• Image Sensor: 1/2.8" progressive scan RGB CMOS
• System on Chip (SoC): ARTPEC-9 with DLPU
• Maximum Video Resolution: 1920x1080
• Maximum Frame Rate: 50/60 fps
• Lens Type: Varifocal 3.4 - 9.8 mm, F1.4-2.7
• Field of View: Horizontal: 100°-32°, Vertical: 52°-18°
• Infrared Illumination: OptimizedIR 850 nm LEDs (20 m / 66 ft reach)
• Power over Ethernet (PoE): IEEE 802.3af/802.3at Type 1 Class 3 (max 10 W)
• Operating Temperature: -40 °C to 50 °C (-40 °F to 122 °F)
• IP Rating: IP66, IP67, NEMA 4X
• Vandal Rating: IK10
• Local Storage: microSD/microSDHC/microSDXC card slot

Deploy AXIS P3285-LVE for License Plate Verification

Choose the AXIS P3285-LVE Kit for license plate verification and outdoor surveillance applications requiring high-definition video, edge-based LPR processing, PoE connectivity, and robust environmental protection.
