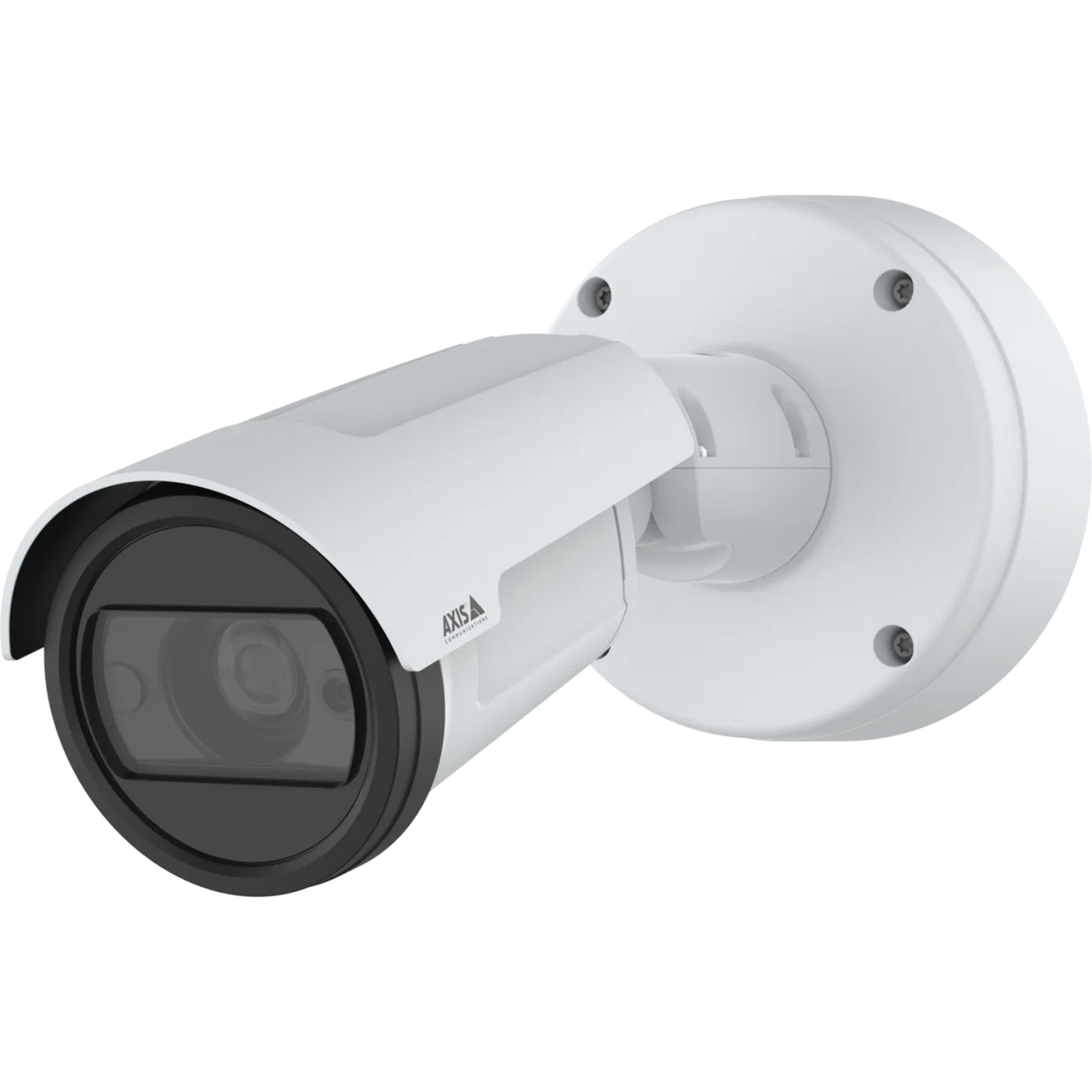

AXIS P1486-LE Kit License Plate Verifier (03618-001)
3 MP bullet camera, 10-40 mm varifocal lens, 7-30 m detection range, up to 130 km/h vehicle speed, two-lane LPR, OptimizedIR
$1,898.00
Global Shutter LPR for Free-Flow Traffic
The AXIS P1486-LE Kit License Plate Verifier is an all-in-one LPR bullet camera kit designed for free-flow traffic. It combines a 3 MP camera with AXIS License Plate Verifier preinstalled and uses global shutter technology to capture fast-moving objects with low distortion. Purpose-tuned for license plate recognition, it supports vehicles traveling up to 130 km/h (81 mph) across two lanes. A 1/1.8-inch progressive scan RGB CMOS sensor and 10-40 mm varifocal P-iris lens support detailed vehicle monitoring at detection distances from 7 to 30 m (23 to 98 ft).
Key Benefits and Features
- Integrated LPR Analytics: AXIS License Plate Verifier is preinstalled for edge-based license plate recognition and event processing.
- Global Shutter: Captures fast-moving objects with low distortion for free-flow traffic applications.
- Two-Lane Coverage: Supports license plate capture across two lanes with edge analytics.
- Long-Range OptimizedIR: 850 nm IR LEDs provide a reach of 60 m (197 ft) or more depending on the scene.
- Outdoor Protection: IP66/IP67, NEMA 4X, and IK10-rated casing supports demanding outdoor installations.
Ideal Use Cases
- Free-flow traffic license plate recognition
- Vehicle access and entry monitoring
- Vehicle search and parking applications
- Two-lane roadside traffic monitoring
Technical Specifications
- Image Sensor: 1/1.8-inch progressive scan RGB CMOS with global shutter
- Lens: Varifocal 10-40 mm, F1.3-1.4, P-iris, IR corrected
- Maximum Resolution: 2048x1536
- Detection Range: 7-30 m (23-98 ft)
- Vehicle Speed: Up to 130 km/h (81 mph) with edge analytics
- Processor: ARTPEC-9 with deep learning processing unit
- Memory: 2 GB RAM, 8 GB Flash
- PoE: IEEE 802.3af/802.3at Type 1 Class 3, max 12.95 W
- Network Interface: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T
- Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
Deploy AXIS P1486-LE for High-Speed Two-Lane LPR
Choose the AXIS P1486-LE Kit for free-flow license plate recognition requiring global shutter imaging, two-lane coverage, high vehicle-speed capture, integrated edge analytics, OptimizedIR illumination, and rugged outdoor protection.
| Brand | AXIS |
| SKU | 03618-001 |
| Product Type | Global shutter LPR kit for free-flow traffic |
| Image Sensor | 1/1.8” progressive scan RGB CMOS, global shutter |
| Lens | Varifocal, 10-40 mm, F1.3-1.4 |
| Resolution | Up to 2048x1536 |
| PoE Support | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Power | PoE max 12.95 W, typical 4.41 W; 10-28 VDC, max 13 W, typical 4.41 W |
| Color | White NCS S 1002-B |
| Material | Aluminum and plastic casing |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| License Plate Detection Range | 7-30 m (23-98 ft) |
| Vehicle Speed | Up to 130 km/h (81 mph) with edge analytics |
| Coverage | Two lanes with edge analytics |
| IR Illumination | OptimizedIR, 850 nm IR LEDs, range of reach 60 m (197 ft) or more depending on the scene |
| Mounting Height | 2 m to 8 m (7 ft to 26 ft) |
| Processor | ARTPEC-9 |
| Memory | 2 GB RAM, 8 GB Flash |
| Compute Capabilities | Deep learning processing unit (DLPU) |
| Video Compression | H.264, H.265, AV1, Motion JPEG |
| Frame Rate | With Forensic WDR: up to 25/30 fps; no WDR: up to 50/60 fps; cropped mode: up to 200 fps at 1280x720; binned mode: up to 270 fps at 1024x768 |
| WDR | Forensic WDR: up to 120 dB depending on scene |
| Image Processing | Forensic WDR, Lightfinder 2.0, OptimizedIR |
| Network Interface | Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T |
| Storage | microSD/microSDHC/microSDXC card; network-attached storage (NAS) |
| Protection Rating | IP66, IP67, NEMA 4X, IK10 |
| Product Markings | CE, FCC, ICES, KC, RCM, VCCI, WEEE |
| USA EMC | FCC Part 15 Subpart B Class A |
| Network Security | IEEE 802.1X, IEEE 802.1AE, IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security, X.509 Certificate PKI, host-based firewall |
| Operating Humidity | 10-100% RH (condensing) |
| Storage Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Storage Humidity | 5-95% RH (non-condensing) |
| Included | Camera; weathershield; installation guide; terminal block connector; connector guard; cable gaskets; owner authentication key |
| Compatible Accessories | AXIS T8415 Wireless Installation Tool; AXIS T91B47 Pole Mount; AXIS T94F01P Conduit Back Box; AXIS TM4101 Pendant Kit; AXIS Surveillance Cards |
