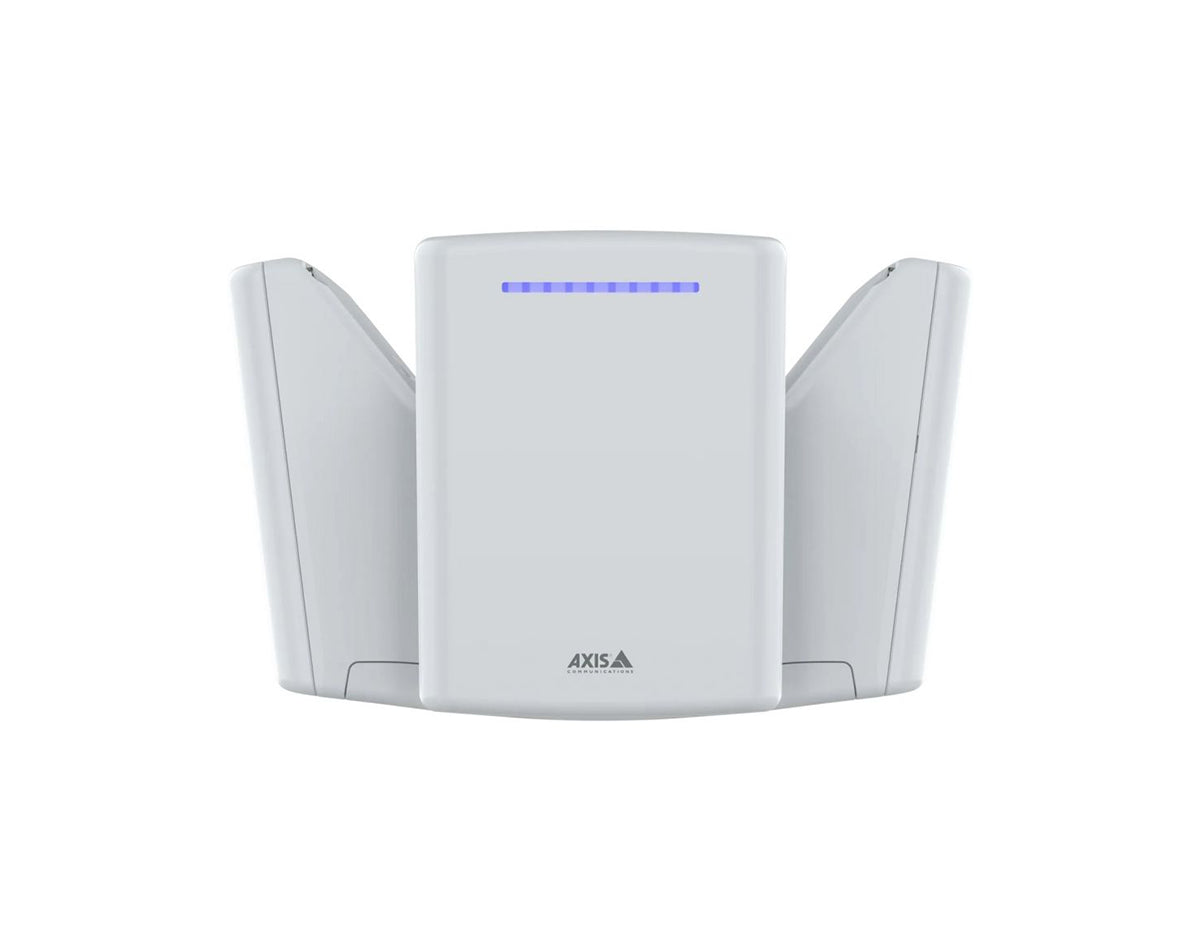

AXIS D2123-VE 270° Network Radar (03126-001)
270° detection coverage, AI-powered classification, 140 m human recognition, 200 m vehicle detection, ARTPEC-9, PoE connectivity
$5,051.00
Wide-Area Radar Detection with AI Classification
The AXIS D2123-VE Radar 03126-001 provides continuous wide-area monitoring with a 270° horizontal field of detection. Built on the ARTPEC-9 system-on-chip, it uses AI-powered processing to classify detected objects as humans, vehicles, or unknown objects while reporting their range, direction, and velocity.
Designed for demanding perimeter and site-monitoring applications, the radar can recognize people at distances of up to 140 m and detect vehicles at distances of up to 200 m. Its box-shaped detection and recognition zones support efficient coverage planning across large areas. The device can operate independently or integrate with selected ARTPEC-9 PTZ cameras for radar-video fusion and automated object tracking.
Key Benefits and Features
- 270° horizontal detection coverage for monitoring broad areas
- AI-powered classification of humans, vehicles, and unknown objects
- Human recognition coverage of up to 30,000 m²
- Vehicle detection coverage of up to 59,000 m²
- PoE output for powering a compatible external PoE device
Ideal Use Cases
- Perimeter monitoring around industrial and commercial properties
- Detection of people and vehicles across open outdoor areas
- Integration with selected Axis PTZ cameras for radar-video fusion
- Automated security responses such as radar tracking or siren activation
Technical Specifications
- Radar technology: FMCW, Frequency Modulated Continuous Wave
- Operating frequency: 24.05 to 24.25 GHz
- Field of detection: 270° horizontal
- Human recognition range: Up to 140 m
- Vehicle detection range: Up to 200 m
- Maximum radial speed: Up to 80 km/h
- System-on-chip: ARTPEC-9 with deep learning processing unit
- Network interface: 10/100/1000BASE-T shielded RJ45 with PoE
- Environmental protection: IP66, IP67, NEMA 4X, and IK10
- Operating temperature: -40°C to 60°C
Strengthen Wide-Area Security with AXIS D2123-VE
Deploy the AXIS D2123-VE Radar for accurate, continuous detection and classification across large outdoor areas. Contact our B2B team for pricing and availability.
| Brand | Axis Communications |
| Model | AXIS D2123-VE Radar |
| SKU | 03126-001 |
| Product Type | Network Radar |
| Monitoring Profile | Area monitoring |
| Sensor | FMCW (Frequency Modulated Continuous Wave) |
| Field of Detection | 270° horizontal |
| Person Recognition Range | Up to 140 m (450 ft) |
| Vehicle Detection Range | Up to 200 m (650 ft) |
| PoE Support | Power over Ethernet IEEE 802.3bt Type 2 Class 4 with PoE output |
| Network Interface | Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| Material | Aluminum and plastic casing |
| Protection Rating | IP66/IP67, NEMA 4X and IK10 |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Weight | 5200 g (11.5 lb) |
| Object Classification | Humans, vehicles and unknown objects |
| Object Data | Object type, range, direction and velocity |
| Frequency | 24.05-24.25 GHz |
| RF Transmit Power | <100 mW (EIRP) |
| Recommended Mounting Height | 4-10 m (13-33 ft) |
| Radial Speed | Up to 80 km/h (50 mph) |
| Speed Accuracy | +/- 2 km/h (1.25 mph) |
| Distance Accuracy | 0.9 m (3 ft) |
| Angle Accuracy | <0.5° |
| Spatial Differentiation | 3 m |
| Data Refresh Rate | 6.67 Hz |
| Person Coverage | 30,000 m² (320,000 sq ft) |
| Vehicle Coverage | 59,000 m² (635,000 sq ft) |
| Processor | ARTPEC-9 |
| Memory | 2 GB RAM |
| Storage | 8 GB Flash; supports microSD, microSDHC and microSDXC cards; network-attached storage recording |
| Compute Capabilities | Deep learning processing unit (DLPU) |
| Video Compression | H.264, H.265, AV1 and Motion JPEG |
| Video Resolution | 16:9: 1920x1080 to 320x200; 4:3: 1440x1080 to 160x120 |
| Frame Rate | Up to 10 fps (50/60 Hz) in all resolutions |
| Video Streams | Up to 20 unique and configurable video streams |
| PoE Power Consumption | Typical 11.5 W, maximum 19.6 W |
| PoE Output Interface | Shielded RJ45 1000BASE-T PoE output |
| Dynamic LED | RGB LED strip with predefined light patterns; daylight visibility up to 60 m (197 ft) |
| Operating Humidity | 10-100% RH (non-condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F); 5-95% RH (non-condensing) |
| Effective Projected Area | 0.09 m² (0.97 ft²) |
| ONVIF Profiles | ONVIF Profile G, Profile M, Profile S and Profile T |
| Cybersecurity | Axis Edge Vault, signed OS, signed video, secure boot, encrypted filesystem and secure keystore |
| Product Markings | CE, CRA, CRC, ENACOM, FCC, ICASA, MIC Telecom, MOC, MTC, RATEL, RCM, RSM, SUBTEL, UL, URSE, VCCI and WPC |
| Supply Chain Compliance | TAA compliant |
| Included | Radar, installation guide, TORX® T20 screwdriver, connector guard, cable gaskets and owner authentication key |
| Compatible Accessories | AXIS T8415 Wireless Installation Tool and AXIS Surveillance Cards |
| Optional Mounting Kit | AXIS T91 Mounting Accessories, AXIS TQ5001-E Wall-and-Pole Mount and AXIS TQ5301-E Corner Mount |
