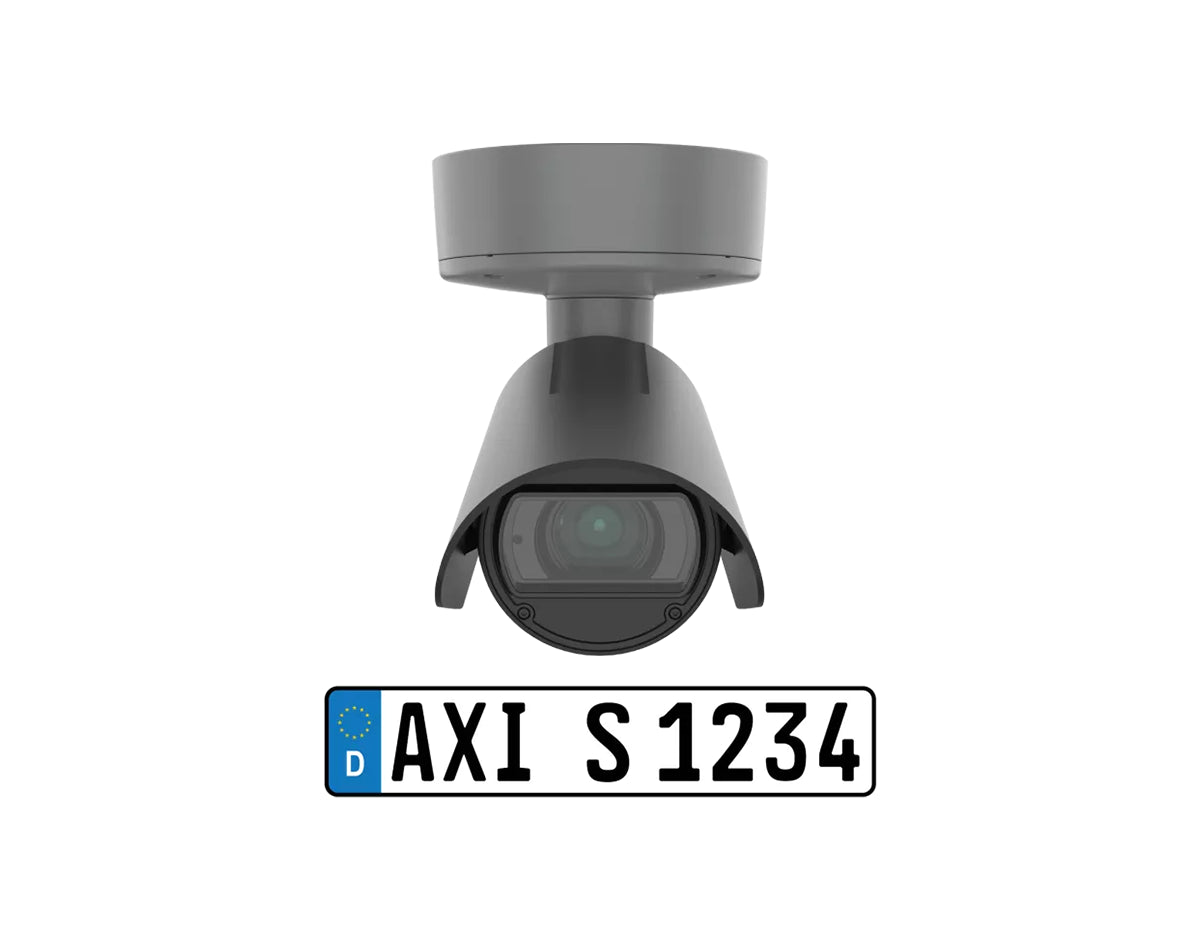

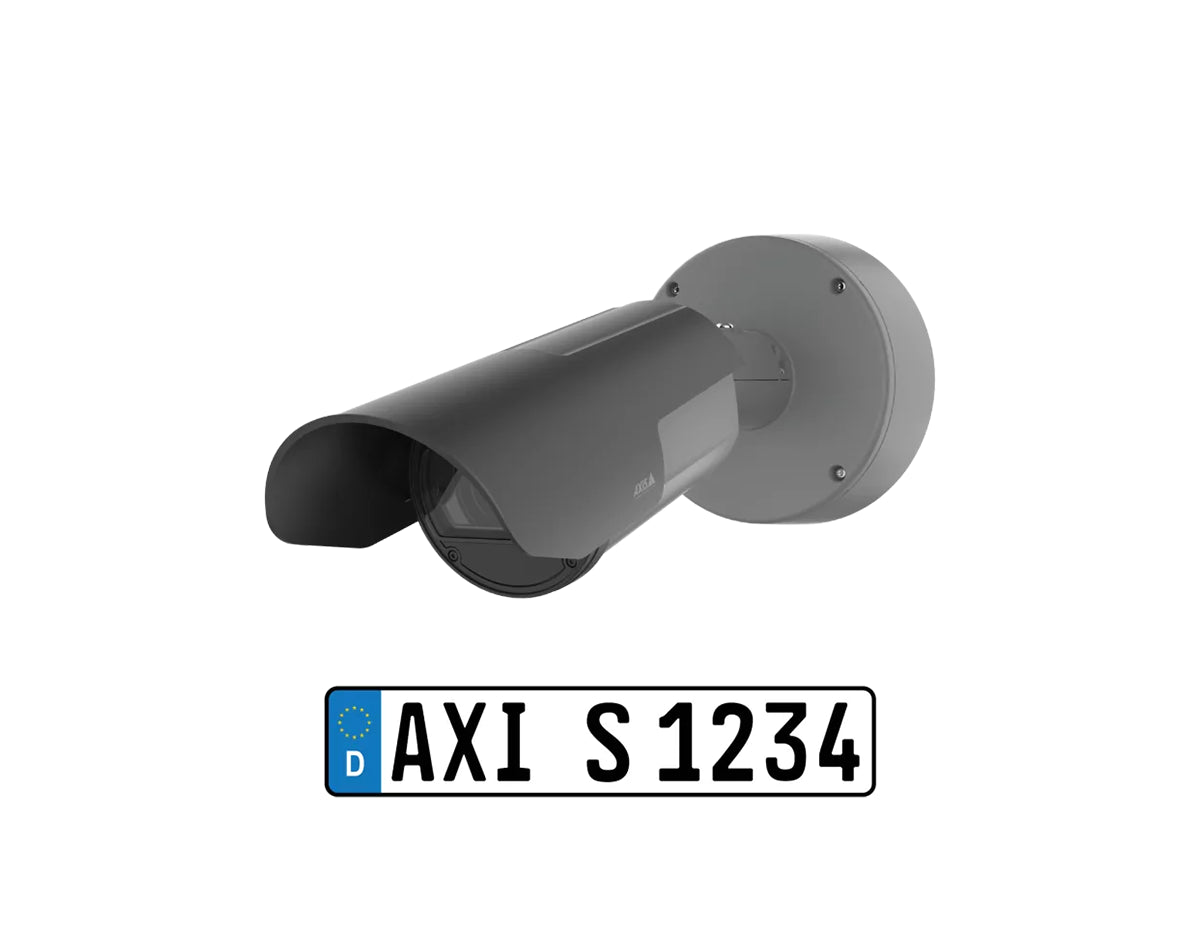

High-Speed, Precision License Plate Recognition in Any Environment
The AXIS Q1800-LE-3 License Plate Verifier Kit delivers 24/7, purpose-built vehicle plate recognition for demanding environments. Powered by the ARTPEC-8 SoC and AXIS License Plate Verifier preinstalled, it captures plates at speeds up to 200 km/h (124 mph) with exceptional accuracy in both day and night conditions. This robust, weatherproof system ensures consistent performance in extreme temperatures and harsh outdoor deployments.
With a powerful varifocal 7-137 mm lens, OptimizedIR, and intelligent analytics at the edge, the AXIS Q1800-LE-3 enables fast, reliable vehicle verification without the need for expensive external servers or complex infrastructure. The unit is designed with a built-in weathershield to withstand wind forces up to 60 m/s (134 mph), making it ideal for exposed traffic installations.
Key Benefits & Features
- High-speed LPR accuracy: Captures clear license plates at up to 200 km/h using purpose-tuned optics and built-in edge analytics.
- Long-range detection: Daytime reading range of 20–100 m and nighttime range up to 50 m, extendable to 100 m with optional IR illuminator.
- Edge-based processing: ARTPEC-8 with Deep Learning Processing Unit (DLPU) enables fast recognition, lower bandwidth use, and reduced server dependency.
- Rugged outdoor build: IP66, IK10, NEMA 4X-rated housing with integrated dehumidifying membrane ensures reliability in tough weather.
- OptimizedIR illumination: Adaptive 850 nm IR LEDs deliver even coverage in full darkness for higher recognition accuracy without external light sources.
Ideal Use Cases
- Highway and expressway speed checkpoints
- Commercial and industrial gate control and access management
- Parking facility automation, vehicle search, and enforcement
- Perimeter security for logistics and distribution centers
- Municipal traffic monitoring and law enforcement
Technical Specifications
- Sensor: 1/2.8” progressive scan RGB CMOS
- Lens: Varifocal 7–137 mm, F1.5–4.0, remote zoom and focus
- Field of View: 38°–2.3° horizontal, 22°–1.3° vertical
- IR Range: 40 m wide FOV, 50 m tele, scene dependent
- Vehicle Speed Support: Up to 200 km/h (124 mph)
- Detection Distance: 20–100 m (day), 20–50 m (night)
- Video Resolution: Up to 1920×1080, 90 fps (without WDR)
- WDR: Forensic WDR up to 120 dB
- Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
- Power: PoE 802.3af/at, 10–28 V DC, 20–24 V AC
Upgrade Your Vehicle Monitoring Today
Enhance your traffic or access control system with reliable high-speed plate verification. Order now to secure your perimeter with the AXIS Q1800-LE-3.
