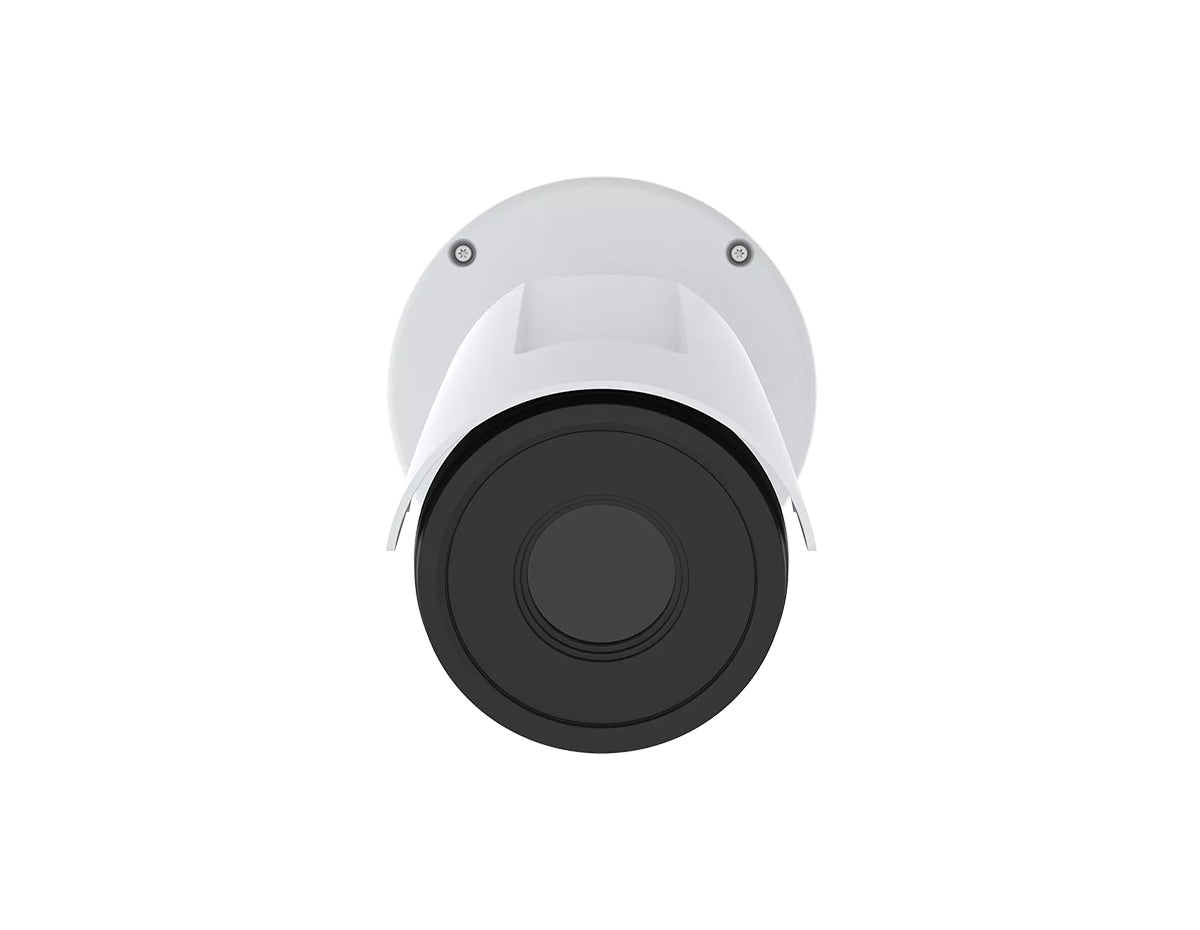

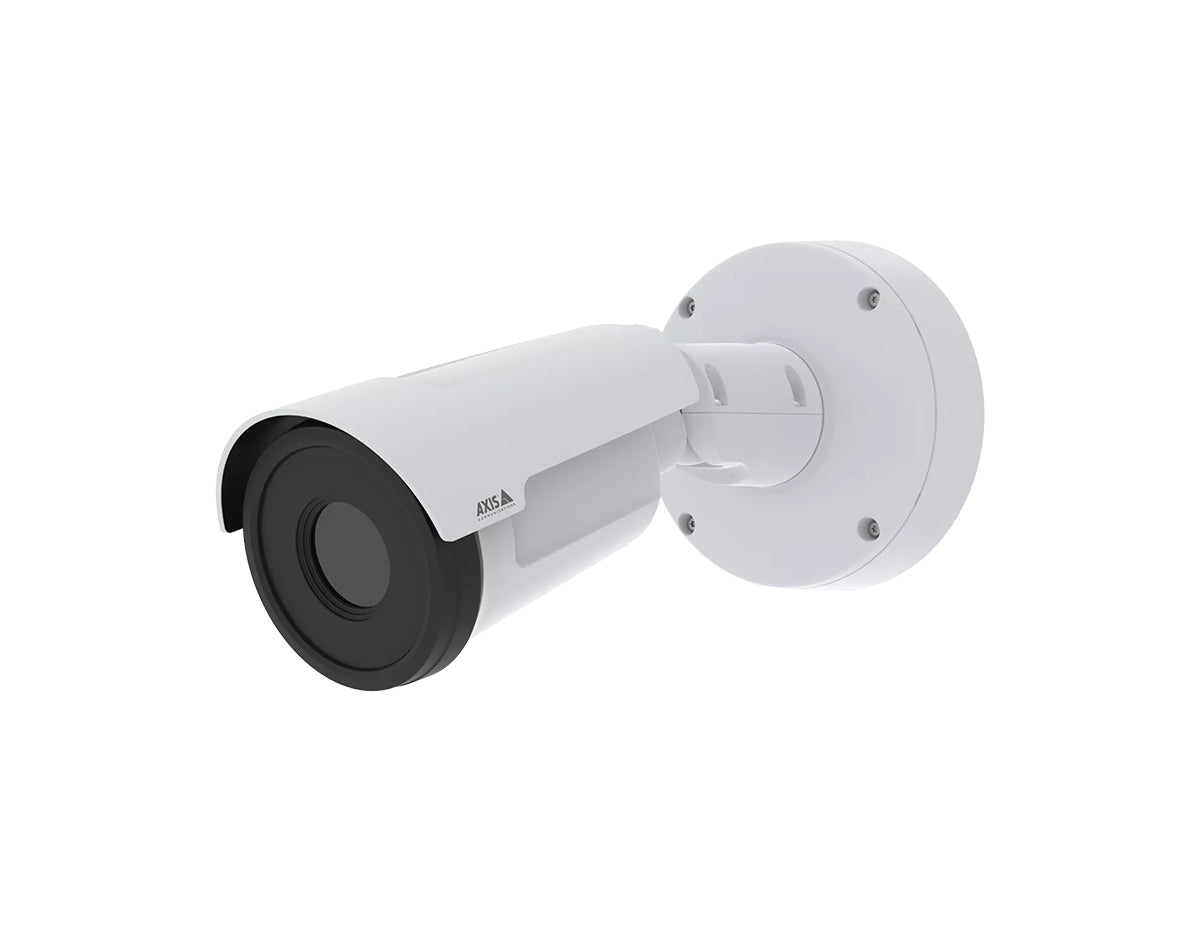

AXIS Q1972-E 35 mm 8.3 fps Thermal Camera (03034-001)

AXIS Q1972-E 35 mm 8.3 fps Thermal Camera (03034-001)

Name: AXIS Q1972-E 35 mm 8.3 fps Thermal Camera (03034-001)
Brand: Axis
Price: 7420.0 USD
Availability: InStock

Part Number: 03034-001

Technical Details

Outdoor-ready thermal camera with a 35 mm F1.2 athermalized lens, 17° × 13° field of view, uncooled 640×480 thermal sensor, <20 mK sensitivity, 8.3 fps thermal imaging, ARTPEC-8 SoC with deep-learning unit, electronic image stabilization, and rugged IP66/IP67 & IK10 construction.

$7,420.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

High-Resolution Thermal Imaging for Long-Range Detection

The AXIS Q1972-E 35 mm 8.3 fps variant delivers precise long-range thermal imaging with a narrow 17° field of view, making it highly effective for perimeter protection, intrusion detection, and applications requiring accurate classification in all lighting and weather conditions. Its <20 mK sensitivity reveals subtle temperature differences, ensuring reliable detection 24/7.

Powered by the ARTPEC-8 system-on-chip with a deep-learning processing unit, this camera supports advanced analytics while maintaining low bandwidth consumption thanks to Axis Zipstream. Rugged IP66/IP67 and IK10 construction ensures durability in harsh outdoor environments.

Key Benefits

35 mm F1.2 thermal lens provides long-range, narrow-angle detection
High-resolution 640×480 sensor with <20 mK sensitivity captures fine thermal detail
ARTPEC-8 SoC with DLPU enables powerful AI-based analytics
Electronic image stabilization counters vibrations for stable video
Rugged IP66/IP67, IK10, NEMA 4X build ensures reliable all-weather performance
Secure design with Axis Edge Vault, TPM 2.0, signed firmware, and encrypted video and storage
Flexible installation with wide accessory ecosystem for pole, corner, and conduit mounting

Ideal Use Cases

Long-range perimeter protection
Critical infrastructure and utility monitoring
Harsh-weather outdoor deployments
Industrial site surveillance
Border and high-security area monitoring

Technical Specifications Summary

Image sensor: 640×480 uncooled microbolometer, 17 μm, 8–14 μm spectral range
Lens: 35 mm F1.2; HFOV 17°, VFOV 13°; near focus 33 m
Sensitivity: NETD <20 mK @25 °C, F1.0
Video: H.264/H.265/MJPEG; up to 8.3 fps; Axis Zipstream; up to 20 configurable streams
Audio: Two-way audio with AGC, 10-band EQ, mic/line input and audio detection
Power: PoE Class 3 or 12–28 V DC, typical 4.8–5.0 W, max 12.95 W
Environment: IP66/IP67, IK10, MIL-STD-810H, NEMA 4X; -40 °C to 60 °C operation
Security: Axis Edge Vault, TPM 2.0, secure boot, signed firmware/video, encrypted filesystem and SD-card

Upgrade Your Operations

Enhance long-range detection accuracy and system reliability with high-performance thermal imaging.

Properties

Model	AXIS Q1972-E 35 mm 8.3 fps Thermal Camera (03034-001)
Product Type	Thermal Camera
Image Sensor	Uncooled microbolometer, 640×480, 17 μm, 8–14 μm
Lens	35 mm F1.2 athermalized; HFOV 17°, VFOV 13°; near focus 33 m (108 ft)
Sensitivity	NETD <20 mK @25 °C, F1.0
Video Resolution	640×480 (scaled up to 800×600)
Frame Rate	Up to 8.3 fps
SoC	ARTPEC-8 with deep-learning processing unit (DLPU)
Memory	2048 MB RAM, 8192 MB Flash
Power	PoE IEEE 802.3af/at Type 1 Class 3; typical 5.0 W, max 12.95 W; 12–28 V DC, typical 4.8 W, max 12.95 W
Casing	IP66/IP67, NEMA 4X, IK10-rated aluminum & polycarbonate
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F); 10–100% RH (condensing)
Storage Conditions	-40 °C to 65 °C (-40 °F to 149 °F); 5–95% RH (non-condensing)
Interfaces	RJ45 10/100/1000BASE-T PoE; 3.5 mm mic/line in; DC input; terminal block for 1 supervised alarm input and 1 output (12 V DC, max. 50 mA)
Storage	Support for microSD/microSDHC/microSDXC card and NAS recording
Weight	1.4 kg (3.1 lb)
EPA	0.022 m² (0.24 ft²)
Certifications	CSA, UL/cUL, CE, KC, TAA compliant

Specifications

Performance	ARTPEC-8 SoC; DLPU for AI-based analytics; electronic image stabilization (EIS); thermal palettes
Video	H.264, H.265, Motion JPEG; sensor 640×480 scaled to 800×600; up to 8.3 fps; Axis Zipstream; up to 20 streams; VBR/ABR/MBR; rotation 0°/90°/180°/270°; image settings including contrast, brightness, sharpness, exposure zones, mirroring, overlays, privacy masks
Audio	Two-way audio; AGC; spectrum visualizer (ACAP); 10-band EQ; mic/line in; audio detection; audio encoding: LPCM, AAC-LC, G.711, G.726, Opus
Connectivity	IPv4/IPv6, HTTPS/TLS, FTP/SFTP, CIFS/SMB, SNMP v1/v2c/v3, RTSP/RTP/SRTP, MQTT, LLDP, CDP, DHCP, IGMP, ZeroConf
Power Supply	PoE IEEE 802.3af/at Type 1 Class 3 or 12–28 V DC
Security Features	Axis Edge Vault, TPM 2.0, secure boot, signed firmware/video, encrypted filesystem, SD-card encryption, 802.1X, MACsec, HTTPS/HSTS
Environmental / Ruggedness	IP66/IP67, IK10, ISO 21207 B, MIL-STD-810H (selected), NEMA 4X; -40 °C to 60 °C operation
Mounting Options	Supports wall, pole, corner, and conduit mounting
Sensors	Gyroscopic sensors for EIS; shock detection
Events	Audio detection; device temperature events; network lost; shock detected; I/O events; MQTT; tampering
Analytics	AXIS VMD, Motion Guard, Fence Guard, Loitering Guard, active tampering alarm, audio detection; supports ACAP & AXIS Perimeter Defender
Approvals	CSA, UL/cUL, CE, KC; EMC: CISPR 35/32, EN 55035/55032, FCC Part 15 Class A; NEMA TS 2; cybersecurity certifications

Accessories

Included	Camera, installation guide, drill template, TORX L-keys, RESISTORX L-key, terminal block connector, connector guard, cable gaskets, owner authentication key
Optional Accessories	AXIS T94F01M J-Box/Gang Box Plate; AXIS T91A47 Pole Mount; AXIS T94P01B Corner Bracket; AXIS T94F01P Conduit Back Box; AXIS Weather Shield K; Axis PoE Midspans; AXIS T8415 Wireless Installation Tool; AXIS Surveillance Cards
