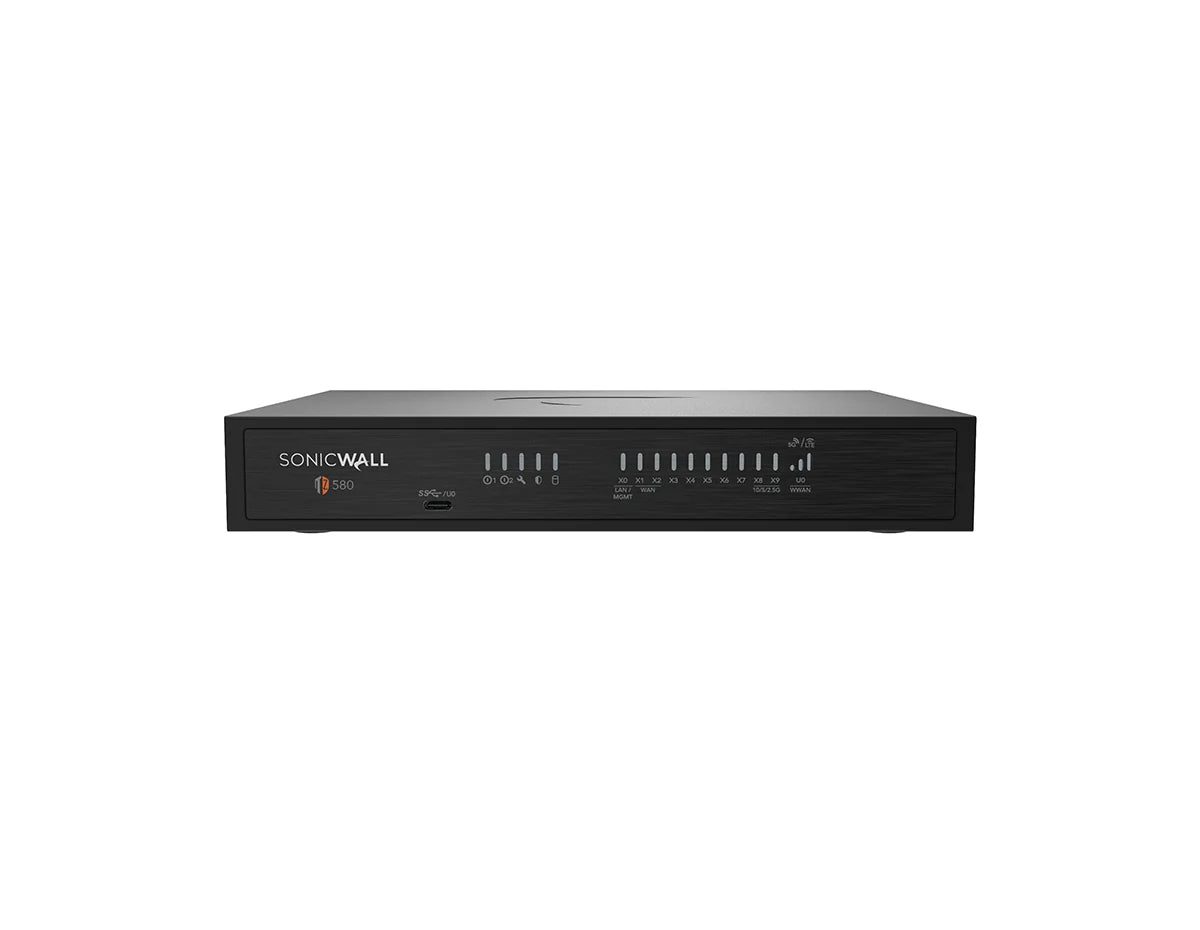

SonicWall TZ580 03-SSC-7464 Desktop Firewall, High Availability Unit
Overview
The SonicWall TZ Series (Gen 8) is an SD-Branch platform for small and mid-sized organizations and distributed enterprises in a desktop form factor. It runs SonicOS 8 with Secure SD-WAN, zero-touch deployment and centralized management through Network Security Manager (NSM), and it integrates SonicWall Switch and SonicWave access points. The 03-SSC-7464 is the TZ580 High Availability unit. It is the secondary unit of a TZ580 high availability pair, supplied as an appliance with no security subscription attached; support and security subscriptions are sold separately and licensed on the primary appliance.
Technical Details
The SonicWall TZ580 03-SSC-7464 is a desktop next-generation firewall running SonicOS 8, with 8×1GbE RJ45, 2×10/5/2.5/1GbE SFP+. Threat Prevention throughput is 2.2 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (4.5 Gbps firewall inspection), and it holds up to 1,400,000 concurrent SPI connections. This part number is the High Availability unit of a TZ580 pair and must be paired with a regular TZ580. It is used at a small office, branch or retail site for internet-edge protection, SD-WAN and site-to-site VPN.
Best For
The TZ580 suits a small office, branch or retail site that needs 2.2 Gbps of Threat Prevention throughput and up to 1,400,000 concurrent SPI connections. It is bought to pair with an existing TZ580 for high availability. Size against the Threat Prevention figure, not the firewall inspection throughput.
Not suitable if:
- your inspected traffic exceeds 2.2 Gbps, the published Threat Prevention throughput
- you need a standalone firewall rather than the second unit of an HA pair
- you need Power over Ethernet from the firewall, since this model has none
- you require native rack mounting without an additional accessory, since this is a desktop appliance and requires a separate SonicWall rack mount kit
03-SSC-7464 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 8×1GbE RJ45, 2×10/5/2.5/1GbE SFP+ |
| Max Port Speed | 10 GbE |
| Management & Console Ports | 1×Console (Micro-USB), 1×USB (type-C) |
| Performance & Scale | |
| Firewall Throughput | 4.5 Gbps (RFC 2544) |
| Threat Prevention Throughput | 2.2 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled) |
| TLS/SSL Inspection Throughput | 0.75 Gbps (DPI SSL) |
| IPsec VPN Throughput | 2.2 Gbps (1418-byte UDP, AESGMAC16-256) |
| Maximum Concurrent Sessions | 1,400,000 (SPI) |
| New Sessions per Second | 20,000 |
| Maximum DPI Connections | 500,000 (DPI) |
| Maximum IPsec VPN Tunnels | 250 (site-to-site) |
| Hardware & Memory | |
| Onboard Storage | Optional storage expansion up to 512 GB |
| Power & Thermal | |
| Power Supply | 60 W; 100-240 VAC input (50-60 Hz) |
| Redundant Power Supply | Optional |
| Maximum Power Consumption | 15.6 W |
| Physical & Environmental | |
| Form Factor | Desktop |
| Dimensions (H x W x D) | 1.38 × 5.87 × 8.86 in (3.5 × 14.9 × 22.5 cm) |
| Weight | 2.14 lb (0.97 kg) |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS 8 |
| High Availability | Active/Standby with stateful synchronization |
| Central Management Platform | Network Security Manager (NSM) 3.0 and above |
| Routing Protocols & IPv6 | BGP, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6 certified |
FAQ
Does the SonicWall TZ580 03-SSC-7464 include a security subscription?
No. The 03-SSC-7464 is a dedicated High Availability appliance with no security-service bundle of its own. It runs SonicOS 8; once it is associated with the primary TZ580 on MySonicWall, it synchronizes its licensing with the primary appliance.
How much traffic can the SonicWall TZ580 03-SSC-7464 handle?
SonicWall publishes no user count, so size the TZ580 on its figures. Firewall inspection throughput is 4.5 Gbps, but Threat Prevention throughput is 2.2 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 1,400,000 concurrent SPI connections and 500,000 DPI connections, and opens 20,000 new connections per second.
What interfaces does the SonicWall TZ580 03-SSC-7464 have?
The TZ580 provides 8×1GbE RJ45, 2×10/5/2.5/1GbE SFP+. Management and console connectivity is 1×Console (Micro-USB), 1×USB (type-C). Transceivers for any SFP-type ports are sold separately.
Does the SonicWall TZ580 03-SSC-7464 support high availability?
This part number is the High Availability unit: the second appliance of a TZ580 HA pair. The TZ580 supports Active/Standby high availability with stateful synchronization.
What is the difference between the TZ580 and the TZ680?
Both run the same SonicOS 8. The TZ580 is rated at 4.5 Gbps firewall inspection throughput, 2.2 Gbps Threat Prevention throughput and 1,400,000 concurrent SPI connections; the TZ680 is rated at 5 Gbps, 2.5 Gbps and 1,600,000. Check both interface sets in the specification tables.
Does the 03-SSC-7464 include SonicWall support?
The 03-SSC-7464 is a dedicated High Availability appliance. It must be paired with a regular TZ580. Once the two are associated on MySonicWall, the HA unit synchronizes its licensing with the primary appliance. Network Devices Inc. confirms the pairing and licensing before the order is placed.
How is the SonicWall TZ580 03-SSC-7464 managed?
The TZ580 is managed through Network Security Manager (NSM) 3.0 and above, and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the HA unit's licensing synchronizes with the primary appliance in the pair. SonicWall includes centralized management and alerting as part of support, so NSM management needs an active support contract or security bundle.
What condition is the 03-SSC-7464 sold in, and what warranty applies?
Network Devices Inc. supplies the 03-SSC-7464 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
