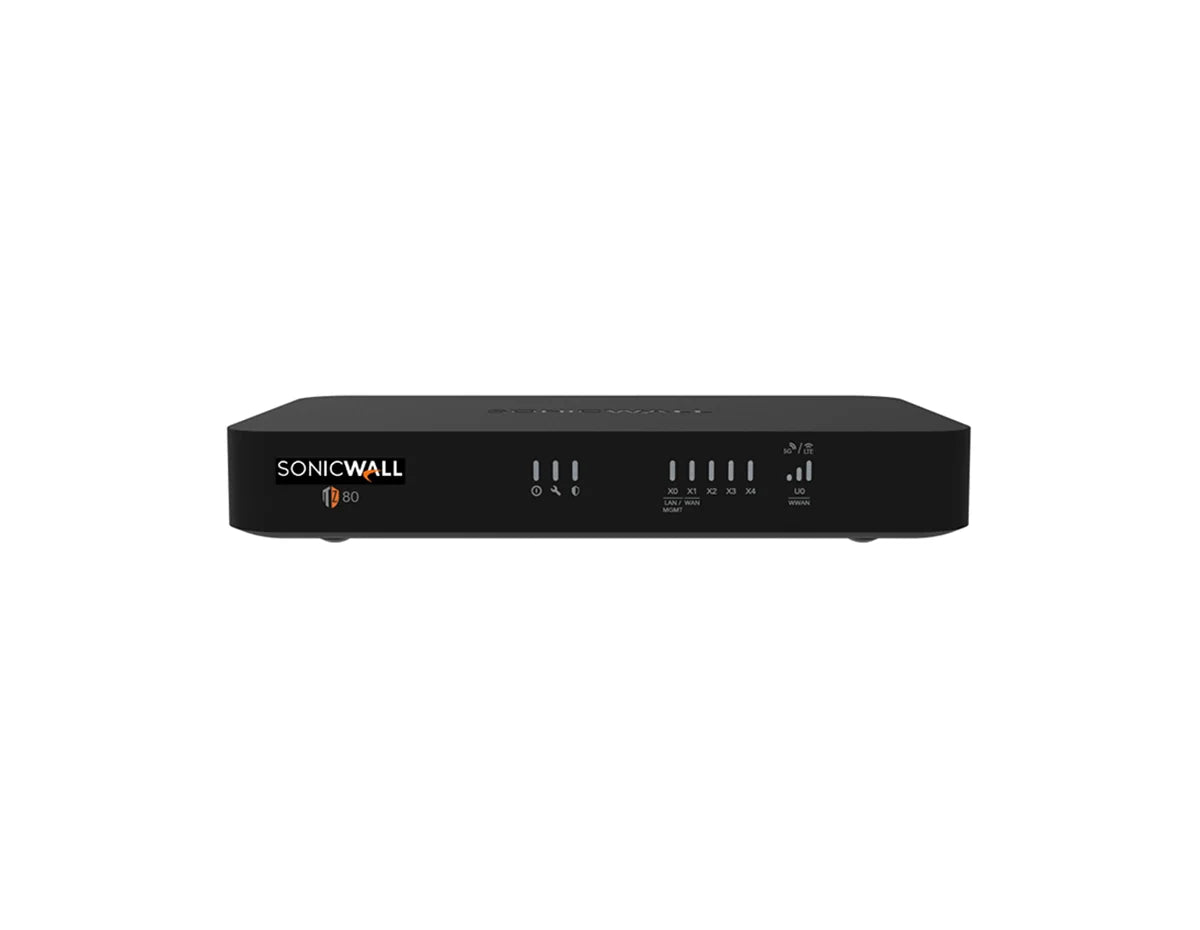

SonicWall TZ80 03-SSC-2749 Desktop Firewall, High Availability Unit
Overview
The SonicWall TZ80 is a subscription-based next-generation firewall for small offices, home offices and IoT deployments. SonicWall sells it only with a subscription such as Secure Connect Lite, Secure Connect or APSS; a hardware-only version is not available. The 03-SSC-2749 is the TZ80 High Availability unit. It is the secondary unit of a TZ80 high availability pair, supplied as an appliance with no security subscription attached, to be paired with a regular TZ80; support and security subscriptions are sold separately and licensed on the primary appliance.
Technical Details
The SonicWall TZ80 03-SSC-2749 is a desktop next-generation firewall running SonicOS, with 4×1GbE RJ45, 1×1GbE SFP. Threat Prevention throughput is 0.75 Gbps once the Advanced Protection Service Suite is licensed, the same as its firewall inspection throughput, and it holds up to 300,000 concurrent SPI connections. This part number is the High Availability unit of a TZ80 pair and must be paired with a regular TZ80 that carries a Secure Connect or APSS bundle. It is used at a small office, branch or retail site for internet-edge protection, SD-WAN and site-to-site VPN.
Best For
The TZ80 suits a small office, branch or retail site that needs 0.75 Gbps of Threat Prevention throughput and up to 300,000 concurrent SPI connections. It is bought to pair with an existing TZ80 for high availability.
Not suitable if:
- your inspected traffic exceeds 0.75 Gbps, the published Threat Prevention throughput
- you need a standalone firewall rather than the second unit of an HA pair
- you need Power over Ethernet from the firewall, since this model has none
- you need a rack-mount appliance, since this is a compact desktop unit
03-SSC-2749 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 4×1GbE RJ45, 1×1GbE SFP |
| Max Port Speed | 1 GbE |
| Management & Console Ports | 1×Console, 1×USB (type-C or type-A) |
| Performance & Scale | |
| Firewall Throughput | 0.75 Gbps |
| Threat Prevention Throughput | 0.75 Gbps |
| TLS/SSL Inspection Throughput | 0.25 Gbps (DPI SSL) |
| IPsec VPN Throughput | 0.75 Gbps |
| Maximum Concurrent Sessions | 300,000 (SPI) |
| New Sessions per Second | 7,500 |
| Maximum DPI Connections | 75,000 (DPI) |
| Maximum IPsec VPN Tunnels | 50 (site-to-site) |
| Power & Thermal | |
| Power Supply | 36 W; 100-240 VAC input (50-60 Hz), 3 A |
| Redundant Power Supply | No |
| Maximum Power Consumption | 11.6 W |
| Physical & Environmental | |
| Form Factor | Desktop |
| Dimensions (H x W x D) | 1.18 × 4.49 × 7.87 in (3.0 × 11.4 × 20.0 cm) |
| Weight | 0.97 lb (0.438 kg) |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS |
| High Availability | Active/Standby with stateful synchronization |
| Central Management Platform | Network Security Manager (NSM) 2.6 and above |
| Routing Protocols & IPv6 | BGP, OSPF, RIPv1/v2, static routes, policy-based routing |
FAQ
Does the SonicWall TZ80 03-SSC-2749 include a security subscription?
No. The 03-SSC-2749 carries no subscription of its own. It is paired with a regular TZ80, which SonicWall sells only with a subscription such as Secure Connect or APSS.
How much traffic can the SonicWall TZ80 03-SSC-2749 handle?
SonicWall publishes no user count, so size the TZ80 on its figures. Firewall inspection throughput is 0.75 Gbps, and Threat Prevention throughput is also 0.75 Gbps once the Advanced Protection Service Suite is licensed. It holds 300,000 concurrent SPI connections and 75,000 DPI connections, and opens 7,500 new connections per second.
What interfaces does the SonicWall TZ80 03-SSC-2749 have?
The TZ80 provides 4×1GbE RJ45, 1×1GbE SFP. Management and console connectivity is 1×Console, 1×USB (type-C or type-A). Transceivers for any SFP-type ports are sold separately.
Does the SonicWall TZ80 03-SSC-2749 support high availability?
This part number is the High Availability unit: the second appliance of a TZ80 HA pair. The TZ80 supports Active/Standby high availability with stateful synchronization.
Does the 03-SSC-2749 include SonicWall support?
The 03-SSC-2749 is a dedicated High Availability appliance. It must be paired with a regular TZ80. Once the two are associated on MySonicWall, the HA unit synchronizes its licensing with the primary appliance. Network Devices Inc. confirms the pairing and licensing before the order is placed.
How is the SonicWall TZ80 03-SSC-2749 managed?
The TZ80 is managed through Network Security Manager (NSM) 2.6 and above, and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the HA unit's licensing synchronizes with the primary appliance in the pair.
What condition is the 03-SSC-2749 sold in, and what warranty applies?
Network Devices Inc. supplies the 03-SSC-2749 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
