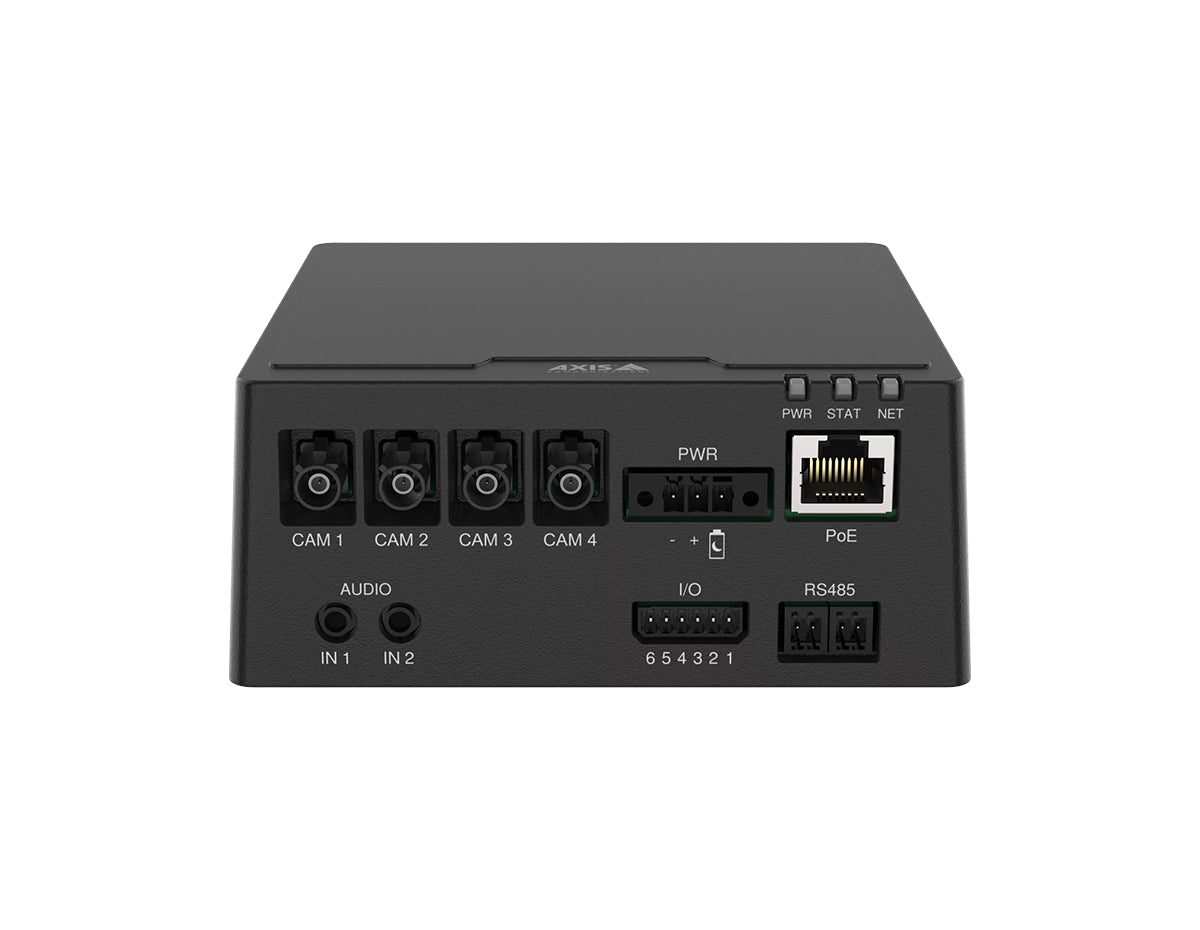

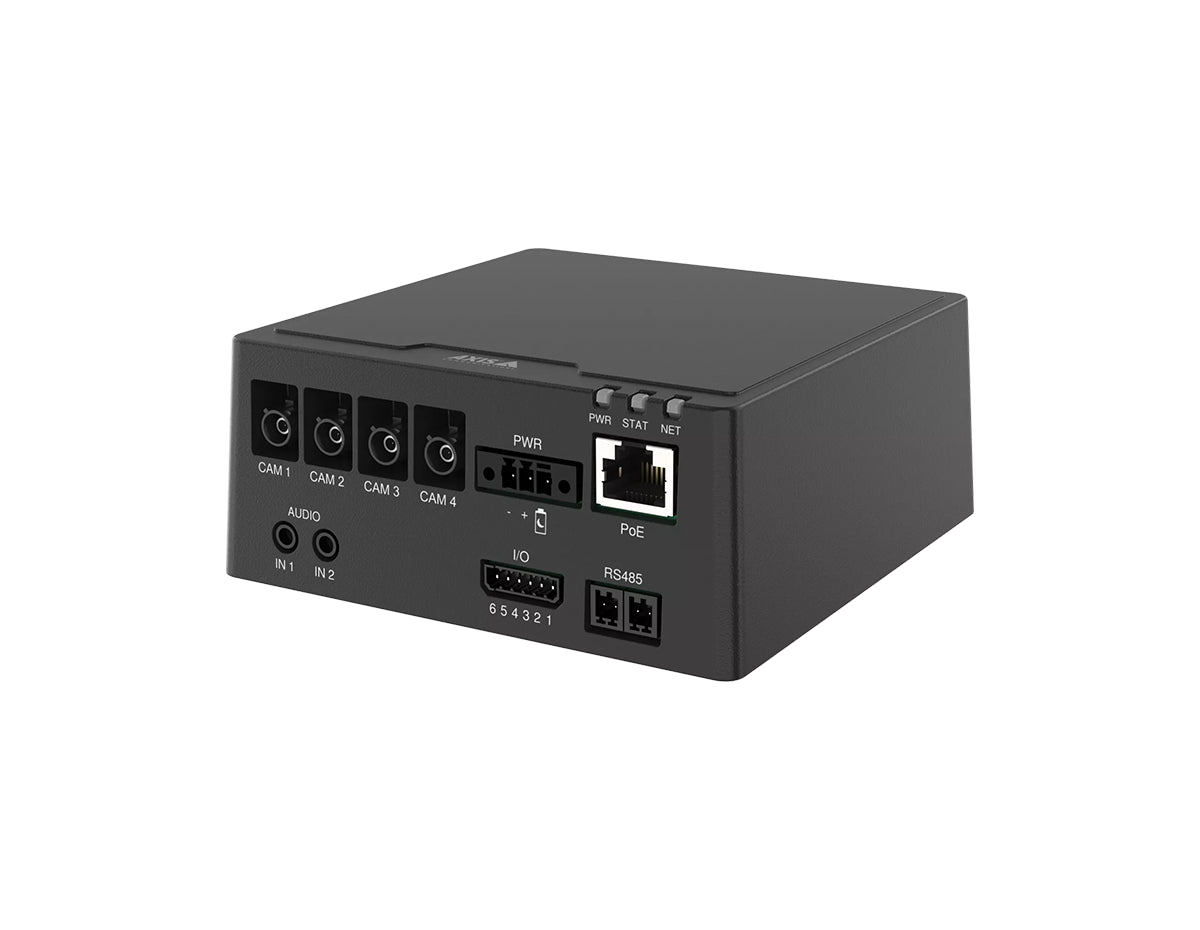

The AXIS F9114-R Mk II is engineered for harsh, high-vibration environments such as onboard vehicles and industrial machinery. With ARTPEC-8 processing, it runs multiple sensor units simultaneously and enables advanced deep-learning analytics directly on the device. Its secure design ensures trusted video evidence while maintaining strong resistance to physical conditions and cyber threats.
With FAKRA connectivity, modular sensor flexibility, and industry certifications including railway and automotive E-marking, this main unit delivers mission-critical reliability in mobile surveillance deployments.
High-performance rugged unit with AI-powered analytics and secure edge processing
- Runs 4 sensor units simultaneously for wide-area coverage
- Deep-learning video analytics for human and vehicle classification
- Edge Vault security ensures cryptographic key protection and device integrity
- Engineered for vibrations and shock with IP3X aluminum housing
- Works in extreme temperatures from -40 °C to 60 °C (-40 °F to 140 °F)
- Flexible power: PoE or 10–48 VDC hardwired
Ideal Use Cases
- Vehicle-mounted mobile surveillance
- Railway-compliant security systems
- Factory and industrial monitoring
- Transportation hubs and fleet monitoring
Technical Specifications Summary
- SoC: ARTPEC-8
- Video: Up to 4K 12/15 fps; up to 60/50 fps depending on sensor mode
- Security: TPM 2.0, Secure boot, Signed OS, AES encrypted storage
- Operating temp: -40 °C to 60 °C (-40 °F to 140 °F)
- Dimensions: Exact size per dimension drawings
- Weight: 680 g (1.5 lb)
Upgrade Your Operations
Enhance your rugged surveillance with AI-accelerated, secure, multi-sensor performance.
