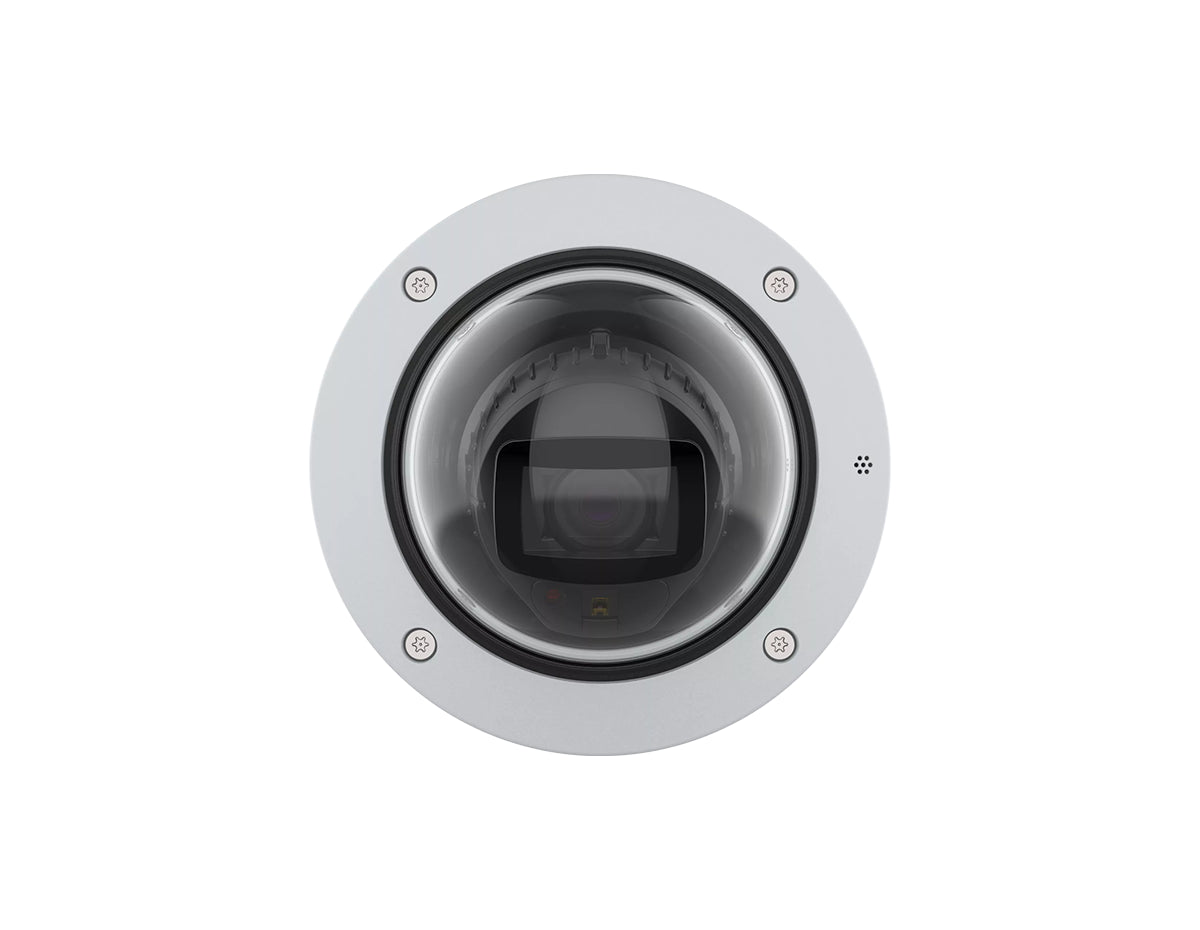

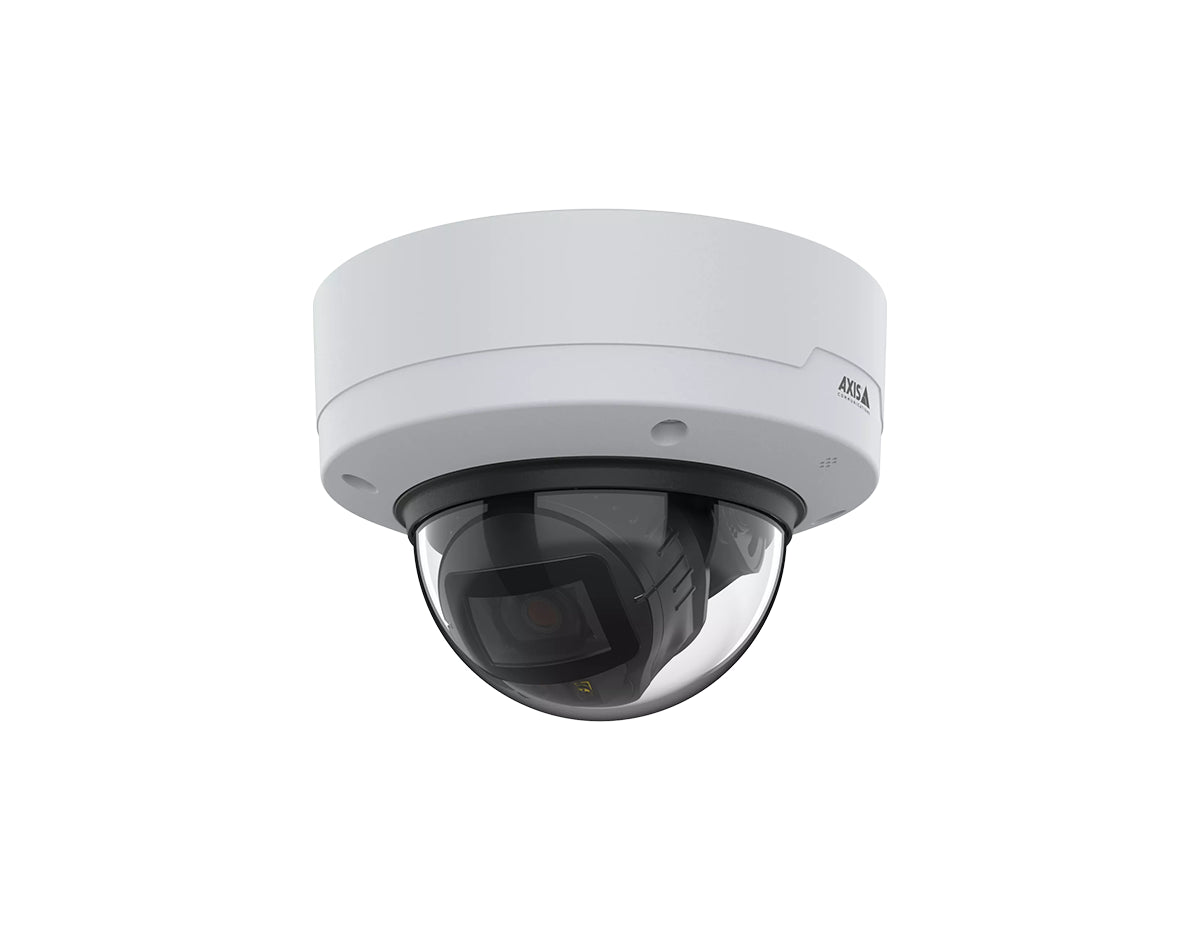

AXIS P3285-LVE 2 MP Outdoor Dome Camera 29 mm (02982-001)

AXIS P3285-LVE 2 MP Outdoor Dome Camera 29 mm (02982-001)

Name: AXIS P3285-LVE 2 MP Outdoor Dome Camera 29 mm (02982-001)
Brand: Axis
Price: 848.0 USD
Availability: InStock

Part Number: 02982-001

Technical Details

2 MP outdoor AI dome, 10.8–28.2 mm varifocal 29 mm lens, 45 m OptimizedIR, IK10 and IP66-rated, ARTPEC-9 with edge analytics, PoE powered

$848.00

Net 30 or as low as $/month

Apply Now

Product & Solutions Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

AI-Optimized Telephoto Dome for Demanding Perimeters

The AXIS P3285-LVE 29 mm dome camera delivers 2 MP video, long-range coverage, and AI analytics for critical outdoor security. Powered by the ARTPEC-9 SoC, it runs deep-learning apps on the edge to reduce server load and bandwidth use.

OptimizedIR up to 45 m, Forensic WDR, and Lightfinder 2.0 keep details visible in backlit gates, dark fences, and mixed lighting. Preinstalled AXIS applications and hardened cybersecurity help operators detect real threats quickly and keep systems resilient.

Key Benefits & Features

AI-powered detection: AXIS Object Analytics and Audio Analytics classify humans and vehicles in real time at the edge.
Telephoto varifocal lens: 10.8–28.2 mm P-Iris lens with 29.1°–11° horizontal field of view enables detailed views at distance.
Strong low-light imaging: 2 MP sensor with Forensic WDR, Lightfinder 2.0, and OptimizedIR ensures clear images day and night.
Outdoor-ready build: IK10, IP66, and NEMA 4X ratings protect against impact, dust, rain, and snow.
Secure by design: Axis Edge Vault, secure boot, and encrypted storage protect identities and video streams.

Ideal Use Cases

Perimeter protection for industrial plants, utilities, and logistics hubs.
Monitoring long access roads, driveways, and fenced compounds.
Guarding loading bays, parking areas, and equipment yards.
City surveillance masts needing a focused telephoto view.

Technical Specifications

Image sensor & resolution: 1/2.8" 2 MP CMOS, up to 1920x1080 at 50/60 fps.
Lens: Varifocal 10.8–28.2 mm, F1.70–1.76, 29.1°–11° horizontal field of view.
Minimum illumination: 0.08 lux color, 0.02 lux B/W; 0 lux with IR on.
IR illumination: Built-in OptimizedIR LEDs with up to 45 m reach (scene dependent).
Video compression: H.264, H.265, AV1, and Motion JPEG with Zipstream.
Housing ratings: IK10 impact resistance, IP66 and NEMA 4X weather protection.
Operating conditions: -40 °C to 50 °C (-40 °F to 122 °F), 10–100% RH.
Power & network: PoE IEEE 802.3af/at Class 3, max 10 W, RJ45 10/100 Mb/s.
Edge intelligence & security: AXIS Object Analytics, Image Health Analytics, Audio Analytics, Live Privacy Shield, and Axis Edge Vault.
Part number: 02982-001, AXIS P3285-LVE 29 mm.

Upgrade Your Outdoor Telephoto Coverage Now

Reinforce perimeter security and capture critical detail with this AI-ready Axis dome camera. Order today to modernize your video surveillance.

Properties

Model	AXIS P3285-LVE 29 mm
Product Type	Outdoor 2 MP AI-powered dome camera with audio analytics
Image Sensor	1/2.8" progressive scan RGB CMOS, 2.9 µm pixel size
System on Chip	ARTPEC-9 with deep learning processing unit (DLPU)
Max Resolution	1920 × 1080 (2 MP) 16:9; also 1280 × 800 (16:10), 1440 × 1080 (4:3)
Frame Rate	Up to 50/60 fps in all resolutions
Lens	Varifocal 10.8–28.2 mm, F1.70–1.76; IR corrected; remote zoom and focus; P-Iris control
Field of View (29 mm)	Horizontal 29.1° to 11°; Vertical 16.4° to 6.2°; minimum focus distance 3 m (9.84 ft)
Day/Night	Automatic IR-cut filter
Minimum Illumination (29 mm)	Color 0.08 lux at 50 IRE, F1.71; B/W 0.02 lux at 50 IRE, F1.71; 0 lux with IR on
Wide Dynamic Range	Forensic WDR up to 120 dB depending on scene
Low-light Technology	Axis Lightfinder 2.0
IR Illumination	OptimizedIR with 850 nm IR LEDs; reach 45 m (148 ft) or more depending on scene
Video Compression	H.264 Baseline/Main/High, H.265 Main, AV1, Motion JPEG; Axis Zipstream for AV1/H.264/H.265
Video Streams	Up to 20 unique and configurable video streams; VBR/ABR/MBR control; low latency mode
Enclosure Rating	Outdoor ready IP66, NEMA 4X and IK10 rated casing with polycarbonate hard-coated dome
Operating Conditions	Temperature -40 °C to 50 °C (-40 °F to 122 °F); start-up -30 °C (-22 °F); humidity 10 to 100% RH (condensing)
Storage Conditions	Temperature -40 °C to 65 °C (-40 °F to 149 °F); humidity 5 to 95% RH (non-condensing)
Power	PoE IEEE 802.3af/802.3at Type 1 Class 3; max 10 W; typical 3.4 W with heater and IR off
Local Storage	microSD/microSDHC/microSDXC card slot with SD card encryption; recording to NAS
Weight	Approx. 860 g (1.9 lb) for 29 mm lens variant

Specifications

Video Compression & Streaming	H.264, H.265, AV1, Motion JPEG; up to 20 unique streams; Axis Zipstream; controllable frame rate and bandwidth; VBR/ABR/MBR for H.264/H.265/AV1; low latency mode
Image Settings	Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode and zones, defog, barrel distortion correction, rotation 0°/90°/180°/270° including corridor format, mirroring, dynamic text and image overlay, overlay widgets, privacy masks, target aperture
Noise Reduction	Spatial (2D) and temporal (3D) noise reduction
PTZ & Installation Aids	Digital PTZ with preset positions, guard tour and control queue; built-in pixel counter, remote zoom and focus, straighten image, level grid
Network Interface	RJ45 10BASE-T/100BASE-TX PoE
Network Protocols	IPv4/IPv6, HTTP/HTTPS, HTTP/2, TLS, FTP/SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS/DDNS, NTP/PTP/NTS, RTSP/RTP/SRTP/RTSPS, TCP/UDP/IGMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, secure syslog and more
ONVIF & VMS Support	ONVIF Profile G, M, S and T; compatible with AXIS Camera Station and leading third-party VMS
I/O	Terminal block for one configurable supervised input/digital output, 12 V DC output, max load 25 mA
IR Illumination (29 mm)	OptimizedIR 850 nm LEDs; reach 45 m (148 ft) or more depending on scene
DORI Distances (29 mm)	Detect 149 to 394 m; Observe 59 to 157 m; Recognize 30 to 79 m; Identify 15 to 39 m (per EN 62676-4 pixel density guidelines)
Analytics – AXIS Object Analytics	Detects and classifies humans and vehicles (cars, buses, trucks, bikes, other); scenarios include line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoring (beta), motion in area and motion line crossing; up to 10 scenarios with visualized trajectories and color coded bounding boxes
Analytics – Other Apps	AXIS Audio Analytics, AXIS Image Health Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield, AXIS Video Motion Detection; support for AXIS Perimeter Defender, AXIS License Plate Verifier and ACAP third-party apps
Cybersecurity Platform	Axis Edge Vault with secure keystore (secure element), signed OS, secure boot, encrypted file system, Axis device ID, signed video; supports IEEE 802.1X, MACsec, HTTPS with HSTS, TLS 1.2/1.3, Network Time Security and host-based firewall
Certifications & Approvals	EMC: CISPR 35/32 Class A, EN 55035/55032 Class A, EN 50121-4, EN 61000-6-1/2 and others; Safety: IEC/EN/UL 62368-1, CSA C22.2; Environment: IEC 60068 series, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X
Environmental & Sustainability	PVC free and BFR/CFR free per JS709; RoHS compliant; renewable carbon-based plastic content 45% (bio-based 43%, carbon capture based 2%); screened for conflict minerals
Operating System Tools	Supported by AXIS Site Designer, AXIS Device Manager, product selector, accessory selector and lens calculator
Languages	Interface available in multiple languages including English, German, French, Spanish, Italian, Russian, Chinese (Simplified and Traditional), Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai and Vietnamese

Accessories

Included	Camera with weathershield, installation guide, terminal block connector, connector guard, cable gasket, owner authentication key
Optional – Installation	AXIS T8415 Wireless Installation Tool
Optional – Mounting	AXIS TP3206-E Recessed Mount; AXIS TP3103-E Pendant Kit
Optional – Storage	AXIS Surveillance Cards (microSD/microSDHC/microSDXC)
