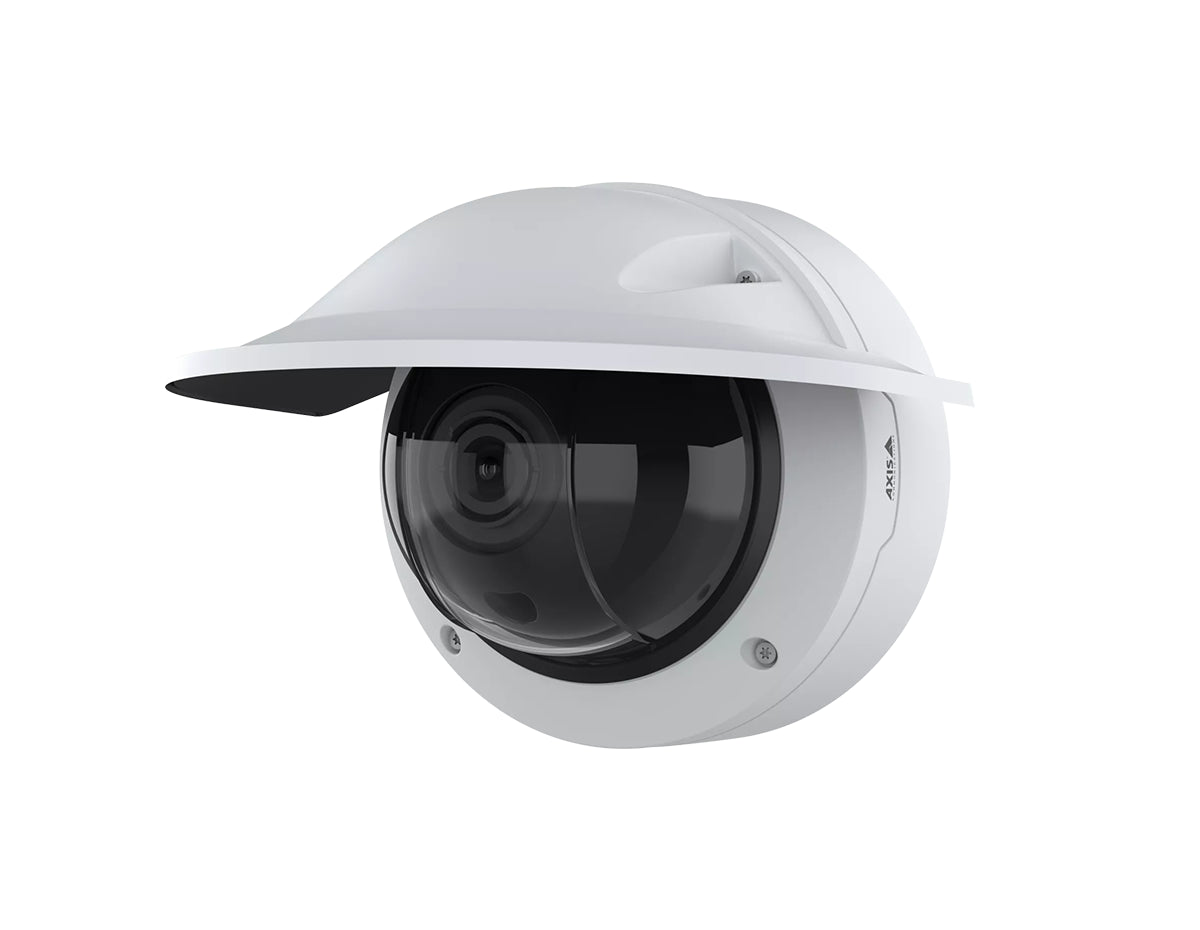

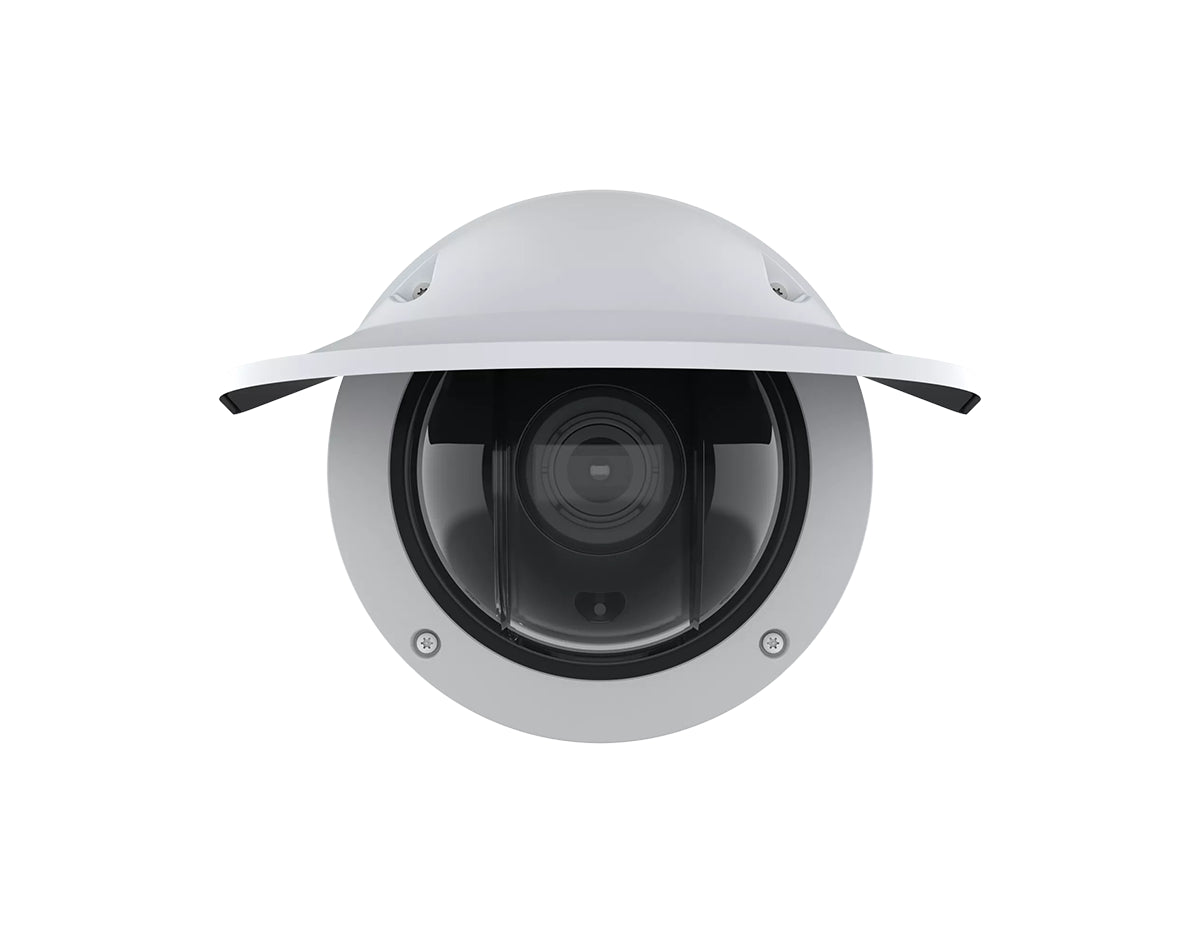

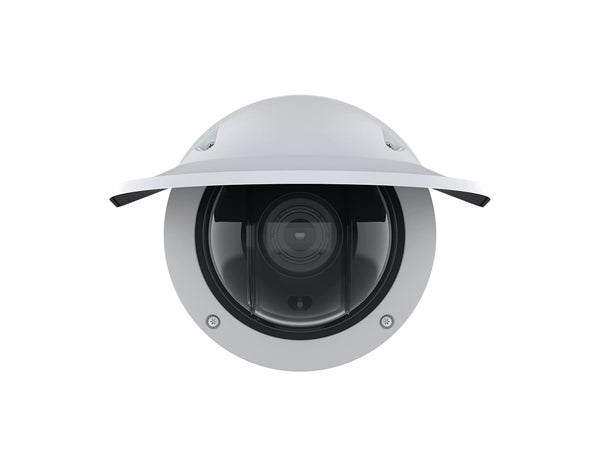

AXIS Q3548-LVE Dome Camera (02973-001)

Name: AXIS Q3548-LVE Dome Camera (02973-001)
Brand: Axis
Price: 1781.0 USD
Availability: InStock

Part Number: 02973-001

Technical Details

High-performance 8 MP outdoor-ready dome with OptimizedIR 60 m, Lightfinder 2.0, Forensic WDR, and ARTPEC-9 SoC.

$1,781.00

Net 30 or as low as $/month

Apply Now

Product & Solutions Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

High-Performance 8 MP AI Dome Built for Extreme Outdoor Surveillance

The AXIS Q3548-LVE is a next-generation 8 MP outdoor dome engineered for demanding environments that require crystal-clear imaging, strong low-light performance, and enterprise cybersecurity. Powered by the ARTPEC-9 SoC and a dedicated deep learning processing unit, it delivers advanced analytics directly on the edge for more accurate object detection and scene understanding.

With OptimizedIR up to 60 m, Forensic WDR, Lightfinder 2.0, and a large 1/1.2” sensor, the camera ensures superior clarity in full darkness, high-contrast scenes, and complex lighting. Rugged IP66/IP69 and IK10 protection, combined with NEMA 4X corrosion resistance, make it ideal for harsh outdoor deployments.

Key Benefits

8 MP ultra-clear imaging with a large 1/1.2” sensor for superior detail in all conditions
OptimizedIR up to 60 m ensures sharp visuals even in complete darkness
ARTPEC-9 SoC with DLPU enables advanced on-edge AI analytics
Forensic WDR and Lightfinder 2.0 optimize performance in challenging lighting
Rugged IP66/IP69, IK10, and NEMA 4X construction for extreme durability
Comprehensive cybersecurity with secure boot, signed OS, Edge Vault, and encrypted storage
Flexible installation with remote zoom/focus, multiple mount options, and full ACAP support

Ideal Use Cases

Critical infrastructure protection (energy, utilities, transportation)
City surveillance and perimeter security in harsh weather environments
Large commercial and industrial facilities requiring 24/7 monitoring
Ports, airports, and logistics hubs needing high-detail wide-area coverage
Any site needing advanced AI analytics directly on the camera

Technical Specifications Summary

Image sensor: 1/1.2” progressive scan RGB CMOS
Lens: 6.3–13 mm varifocal, IR corrected, 2× optical zoom
Video: Up to 3840×2160; H.264/H.265/AV1; WDR up to 120 dB
IR: OptimizedIR up to 60 m
Analytics: AXIS Object Analytics, Scene Metadata, Image Health Analytics
Cybersecurity: Secure boot, Edge Vault, encrypted filesystem
Environmental: IP66/IP69, IK10, -50 °C to 55 °C (-58 °F to 131 °F)
Power: PoE 802.3at / 8–28 V DC

Upgrade Your Operations

Deploy uncompromising 8 MP video quality with powerful AI-driven security analytics.

Properties

Model	AXIS Q3548-LVE Dome Camera (02973-001)
Product Type	Dome Camera
Image Sensor	1/1.2” progressive scan RGB CMOS
Lens	Varifocal 6.3–13 mm, F1.6–2.9; IR-corrected; remote zoom/focus; P-Iris control
Optical Zoom	2× optical zoom
Minimum Illumination	Color: 0.04 lux at 50 IRE; B/W: 0 lux; 0 lux with IR on
SoC	ARTPEC-9 with deep learning processing unit
WDR	Forensic WDR: up to 120 dB depending on scene
IR Illumination	OptimizedIR, 850 nm, range of reach 60 m (195 ft) or more depending on scene
Power	PoE IEEE 802.3at Type 2 Class 4 (max 25.5 W); 8–28 V DC (max 25.5 W)
Operating Conditions	-50 °C to 55 °C (-58 °F to 131 °F); start-up down to -40 °C (-40 °F); 10–100% RH (non-condensing)
Storage Conditions	-40 °C to 65 °C (-40 °F to 149 °F); 5–95% RH (non-condensing)
Environmental Rating	IP66/IP69, IP6K9K, IK10, NEMA 4X
Dimensions	See datasheet dimension drawing; EPA 0.041 m²
Weight	2310 g (5.1 lb)
Casing	Aluminum body; polycarbonate dome; weathershield
Storage	microSD/microSDHC/microSDXC; SD encryption; NAS support
Connectivity	Shielded RJ45 10/100/1000 Mbps; DC input; audio in; I/O terminal
Certifications	UL, FCC, CE, RCM, VCCI, KC, NEMA 4X, ETSI EN 303 645, TAA

Specifications

Performance	DLPU for deep learning analytics; >55 dB SNR; electronic image stabilization
Video	H.264/H.265/AV1/MJPEG; up to 3840×2160; up to 50/60 fps (no WDR), up to 25/30 fps (WDR); Axis Zipstream; multi-view up to 7 areas
Audio	Two-way audio; AAC-LC, G.711, G.726, Opus, LPCM; unbalanced mic/line input; speaker pairing
Connectivity	IPv4/IPv6, HTTPS/TLS, QoS, SFTP, SIP, SRTP, SNMP, MQTT, ONVIF G/M/S/T
Power Supply	PoE 802.3at (max 25.5 W); DC 8–28 V (max 25.5 W); power meter
Security Features	Axis Edge Vault; secure boot; signed OS; encrypted filesystem; FIPS 140; IEEE 802.1X; MACsec; secure keystore
Environmental	IP66/IP69/IP6K9K; IK10; -50 °C to 55 °C (-58 °F to 131 °F); corrosion-tested (ISO 21207 Method B)
Mounting Options	Bracket with junction box hole patterns; ¾” (M25) conduit entries
Sensors	Built-in gyroscopic EIS sensors
Analytics	AXIS Object Analytics; Image Health Analytics; Scene Metadata; Live Privacy Shield; supports ACAP apps
I/O	2 configurable supervised inputs/outputs (12 V DC output, 50 mA)
Storage	microSD/microSDHC/microSDXC; SD encryption; NAS recording
Approvals	CISPR, EN EMC series, EN 62368-1, IEC 60529, NEMA 4X, Railway IEC 62236-4

Accessories

Included	Camera, weathershield, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional Accessories	AXIS T61 MkII Audio & I/O Interface; AXIS T8415 Wireless Installation Tool; AXIS TQ3204-E Recessed Mount; AXIS TQ3103-E Pendant Kit; AXIS Surveillance Cards; AXIS TQ3818-E Dome Smoked
