Advanced Outdoor AI Dome with Powerful 4.7–10 mm Varifocal Optics

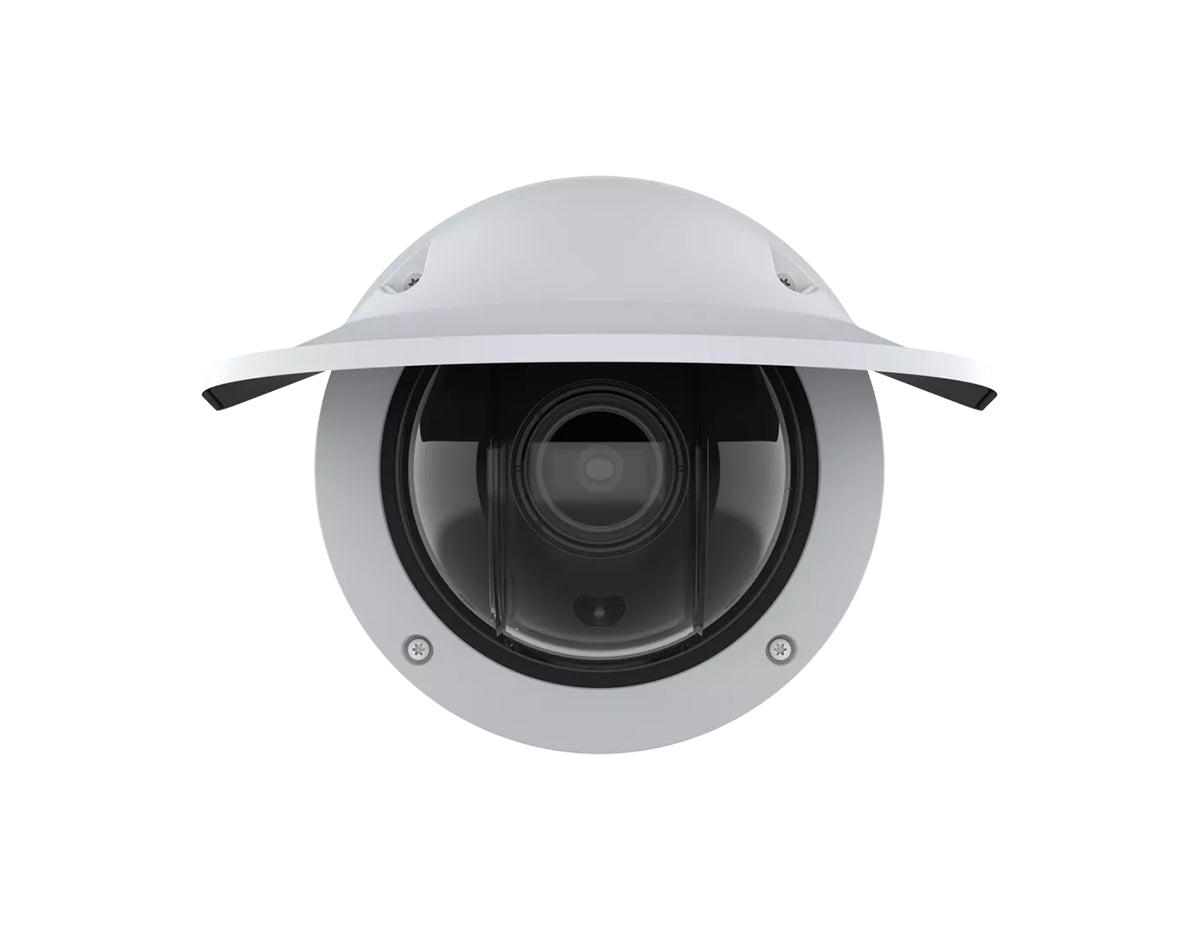

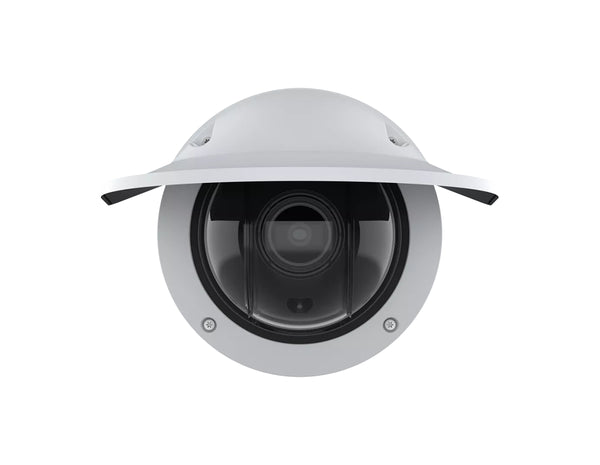

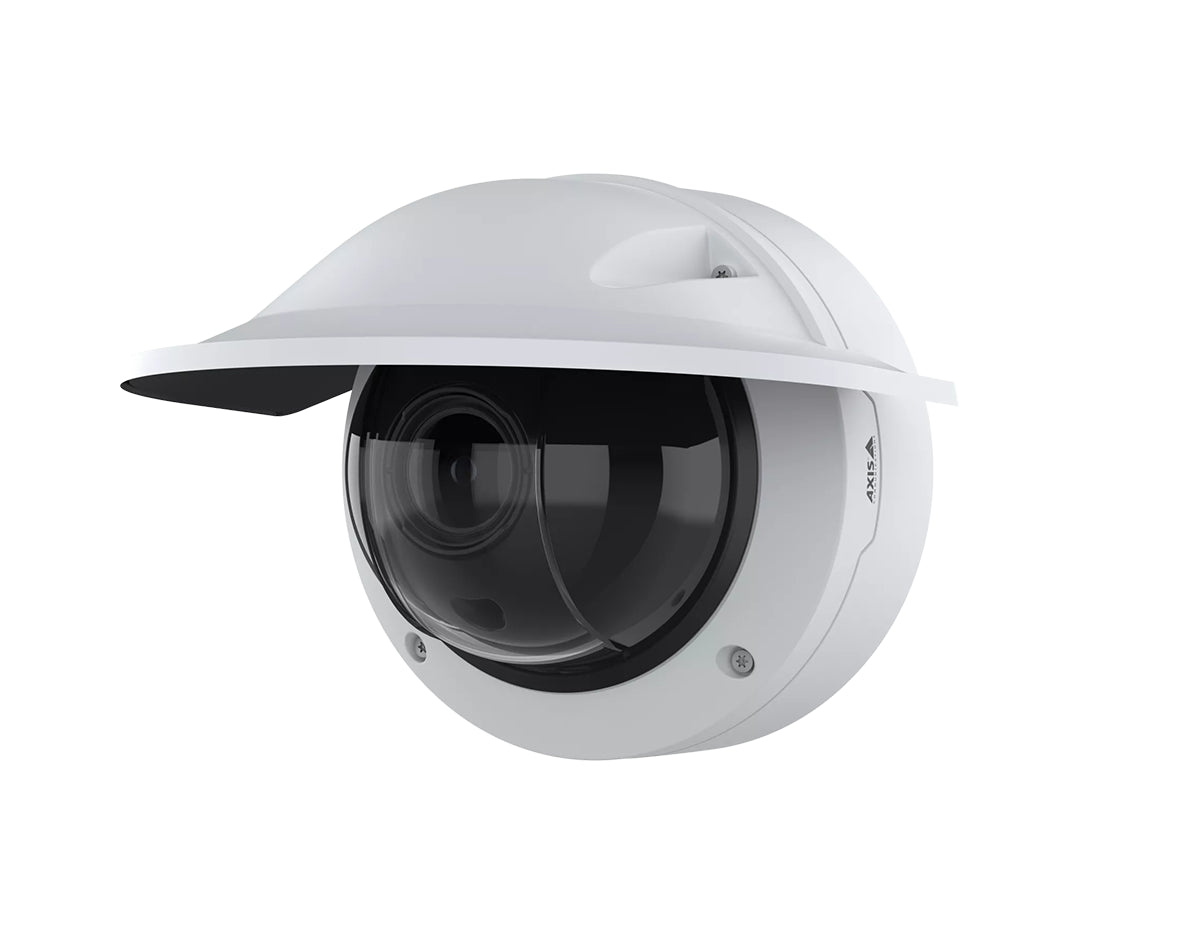

The AXIS Q3546-LVE 10 mm Dome Camera delivers outstanding 4 MP image quality even in harsh outdoor environments. Built on AXIS ARTPEC-9 with a deep learning processing unit, it enables powerful edge analytics such as AXIS Object Analytics and rich scene metadata. The 4.7–10 mm varifocal lens with 2.2× optical zoom offers flexible wide-to-tele coverage, while the IR-shielded dome and OptimizedIR up to 60 m ensure clear, low-noise video even in complete darkness.
Designed for demanding installations, this IP66/IP69/IP6K9K-, IK10- and NEMA 4X-rated dome features a robust aluminum housing and hard-coated polycarbonate dome to withstand extreme temperatures, vibration, and corrosion. With Axis Edge Vault, secure boot, signed OS and video, and encrypted storage, it provides strong, hardware-based cybersecurity for critical applications.
Key Benefits
- 4 MP resolution with Lightfinder 2.0 and Forensic WDR for superior performance in low light and high-contrast scenes
- 4.7–10 mm varifocal lens with 2.2× optical zoom for flexible wide and tele coverage
- OptimizedIR up to 60 m with IR-shielded dome to reduce reflections and preserve details at night
- ARTPEC-9 SoC with DLPU for advanced AI analytics at the edge
- Rugged outdoor design with IP66/IP69/IP6K9K, IK10, and NEMA 4X ratings for harsh environments
- Comprehensive cybersecurity with Axis Edge Vault, secure keystore, signed OS/video, and encrypted filesystem
- Seamless integration via ONVIF, SIP, VAPIX, ACAP, and major video management systems
Ideal Use Cases
- Critical infrastructure protection for energy, utilities, and transportation hubs
- Perimeter security for industrial facilities, logistics centers, and large campuses
- Harsh-weather outdoor surveillance in environments with vibration, salt spray, or corrosion
- Analytics-driven monitoring where object classification, counting, and occupancy insights are required
- High-security installations that demand signed video evidence and hardened cyber protection
Technical Specifications Summary
- Image sensor: 1/1.8" RGB CMOS, 2.9 µm pixel size
- Lens: 4.7–10 mm varifocal, F1.1–1.2, 2.2× optical zoom; HFOV 101°–44°; VFOV 54°–25°
- Video: Up to 4 MP (2688×1512) at 25/30 fps with WDR; up to 100/120 fps without WDR; H.264/H.265/AV1/MJPEG with Zipstream
- IR range: OptimizedIR up to 60 m or more (scene-dependent)
- Analytics: AXIS Object Analytics, Scene Metadata, Image Health Analytics, Video Motion Detection, Live Privacy Shield; supports Perimeter Defender and License Plate Verifier
- Power: PoE IEEE 802.3at Type 2 Class 4 or 8–28 V DC; max 25.5 W
- Durability: IP66, IP69, IP6K9K, IK10, NEMA 4X; tested for vibration, shock, and corrosion
- Operating conditions: −50 °C to 55 °C; 10–100% RH (non-condensing)
Upgrade Your Operations
Deploy the AXIS Q3546-LVE 10 mm Dome Camera to combine advanced AI-powered analytics, long-range IR performance, and robust environmental protection in a single, versatile outdoor-ready dome.
