Description

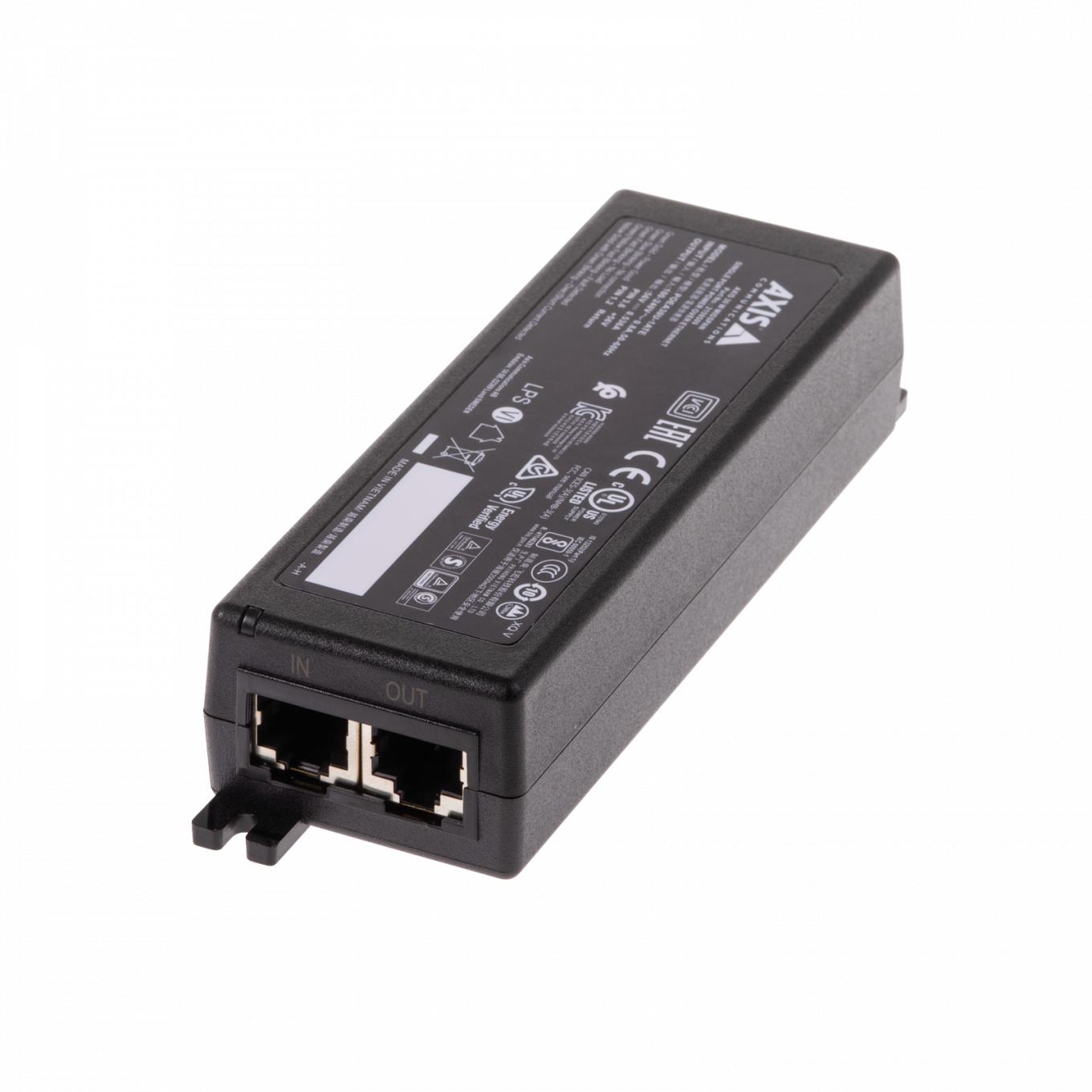

Axis 30 W Midspan

The Axis 30 W Midspan is a reliable and efficient power solution designed to deliver up to 30 W of power to one network device. Compliant with IEEE 802.3af (15 W) and IEEE 802.3at (30 W) standards, it ensures compatibility with most Axis network products that support PoE. This midspan provides a simple, cost-effective way to power network devices through a single Ethernet cable, injecting both power and data without the need to replace existing Ethernet switches or cabling infrastructure. With its plug-and-play design, installation is quick and easy.

Key Features:

• PoE Compatibility: Supports both IEEE 802.3af and IEEE 802.3at standards, providing up to 30 W of power.
• High Data Rate: Delivers data at speeds of 10/100/1000 Mbps, ensuring fast and reliable connectivity.
• Wide Input Range: Operates with an AC input voltage of 100 to 240 V, making it versatile for various installations.
• Easy Installation: Plug-and-play design with automatic PoE detection and front panel LED indicators for power and connectivity status.
• Durable Design: Built to operate in a wide temperature range and withstand harsh environmental conditions.

Technical Overview:

• Recommended for: Powering network devices in environments where a simple, reliable PoE solution is required.
• Power Input: 100 to 240 V AC, 47–63 Hz.
• Power Output: 56 V DC, up to 30 W according to IEEE 802.3at standards.
• Data Rate: 10/100/1000 Mbps.
• Operating Conditions: -20 °C to 40 °C (-4 °F to 104 °F) at 30 W; -20 °C to 55 °C (-4 °F to 131 °F) at 15 W.
• Dimensions: 30 x 46 x 140.1 mm (1.1 x 1.8 x 5.5 in).
• Weight: 145 g (0.3 lb).
• Mounting Options: Wall, shelf, or DIN rail (optional accessory).
• Included Accessories: Installation guide, Mains IEC-C13 cable.

You can check the related tab for the Axis 30 W Midspan datasheet.
