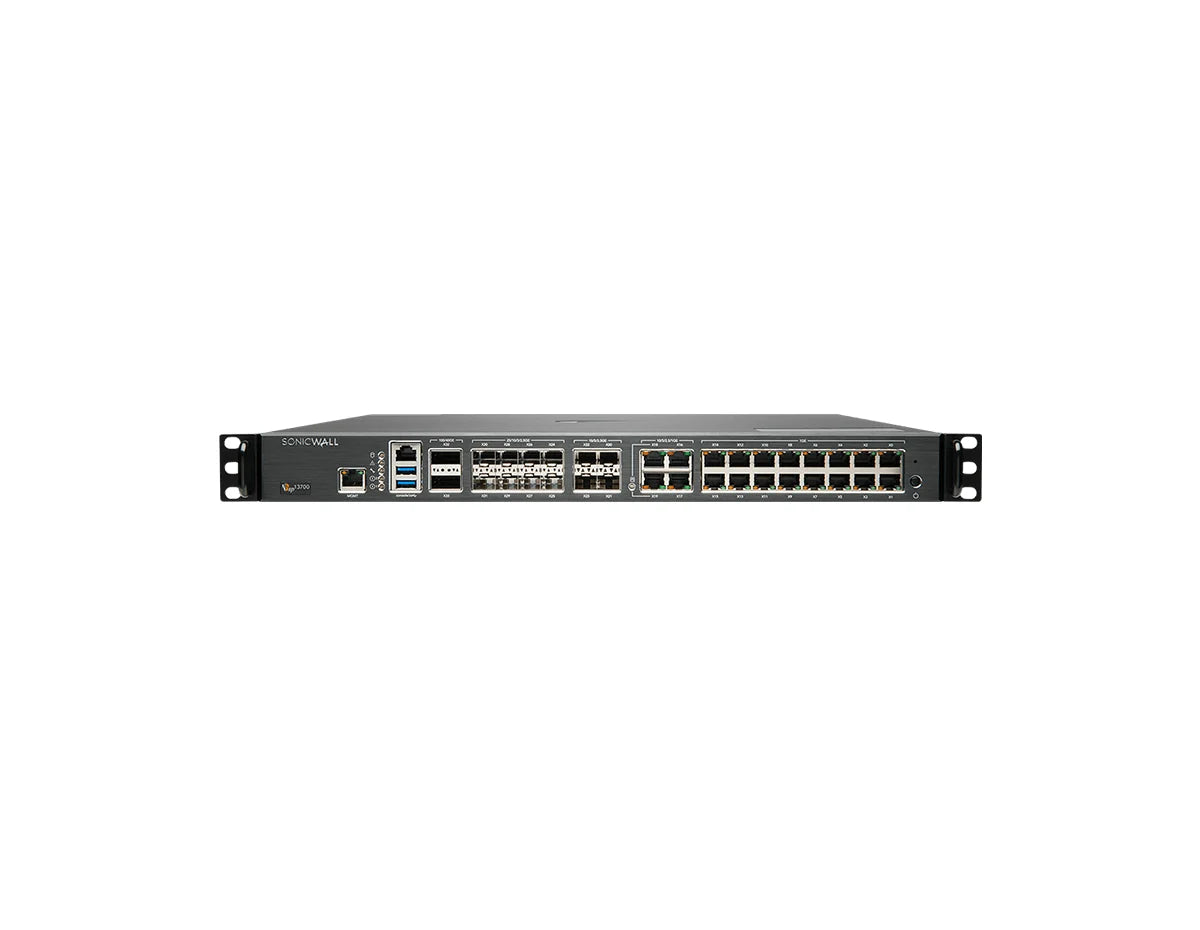

SonicWall NSsp 13700 02-SSC-8401 1U Rackmount Firewall, Appliance Only
Overview
The SonicWall Gen 7 NSsp (Network Security services platform) Series is a high-port-density next-generation firewall line built to process several million connections for zero-day and advanced threats in large enterprises. The 02-SSC-8401 is the NSsp 13700 appliance. It is supplied as Appliance Only: the firewall, VPN and routing run on SonicOS 7, while SonicWall support and optional security subscriptions are sold separately.
Technical Details
The SonicWall NSsp 13700 02-SSC-8401 is a 1U rackmount next-generation firewall running SonicOS 7, with 16×1GbE RJ45, 4×10/5/2.5/1GbE RJ45, 4×10/5/2.5GbE SFP+, 8×25/10/5/2.5GbE SFP28, 2×100/40GbE QSFP28. Threat Prevention throughput is 45.5 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (60 Gbps firewall inspection), and it holds up to 25,000,000 concurrent SPI connections and opens 280,000 new connections per second. This part number is Appliance Only: SonicWall support and optional security subscriptions are sold separately. It is used at a large-enterprise or data-center edge for north-south inspection and high-connection-count workloads.
Best For
The NSsp 13700 suits a large-enterprise or data-center edge that needs 45.5 Gbps of Threat Prevention throughput and up to 25,000,000 concurrent SPI connections. It suits buyers who already hold SonicWall support or plan to add it. Size against the Threat Prevention figure, not the firewall inspection throughput.
Not suitable if:
- your inspected traffic exceeds 45.5 Gbps, the published Threat Prevention throughput
- you need security services included in the part number, since this one is Appliance Only
02-SSC-8401 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 16×1GbE RJ45, 4×10/5/2.5/1GbE RJ45, 4×10/5/2.5GbE SFP+, 8×25/10/5/2.5GbE SFP28, 2×100/40GbE QSFP28 |
| Max Port Speed | 100 GbE |
| Management & Console Ports | 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB (type-A) |
| Performance & Scale | |
| Firewall Throughput | 60 Gbps (RFC 2544) |
| Threat Prevention Throughput | 45.5 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled) |
| TLS/SSL Inspection Throughput | 16.5 Gbps (DPI SSL) |
| IPsec VPN Throughput | 29 Gbps (1418-byte UDP, AESGMAC16-256) |
| Maximum Concurrent Sessions | 25,000,000 (SPI) |
| New Sessions per Second | 280,000 |
| Maximum DPI Connections | 22,000,000 (DPI) |
| Maximum IPsec VPN Tunnels | 12,000 (site-to-site) |
| Hardware & Memory | |
| Onboard Storage | 1.5 TB |
| Power & Thermal | |
| Power Supply | 2×350 W, hot-swappable; 100-240 VAC input (50-60 Hz) |
| Redundant Power Supply | Yes |
| Maximum Power Consumption | 181.2 W |
| Cooling | 3 removable fans |
| Physical & Environmental | |
| Form Factor | 1U Rackmount |
| Dimensions (H x W x D) | 1.8 × 16.9 × 18.1 in (4.5 × 43 × 46 cm) |
| Weight | 20.1 lb (9.1 kg) |
| Operating Temperature | 32 to 105 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS 7 |
| High Availability | Active/Passive with stateful synchronization |
| Central Management Platform | Network Security Manager (NSM) 3.0 and above |
| Routing Protocols & IPv6 | BGP4, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6/USGv6 certified |
FAQ
Does the SonicWall NSsp 13700 02-SSC-8401 include a security subscription?
No. The 02-SSC-8401 is Appliance Only: firewall, VPN and routing run on SonicOS 7, while SonicWall support and security subscriptions such as the Advanced Protection Security Suite are sold separately.
How much traffic can the SonicWall NSsp 13700 02-SSC-8401 handle?
SonicWall publishes no user count, so size the NSsp 13700 on its figures. Firewall inspection throughput is 60 Gbps, but Threat Prevention throughput is 45.5 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 25,000,000 concurrent SPI connections and 22,000,000 DPI connections, and opens 280,000 new connections per second.
What interfaces does the SonicWall NSsp 13700 02-SSC-8401 have?
The NSsp 13700 provides 16×1GbE RJ45, 4×10/5/2.5/1GbE RJ45, 4×10/5/2.5GbE SFP+, 8×25/10/5/2.5GbE SFP28, 2×100/40GbE QSFP28. Management and console connectivity is 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB (type-A). Transceivers for any SFP-type ports are sold separately.
Does the SonicWall NSsp 13700 02-SSC-8401 support high availability?
The NSsp 13700 supports Active/Passive high availability with stateful synchronization. The NSsp datasheet prints no clustering mode, so none is claimed for this appliance.
What is the difference between the NSsp 13700 and the NSsp 15700?
The NSsp 13700 runs SonicOS 7, while the NSsp 15700 runs SonicOSX 7. The NSsp 13700 is rated at 60 Gbps firewall inspection throughput, 45.5 Gbps Threat Prevention throughput and 25,000,000 concurrent SPI connections; the NSsp 15700 is rated at 105 Gbps, 82 Gbps and 40,000,000. Check both interface sets in the specification tables.
Does the 02-SSC-8401 include SonicWall support?
Support is not included with an Appliance Only part number. SonicWall support and optional security subscriptions are sold separately, and Network Devices Inc. confirms the correct support option before the order is placed.
How is the SonicWall NSsp 13700 02-SSC-8401 managed?
The NSsp 13700 is managed through Network Security Manager (NSM) 3.0 and above, and locally through the SonicOS web interface and CLI. Firewall policy, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them. SonicWall includes centralized management and alerting as part of support, so NSM management needs an active support contract or security bundle.
What condition is the 02-SSC-8401 sold in, and what warranty applies?
Network Devices Inc. supplies the 02-SSC-8401 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
