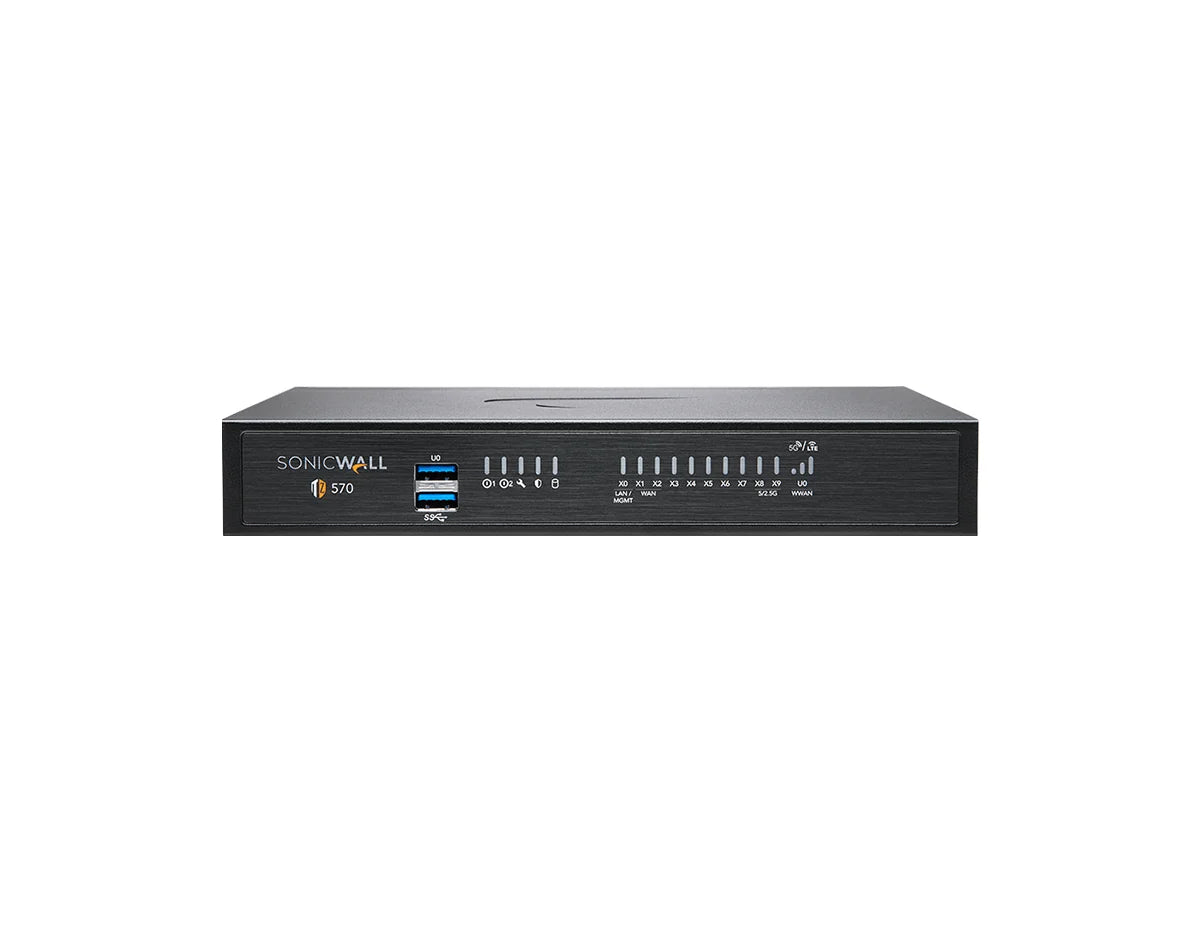

SonicWall TZ570W 02-SSC-5861 Desktop Firewall, Wireless-AC, 8x5 Support 1-Year, International
Overview
The SonicWall TZ Series (Gen 7) is an integrated SD-Branch platform for small and midsize businesses and branch offices in a desktop form factor. It runs SonicOS 7 with Secure SD-WAN, zero-touch deployment and management through the cloud or the firewall itself, and it integrates SonicWall Switch, SonicWave access points and Capture Client. The 02-SSC-5861 is the TZ570W Wireless-AC 8x5 Support bundle in the international (INTL) variant. It combines the appliance with 1 year (12 months) of 8x5 support with SaaS or on-premises NSM management and 7-day alerting, and no security services.
Technical Details
The SonicWall TZ570W 02-SSC-5861 is a desktop next-generation firewall running SonicOS 7, with 8×1GbE RJ45, 2×5GbE SFP+. Threat Prevention throughput is 2 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (4 Gbps firewall inspection), and it holds up to 1,250,000 concurrent SPI connections. The Wireless-AC model adds a 2x2 802.11ac Wave 2 radio. This part number bundles the appliance with 8x5 Support for 1 year (12 months). It is used at a small office, branch or retail site for internet-edge protection, SD-WAN and site-to-site VPN.
Best For
The TZ570W suits a small office, branch or retail site that needs 2 Gbps of Threat Prevention throughput and up to 1,250,000 concurrent SPI connections. It suits buyers who want 8x5 Support for 1 year activated with the hardware. Size against the Threat Prevention figure, not the firewall inspection throughput.
Not suitable if:
- your inspected traffic exceeds 2 Gbps, the published Threat Prevention throughput
- you need security services, since this bundle carries 8x5 support and NSM management but no security services
- you need Power over Ethernet from the firewall, since this model has none
- you require rack mounting without an additional kit, since this is a desktop appliance and requires a separate rackmount kit for rack installation
02-SSC-5861 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 8×1GbE RJ45, 2×5GbE SFP+ |
| Max Port Speed | 5 GbE |
| Management & Console Ports | 1×Console, 2×USB 3.0 |
| Performance & Scale | |
| Firewall Throughput | 4 Gbps (RFC 2544) |
| Threat Prevention Throughput | 2 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled) |
| TLS/SSL Inspection Throughput | 0.75 Gbps (DPI SSL) |
| IPsec VPN Throughput | 1.8 Gbps (1418-byte UDP, AESGMAC16-256) |
| Maximum Concurrent Sessions | 1,250,000 (SPI) |
| New Sessions per Second | 16,000 |
| Maximum DPI Connections | 400,000 (DPI) |
| Maximum IPsec VPN Tunnels | 200 (site-to-site) |
| Power & Thermal | |
| Power Supply | 60 W external; 100-240 VAC input (50-60 Hz) |
| Redundant Power Supply | Optional |
| Maximum Power Consumption | 15.3 W |
| Physical & Environmental | |
| Form Factor | Desktop |
| Dimensions (H x W x D) | 1.38 × 5.91 × 8.85 in (3.5 × 15 × 22.5 cm) |
| Weight | 2.18 lb (0.99 kg) |
| Operating Temperature | 32 to 105 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS 7 |
| High Availability | Active/Standby; stateful synchronization requires the optional Stateful HA Upgrade license |
| Central Management Platform | Network Security Manager, GMS |
| Routing Protocols & IPv6 | BGP, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6/USGv6 certified |
FAQ
Does the SonicWall TZ570W 02-SSC-5861 include a security subscription?
It includes support, not security subscriptions. The 02-SSC-5861 bundles the appliance with 8x5 support for 1 year (12 months); security services such as intrusion prevention and content filtering are sold separately.
How much traffic can the SonicWall TZ570W 02-SSC-5861 handle?
SonicWall publishes no user count, so size the TZ570W on its figures. Firewall inspection throughput is 4 Gbps, but Threat Prevention throughput is 2 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 1,250,000 concurrent SPI connections and 400,000 DPI connections, and opens 16,000 new connections per second.
What interfaces does the SonicWall TZ570W 02-SSC-5861 have?
The TZ570W provides 8×1GbE RJ45, 2×5GbE SFP+. Management and console connectivity is 1×Console, 2×USB 3.0. Transceivers for any SFP-type ports are sold separately.
Does the SonicWall TZ570W 02-SSC-5861 support high availability?
The TZ570W supports Active/Standby high availability; stateful synchronization requires SonicWall's optional Stateful HA Upgrade license for the TZ570 series.
What is the difference between the TZ570W and the TZ570?
The TZ570W adds an integrated radio to the TZ570; firewall inspection, Threat Prevention and connection figures are the same series figures. Maximum power consumption is 15.3 W on the TZ570W against 13.4 W on the TZ570.
Does the SonicWall TZ570W 02-SSC-5861 have built-in Wi-Fi?
Yes. The TZ570W is the Wireless-AC model, with a 2x2 802.11ac Wave 2 radio, and SonicWall's datasheet notes that the integrated wireless models support either the 2.4 GHz or the 5 GHz band rather than both at once. For larger wireless deployments SonicWall pairs its firewalls with SonicWave access points.
Does the 02-SSC-5861 include SonicWall support?
Yes. The 02-SSC-5861 includes 8x5 support for 1 year (12 months). Security subscriptions and 24x7 support are sold separately.
How is the SonicWall TZ570W 02-SSC-5861 managed?
The TZ570W is managed through Network Security Manager (NSM), and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them.
What condition is the 02-SSC-5861 sold in, and what warranty applies?
Network Devices Inc. supplies the 02-SSC-5861 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
