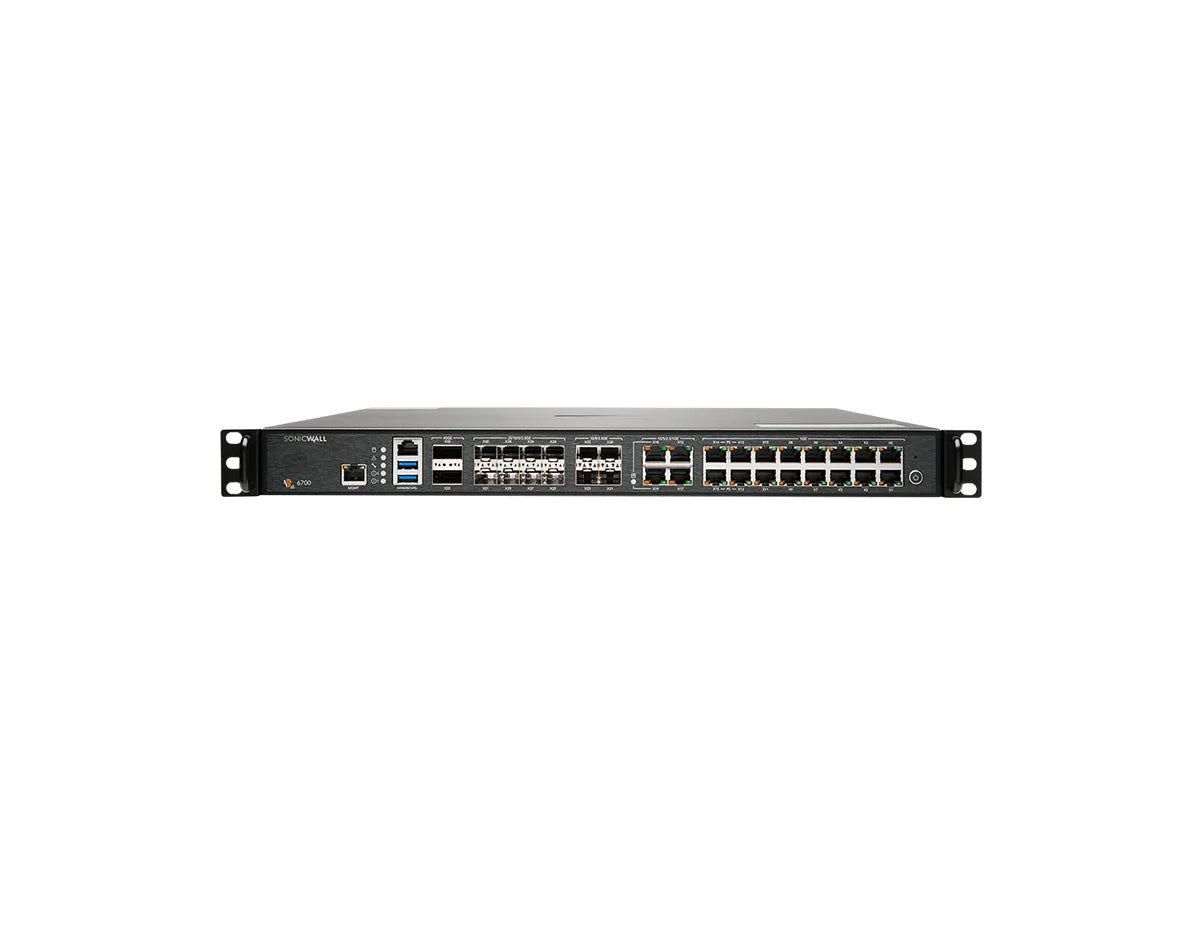

SonicWall NSa 6700 02-SSC-4332 1U Rackmount Firewall, Appliance Only
Overview
The SonicWall Gen 7 NSa Series is a 1U next-generation firewall line for medium- to large-sized enterprises. The 02-SSC-4332 is the NSa 6700 appliance. It is supplied as Appliance Only: the firewall, VPN and routing run on SonicOS 7, while SonicWall support and optional security subscriptions are sold separately.
Technical Details
The SonicWall NSa 6700 02-SSC-4332 is a 1U rackmount next-generation firewall running SonicOS 7, with 16×1GbE RJ45, 4×10/5/2.5/1GbE RJ45, 4×10/5/2.5/1GbE SFP+, 8×25GbE, 2×40GbE QSFP+. Threat Prevention throughput is 19 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (36 Gbps firewall inspection), and it holds up to 8,000,000 concurrent SPI connections. This part number is Appliance Only: SonicWall support and optional security subscriptions are sold separately. It is used at a campus or main-office internet edge, in the DMZ and between user and server segments.
Best For
The NSa 6700 suits a campus or main-office internet edge that needs 19 Gbps of Threat Prevention throughput and up to 8,000,000 concurrent SPI connections. It suits buyers who already hold SonicWall support or plan to add it. Size against the Threat Prevention figure, not the firewall inspection throughput.
Not suitable if:
- your inspected traffic exceeds 19 Gbps, the published Threat Prevention throughput
- you need security services included in the part number, since this one is Appliance Only
02-SSC-4332 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 16×1GbE RJ45, 4×10/5/2.5/1GbE RJ45, 4×10/5/2.5/1GbE SFP+, 8×25GbE, 2×40GbE QSFP+ |
| Max Port Speed | 40 GbE |
| Management & Console Ports | 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB 3.0 |
| Performance & Scale | |
| Firewall Throughput | 36 Gbps (RFC 2544) |
| Threat Prevention Throughput | 19 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled) |
| TLS/SSL Inspection Throughput | 9 Gbps (DPI SSL) |
| IPsec VPN Throughput | 19 Gbps (1418-byte UDP, AESGMAC16-256) |
| Maximum Concurrent Sessions | 8,000,000 (SPI) |
| New Sessions per Second | 228,000 |
| Maximum DPI Connections | 6,000,000 (DPI) |
| Maximum IPsec VPN Tunnels | 6,000 (site-to-site) |
| Hardware & Memory | |
| Onboard Storage | 256 GB M.2 (storage expansion slot up to 1 TB) |
| Power & Thermal | |
| Power Supply | 350 W; 100-240 VAC input (50-60 Hz) |
| Redundant Power Supply | Optional |
| Maximum Power Consumption | 139.2 W |
| Cooling | 3 removable fans |
| Physical & Environmental | |
| Form Factor | 1U Rackmount |
| Dimensions (H x W x D) | 1.8 × 16.9 × 18.1 in (4.5 × 43 × 46.5 cm) |
| Weight | 17.9 lb (8.1 kg) |
| Operating Temperature | 32 to 105 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS 7 |
| High Availability | Active/Passive with stateful synchronization |
| Central Management Platform | Network Security Manager (NSM) |
| Routing Protocols & IPv6 | BGP4, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6/USGv6 certified |
FAQ
Does the SonicWall NSa 6700 02-SSC-4332 include a security subscription?
No. The 02-SSC-4332 is Appliance Only: firewall, VPN and routing run on SonicOS 7, while SonicWall support and security subscriptions such as the Advanced Protection Security Suite are sold separately.
How much traffic can the SonicWall NSa 6700 02-SSC-4332 handle?
SonicWall publishes no user count, so size the NSa 6700 on its figures. Firewall inspection throughput is 36 Gbps, but Threat Prevention throughput is 19 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 8,000,000 concurrent SPI connections and 6,000,000 DPI connections, and opens 228,000 new connections per second.
What interfaces does the SonicWall NSa 6700 02-SSC-4332 have?
The NSa 6700 provides 16×1GbE RJ45, 4×10/5/2.5/1GbE RJ45, 4×10/5/2.5/1GbE SFP+, 8×25GbE, 2×40GbE QSFP+. Management and console connectivity is 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB 3.0. Transceivers for any SFP-type ports are sold separately.
Does the SonicWall NSa 6700 02-SSC-4332 support high availability?
The NSa 6700 supports Active/Passive high availability with stateful synchronization.
What is the difference between the NSa 6700 and the NSa 5700?
Both run the same SonicOS 7. The NSa 6700 is rated at 36 Gbps firewall inspection throughput, 19 Gbps Threat Prevention throughput and 8,000,000 concurrent SPI connections; the NSa 5700 is rated at 28 Gbps, 15 Gbps and 5,000,000. Check both interface sets in the specification tables.
Does the 02-SSC-4332 include SonicWall support?
Support is not included with an Appliance Only part number. SonicWall support and optional security subscriptions are sold separately, and Network Devices Inc. confirms the correct support option before the order is placed.
How is the SonicWall NSa 6700 02-SSC-4332 managed?
The NSa 6700 is managed through Network Security Manager (NSM), and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them. SonicWall includes centralized management and alerting as part of support, so NSM management needs an active support contract or security bundle.
What condition is the 02-SSC-4332 sold in, and what warranty applies?
Network Devices Inc. supplies the 02-SSC-4332 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
