AXIS P3935-LR RJ-45, 10 PCS NETWORK CAMERA

Accessories

Optional accessories
Lenses	• Lens M12 2.1 mm F1.8 IR: horizontal field of view 145° • Lens M12 3.6 mm F1.8 IR: horizontal field of view 87 • Lens M12 6 mm, F1.9 IR: horizontal field of view 56° • Lens M12 8 mm F1.8 IR: horizontal field of view 40°
Other	• AXIS T94D02S Curved Mount Bracket • Network coupler IP66 • Network cable coupler indoor

Specifications

Specifications	AXIS P3935-LR RJ-45 Network Camera
Camera
Image sensor	1/2.9” Progressive scan RGB CMOS
Lens	2.8 mm, F1.6
	Horizontal field of view: 110°
	Vertical field of view: 62°
	M12 mount, fixed iris
	See Optional accessories for exchangeable lenses
Day and night	Automatically removable infrared-cut filter
Minimum illumination	Color: 0.06 lux at 30 IRE F1.6
	B/W: 0.01 lux at 30 IRE F1.6, 0 lux with IR illumination on
	Color: 0.12 lux at 50 IRE F1.6
	B/W: 0.02 lux at 50 IRE F1.6, 0 lux with IR illumination on
Shutter speed	1/33500 s to 2 s
Camera angle adjustment	Pan: ±30°
	Tilt: 15-90°
	Rotation: ±175°
System on chip (SoC)
Model	ARTPEC-7
Memory	1 GB RAM, 512 MB Flash
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
	H.265 (MPEG-H Part 2/HEVC) Main Profile
	Motion JPEG
Resolution	1280x960 to 160x120
	1920x1080 to 160x90
Wide dynamic range	Forensic WDR
Frame rate	Up to 25/30 fps (50/60 Hz) in all resolutions
	45 fps in 720p
	Capture mode 2MP 1920x1080 (16:9) @25/30 fps
	Capture mode 1MP 1280x720 (16:9) @45 fps
Video streaming	Multiple, individually configurable streams in H.264, H.265 and
	Motion JPEG
	Axis Zipstream technology in H.264 and H.265
	Controllable frame rate and bandwidth
	VBR/ABR/MBR H.264/H.265
	Video streaming indicator
Multi-view streaming	Up to 8 individually cropped-out view areas
Image settings	Compression, brightness, sharpness, contrast, white balance, Forensic WDR, exposure control, exposure zones, fine-tuning of behavior at low light, rotation: 0°, 90°, 180°, 270° including Corridor Format, dynamic overlay, 20 individual polygonal privacy mask, mirroring of images, defogging, electronic image stabilization*
	Scene profiles: forensic, vivid, traffic overview
	*: Use this function only when the camera is directed to capture scenes outside of the vehicle
Pan/Tilt/Zoom	Digital PTZ, preset positions, guard tour, control queue
Audio
Audio streaming	Audio in, simplex
Audio encoding	AAC- LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz,
	G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, LPCM 48 kHz
	Configurable bit rate
Audio input/output	External microphone input or line input, built-in microphone
Network
Security	Password protection, IP address filtering, HTTPS*1 encryption, IEEE 802.1x (EAP-TLS)*2 network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, firmware with Long Term Support (LTS) firmware*2
	*1: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
	*2: In the LTS track for firmware upgrades, improvements are focused on cybersecurity and stability. New features are available in the firmware from the Active track
Supported protocols	IPv4, IPv6 USGv6, HTTP, HTTPS* , HTTP/2, TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
System Integration
Application Programming Interface	Open API for software integration, including VAPIX® and
	AXIS Camera Application Platform; specifications at axis.com
	AXIS Video Hosting System (AVHS) with One-Click Connection
	One-click cloud connection
	ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S and
	ONVIF® Profile T
Event conditions	Device status: above operating temperature, above or below
	operating temperature, below operating temperature, IP address
	removed, network lost, new IP address, shock detected, storage
	failure, system ready, within operating temperature
	Edge storage: recording ongoing, storage disruption
	I/O: manual trigger, virtual input
	MQTT subscribe
	Scheduled and recurring: scheduled event
	Video: average bitrate degradation, day-night mode, live stream
	open, tampering
Event actions	Day-night mode
	Defog
	Guard tours
	Upload images or video clips: FTP, HTTP, HTTPS, SFTP, email and
	network share
	Notification: HTTP, HTTPS, TCP and email
	Overlay text
	Preset positions
	Record video: SD card and network share
	SNMP trap messages
	WDR mode
	MQTT publish
Data streaming	Event data
Built-in installation aids	Pixel counter
Analytics
Applications	Included AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard AXIS Video Motion Detection, active tampering alarm*1 , blocked view detection*2 , shock detection, audio detection Support for AXIS Camera Application Platform
	*1: For detection of tampering attempts in static and non-crowded scenes.
	*2: For detection of tampering attempts in onboard environments.
General
Casing	IP66/67-, NEMA 250 4X- and IK10-rated aluminum casing,
	polycarbonate clear dome
Mounting	Inside vehicles and rolling stock
Sustainability	PVC free
Power	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
	IR illumination on: typical 6.6 W, max 11.8 W
Connectors	RJ45: male, 10BASE-T/100BASE-TX
	All connectors support PoE
	3.5 mm audio in connector, mono
	I/O 4-pin, 1 input, 1 output + 12 V DC/15 mA
IR illumination	M12: female, rugged, D-coded with rotatable coupling nut
	All connectors support PoE
	3.5 mm audio in connector, mono
	I/O 4-pin, 1 input, 1 output + 12 V DC/15 mA
Storage	Support for microSD/microSDHC/microSDXC card with UHS
	Speed Class U1
	Support for SD card encryption (AES-XTS-Plain64 256bit)
	Support for recording to network-attached storage (NAS)
Operating conditions	Normal, IR off: -40 °C to 55°C (-40 °F to 131°F)
	Normal, IR on: -40 °C to 45°C (-22 °F to 113°F)
	Maximum (intermittent): 70 °C (158 °F)
	Arctic Temperature Control: start-up at -40 °C (-40 °F)
	Humidity: 10-100% RH (condensing)
Storage conditions	(-40 °C to 65 °C (-40 °F to 149 °F)
Approvals	EMC
	EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,
	FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),
	VCCI Class A, RCM AS/NZS CISPR 32 Class A,
	KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2,
	IEC 62236-4, ECE R10 rev.06 (E approval), EN 50498
	Safety
	IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 45545,
	UN ECE R118, NFPA 130, IEC 62471, IS 13252
	Environment
	IEC/EN 61373 Category 1 Class B,
	IEC/EN 60529 IP66, IEC/EN 60529 IP67, parts of
	NEMA 250 Type 4X (ingress of water and gasket test),
	IEC/EN 62262 IK10,
	IEC 60721-3-5 Class 5M3 (vibration and shock),
	EN 50155:2017 OT2/ST2, IEC 60068-2-1, IEC 60068-2-2,
	IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78
	Network
	NIST SP500-267
Dimensions	Height: 49.4 mm (1.94 in), ø 110 mm (4.33 in)
Weight	RJ45: 400 g (0.88 lb)
Included accessories	Installation guide, Windows®
	decoder 1-user license, drill hole
	template, lens tool, Resistorx® L-key
Video management software	AXIS Companion, AXIS Camera Station, video management
	software from Axis’ Application Development
Languages	English, German, French, Spanish, Italian, Russian, Simplified
	Chinese, Japanese, Korean, Portuguese, Traditional Chinese

Properties

Properties	AXIS P3935-LR RJ-45 Network Camera

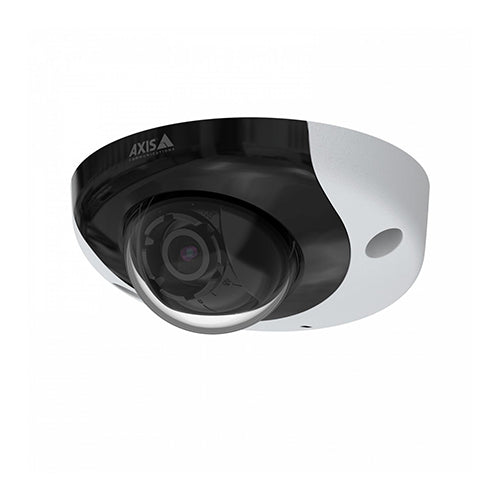

Description	The AXIS P3935-LR Network Camera is an advanced dome camera tailored for onboard surveillance, meeting industry standards like EN50155, EN45545, and NFPA 130. It excels in challenging lighting with Axis Lightfinder and Forensic WDR technologies. The camera features invisible IR LEDs for night vision, a vandal-resistant metal casing, a built-in microphone, and enhanced security features for comprehensive onboard monitoring.
Product Family	AXIS P3935-LR Network Camera
Product Type	Camera
