AXIS T8645 PoE+ Over Coax Compact Kit (01489-001)

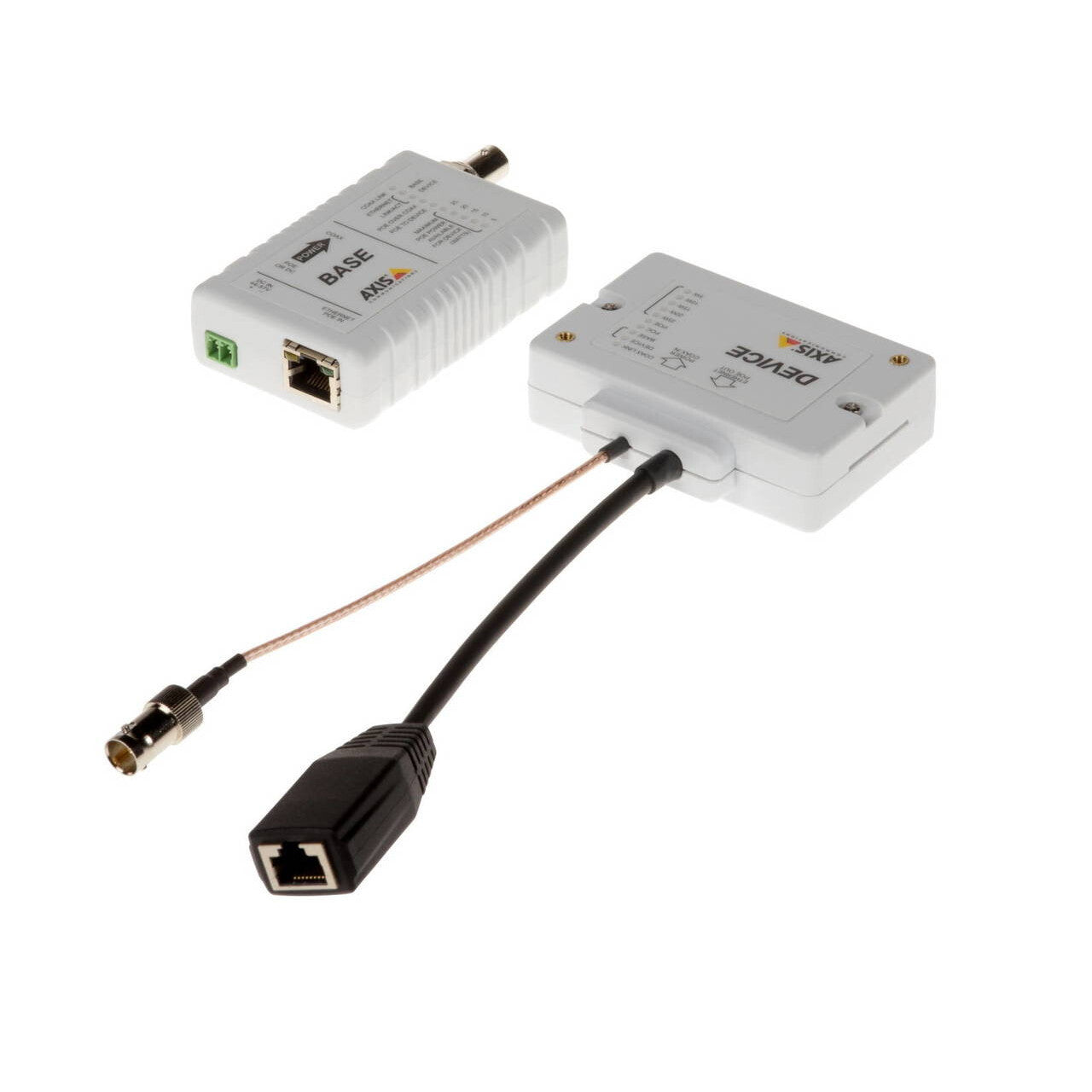

The AXIS T8645 PoE+ Over Coax Compact Kit offers an innovative solution for upgrading analog systems to IP without replacing coaxial cabling. This compact kit includes AXIS T8641 PoE+ Over Coax Base and AXIS T8643 PoE+ Over Coax Compact units, enabling high-speed data transfer and power delivery via existing coaxial infrastructure. With plug-and-play installation, integrated LED indicators, and compliance with IEEE 802.3af/at standards, this kit provides reliable and cost-effective network video product integration.

Key Features:

• Coaxial Cable Compatibility: Maintains existing coaxial cabling for IP migration.
• Power Over Ethernet: Supports PoE and PoE+ (IEEE 802.3at Type 2 Class 4).
• Compact Design: Fits into housings and back boxes for neat installations.
• Ease of Use: Plug-and-play installation with LED indicators for network and power status.
• Robust Performance: Data rates up to 100 Mbps symmetrical over coaxial cable (up to 500 m).
• Wide Operating Range: Operates in temperatures from -10°C to 50°C (14°F to 122°F).
• Environmental Responsibility: PVC-free construction and RoHS compliance.

Technical Specifications:

• Coaxial Input: BNC 75 Ohm
• Ethernet Input: Shielded RJ45, EIA 568A and 568B
• Power Supply: DC input (44–57 V) or PoE input
• Compliance: IEEE 802.3af, IEEE 802.3at, RoHS, WEEE
• Operating Environment: -10°C to 50°C (14°F to 122°F), humidity max. 85% RH
• Dimensions: AXIS T8641: 104 x 54 x 24 mm; AXIS T8643: 84 x 61.5 x 23 mm
• Weight: AXIS T8641: 0.2 lbs ; AXIS T8643: 0.2 lbs
