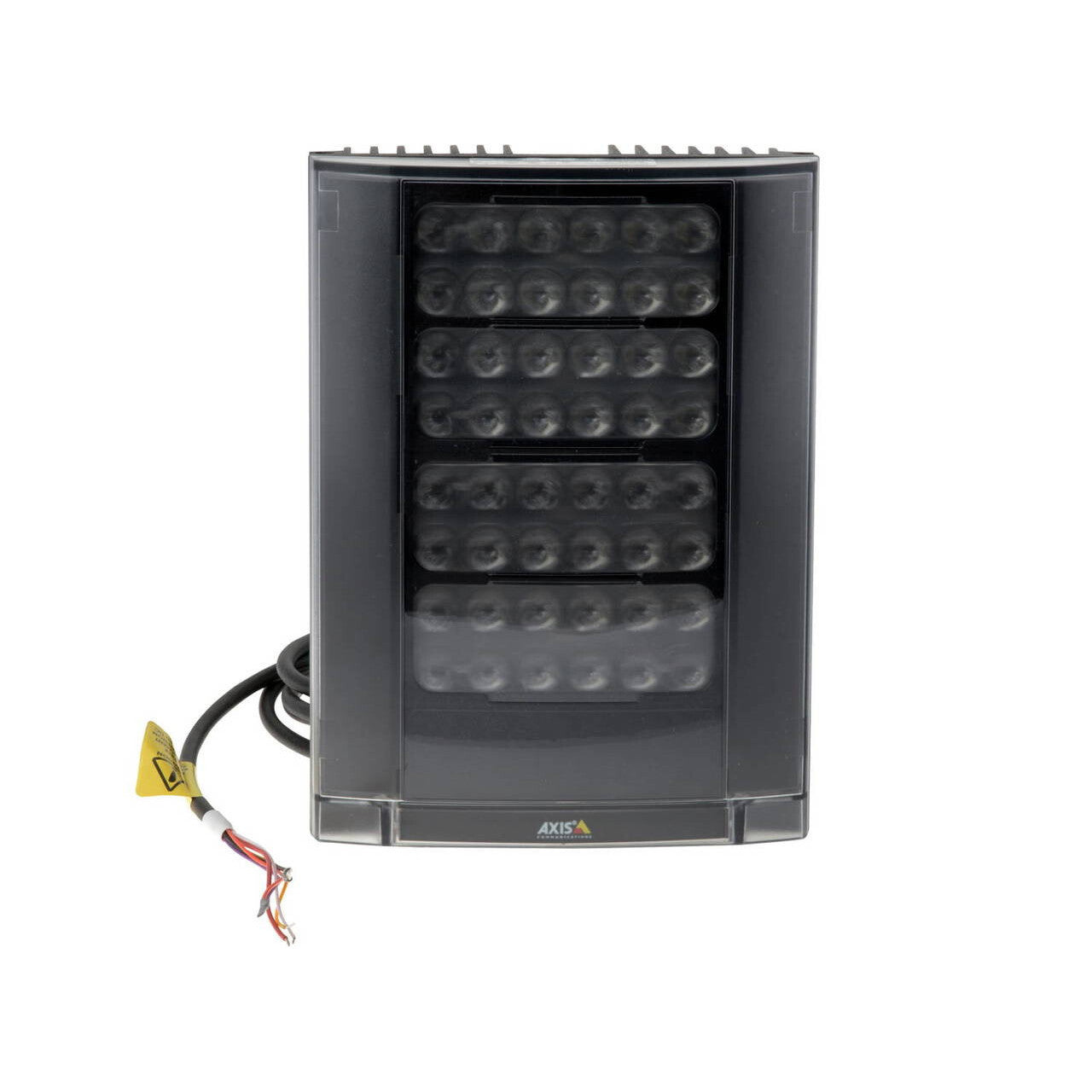

AXIS T90D40 IR-LED Illuminator (01214-001)

The AXIS T90D40 IR-LED Illuminator is an advanced lighting solution designed to improve the performance of AXIS network cameras in low-light and nighttime environments. Built with the latest LED technology, this illuminator provides optimized infrared coverage, reducing light wastage and preventing overexposure of foreground objects. It features interchangeable lenses that allow users to customize the illumination angle to match their camera’s field of view. With energy-efficient operation, flexible mounting options, and remote control capabilities, the AXIS T90D40 ensures reliable and adaptable surveillance lighting.

Key Features:

• Long-Range Illumination: Provides infrared coverage up to 500 meters (1640 feet) with a 10° lens.
• Adjustable Beam Angles: Includes interchangeable lenses for 10°, 35°, 60°, 80°, and optional 120° illumination.
• Energy Efficient: Low power consumption with adjustable power levels and telemetry control.
• Durable Construction: Built with aluminum and polycarbonate for enhanced durability.
• Versatile Mounting: Supports wall, ceiling, pole, and camera housing installations.
• Remote Control Support: Adjust settings easily via integrated push buttons or an optional remote control.
• Weatherproof Design: IP66-rated for reliable outdoor use in extreme temperatures (-50°C to 50°C).

Technical Specifications:

• Compatible Cameras: All AXIS cameras with infrared-cut filter
• Wavelength: 850 nm semi-covert
• Power Input: 24V AC/DC, 100W max
• Operating Temperature: -50°C to 50°C (-58°F to 122°F)
• Storage Temperature: -50°C to 70°C (-58°F to 158°F)
• Mounting Options: Wall, ceiling, pole, camera housing
• Ingress Protection: IP66-rated weatherproof casing
• Impact Protection: IK09-rated for high durability
• Dimensions: 180 x 277 x 75 mm (7 x 11 x 2.9 in)
• Weight: 3.1 kg (6.8 lb)
