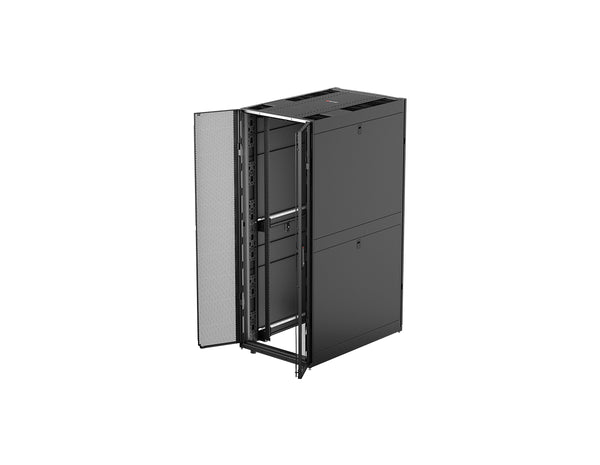

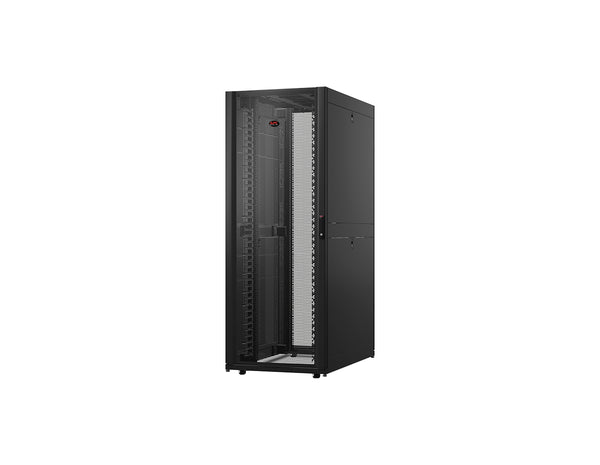

APC NetShelter SX Networking Rack Enclosure, 42U, Black, 1991H x 750W x 1200D mm, with Vertical Cable Managers (AR3340)

The APC AR3340 is a 42U networking rack enclosure designed to support high-density IT infrastructure with enhanced cable management and optimized airflow. This enclosure is equipped with vertical cable managers, a cable access roof, and the option to integrate a Side Airflow Duct Kit, ensuring effective cooling by separating cold intake and hot exhaust air for large switches and SAN directors.

With a static load capacity of 3750 lbs and a dynamic load capacity of 2250 lbs, the AR3340 provides robust support for critical equipment. Its adjustable mounting depth and 19-inch rack width make it suitable for a variety of network and server devices. The rack is compliant with UL 2416, UL 60950-1, and EIA-310E standards.

Key Features:

• Rack Capacity: 42U enclosure for networking and server equipment.
• Dimensions: Height: 78.39 in (199.1 cm), Width: 29.53 in (75 cm), Depth: 47.24 in (120 cm).
• Weight Capacity: Static load capacity of 3750 lbs (1701 kg); dynamic load capacity of 2250 lbs (1020.6 kg).

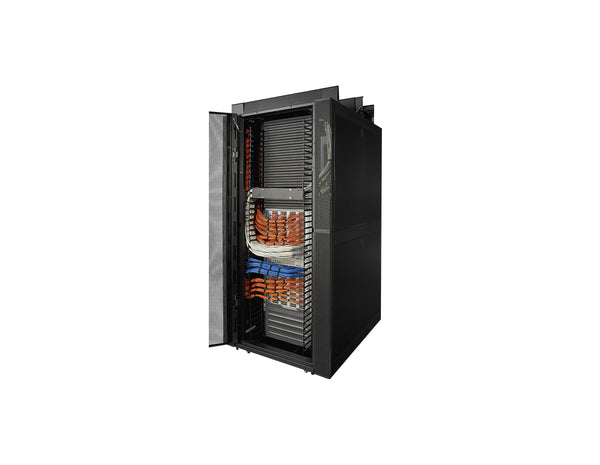

• Cable Management: Integrated vertical cable managers and a high-capacity cable access roof.
• Construction: Durable 14-gauge EIA mounting rails, 16 to 18-gauge steel panels.
• Mounting Depth: Adjustable between 11 in and 37.75 in (27.94 cm to 95.89 cm).
• Included Components: Pre-installed casters, leveling feet, keyed-alike doors and side panels, and mounting hardware.
• Compliance: Meets UL 2416, UL 60950-1, and EIA-310E standards.

Why Choose the APC AR3340?

The APC AR3340 is designed to enhance IT infrastructure management with flexible cable handling, secure access, and optimal airflow. Built for enterprise-grade data centers, it provides reliable performance and equipment protection for high-density installations.
