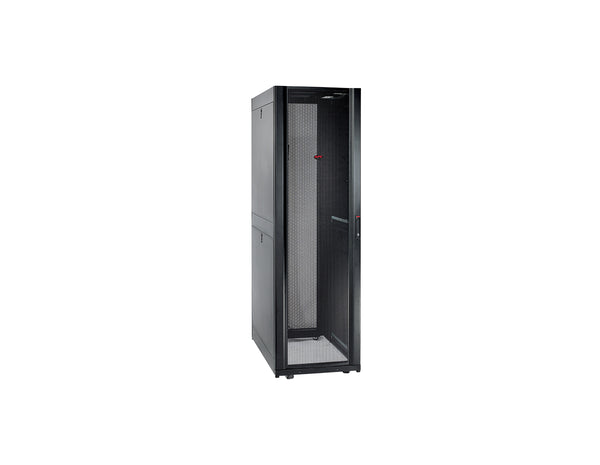

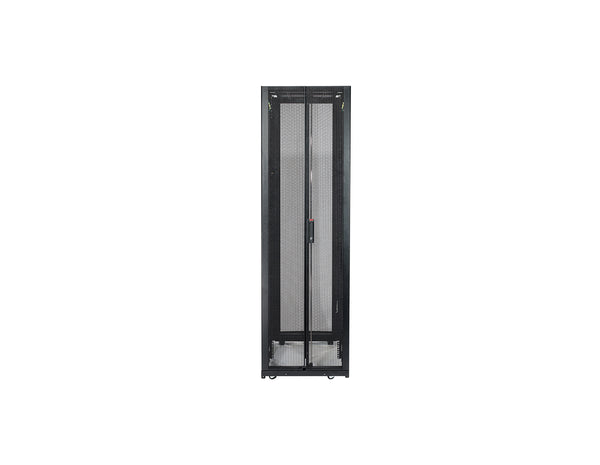

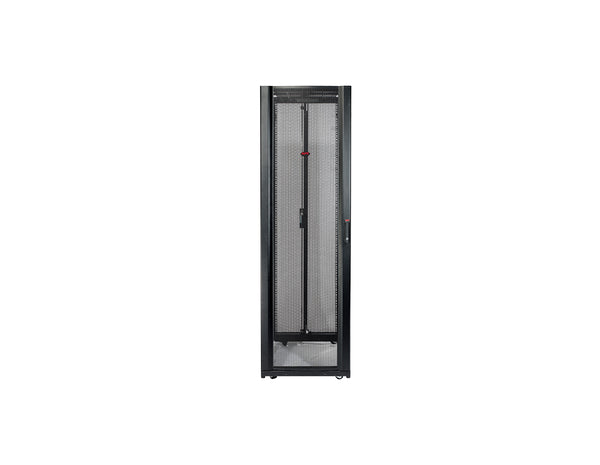

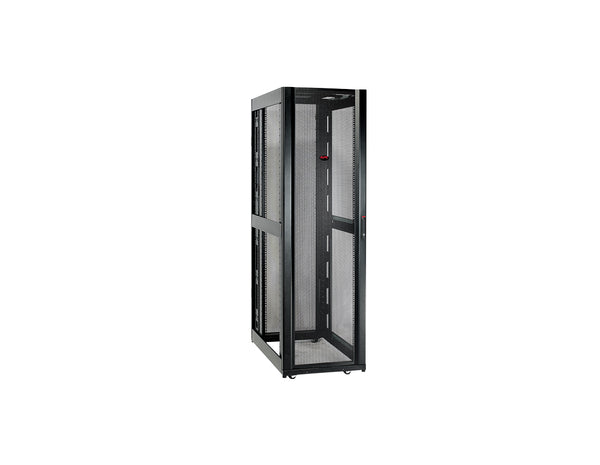

APC NetShelter SX 45U Server Rack Enclosure AR3105, 19-inch

The APC NetShelter SX 45U Server Rack Enclosure AR3105 is designed to provide secure, scalable, and efficient housing for servers and network equipment in enterprise environments. With a 45U rack height, 19-inch rack width, and a maximum mounting depth of 36 inches, this enclosure accommodates high-density IT deployments.

The enclosure supports a static load capacity of 3750 lbs (1701 kg) and includes key components such as baying hardware, keyed-alike doors and side panels, leveling feet, and pre-installed casters for mobility and stability. Built from durable 14, 16, and 18 gauge steel, the cabinet is optimized for airflow and cable management.

The AR3105 meets UL 2416, UL 60950-1, and EIA-310E standards, ensuring compliance with global safety and performance requirements. It is ideal for data centers, colocation facilities, and edge computing applications.

Key Features:

• Rack Units: 45U enclosure for large-scale IT equipment housing.
• Load Capacity: Static load capacity of 3750 lbs and dynamic load capacity of 2250 lbs.
• Dimensions: 83.62" height, 23.62" width, and 42.13" depth (2124 x 600 x 1070 mm).
• Material: Constructed with 14, 16, and 18 gauge steel for enhanced durability.
• Mounting Depth: Maximum depth of 36 inches with a minimum depth of 7.5 inches.
• Included Equipment: Baying hardware, keyed-alike doors, side panels, leveling feet, and pre-installed casters.
• Compliance: Certified to UL 2416, UL 60950-1, and EIA-310E standards.
• Weight: 302 lbs (137 kg).

Why Choose the APC NetShelter AR3105?

This rack enclosure is designed for efficient management of high-density IT equipment. Its robust construction, customizable features, and industry certifications make it a reliable solution for enterprise data center infrastructure.

Optimize your data center operations with the APC NetShelter SX 45U Server Rack Enclosure AR3105.
