APC NetShelter Wallmount Rack Cabinet, 13U, Vented Door, Double-Hinged, Server Depth (AR100HD)

The APC AR100HD is a 13U wall-mountable rack cabinet designed to optimize edge computing and network equipment deployment in space-constrained environments. It is ideal for retail, healthcare, and educational facilities. The double-hinged design allows full access to the rear of the rack during setup and maintenance. It features a reversible vented front door, providing airflow while minimizing interference with its surroundings.

This 19-inch rack supports up to 200 lbs (90.7 kg) of equipment and has a maximum mounting depth of 19 inches (48.26 cm). The cabinet comes fully assembled, includes wall-mounting hardware, and is compatible with optional accessories like a 120V fan tray and caster kit. The 16-gauge steel frame ensures durability, while APC Smart-UPS integration makes power management seamless.

The APC AR100HD complies with EIA-310E standards, ensuring compatibility with a wide range of IT and networking equipment.

Key Features:

• Rack Capacity: 13U wall-mountable rack for server and networking equipment.

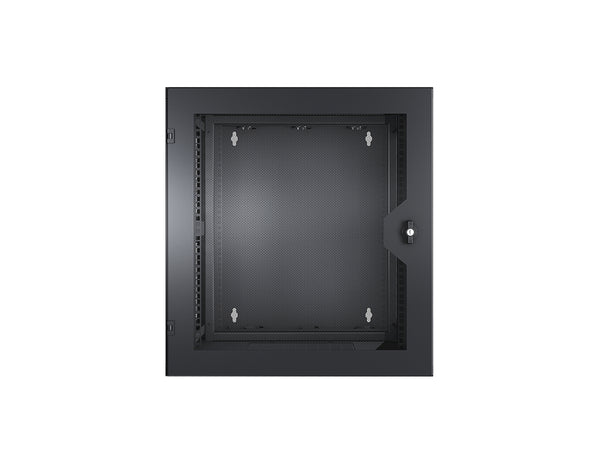

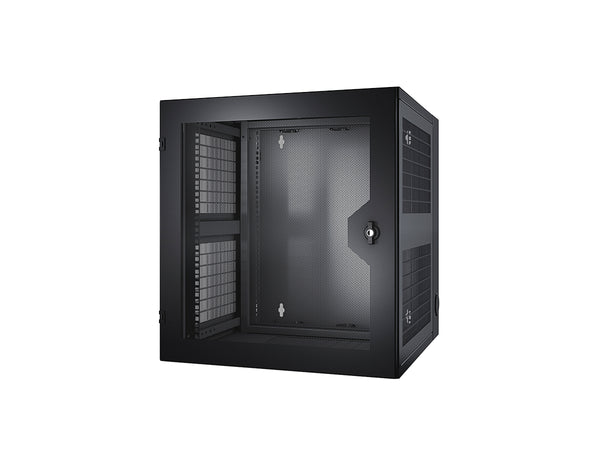

• Design: Double-hinged, vented, and reversible front door for easy access and airflow.
• Weight Capacity: Supports up to 200 lbs (90.7 kg) of equipment.
• Dimensions: Height: 26.10 in (66.3 cm), Width: 22.99 in (58.4 cm), Depth: 24.84 in (63.1 cm).
• Mounting Depth: Maximum depth of 19 inches (48.26 cm).
• Material: 16-gauge steel for enhanced durability.
• Included Accessories: Wall-mounting template, keys, and user manual.
• Compliance: Meets EIA-310E standards.

Why Choose the APC AR100HD?

The APC AR100HD offers space-saving, secure equipment housing for mission-critical applications. Its robust design, flexible access, and reversible airflow management make it ideal for edge computing deployments in commercial and institutional settings.
