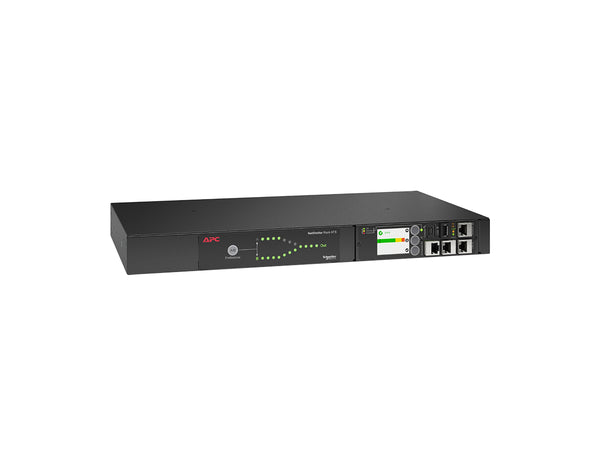

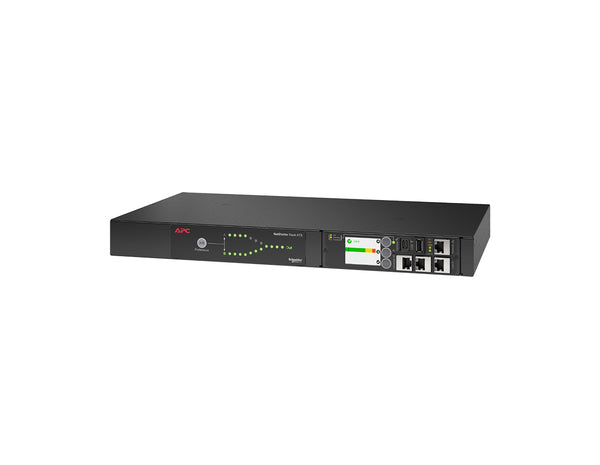

APC NetShelter Rack Automatic Transfer Switch AP4452A, 120V

The APC NetShelter Rack Automatic Transfer Switch AP4452A is a high-performance solution designed to provide seamless power transfer for critical equipment. With a 1U rackmount design, this automatic transfer switch supports dual 120V input sources with two NEMA L5-20 connections and offers ten NEMA 5-20R output sockets.

This switch delivers a maximum load capacity of 1920VA and operates at both 50Hz and 60Hz, making it ideal for data centers and enterprise environments. It includes dual 8 ft (2.4 m) input cords and mounting hardware for easy installation. The unit's lightweight build (9.7 lbs) and compact size ensure efficient use of rack space.

Certified to meet EN 55022 Class A and FCC Part 15 standards, the AP4452A provides reliable power transfer and protection for mission-critical devices.

Key Features:

• Load Capacity: 1920VA with 20A line rated current.
• Input and Output: 2 NEMA L5-20 input connections and 10 NEMA 5-20R output sockets.
• Rackmount Design: 1U rackmount form factor for efficient installation.
• Operating Frequency: 50/60 Hz, adaptable to various power setups.
• Dual Power Sources: Supports automatic transfer between two input sources for continuous uptime.
• Lightweight: Weighs 9.7 lbs for easy handling and installation.
• Standards Compliance: EN 55022 Class A and FCC Part 15 certified.
• Environmental Specifications: Operates between 23°F and 113°F with 0–95% relative humidity tolerance.

Why Choose the APC NetShelter AP4452A?

This automatic transfer switch offers reliable power continuity and seamless transfer between power sources, ensuring uptime for sensitive equipment. Its compact design, dual input support, and robust output capacity make it a trusted solution for data centers and enterprise networks.

Invest in the APC NetShelter Rack Automatic Transfer Switch AP4452A to maintain power stability and system reliability.
